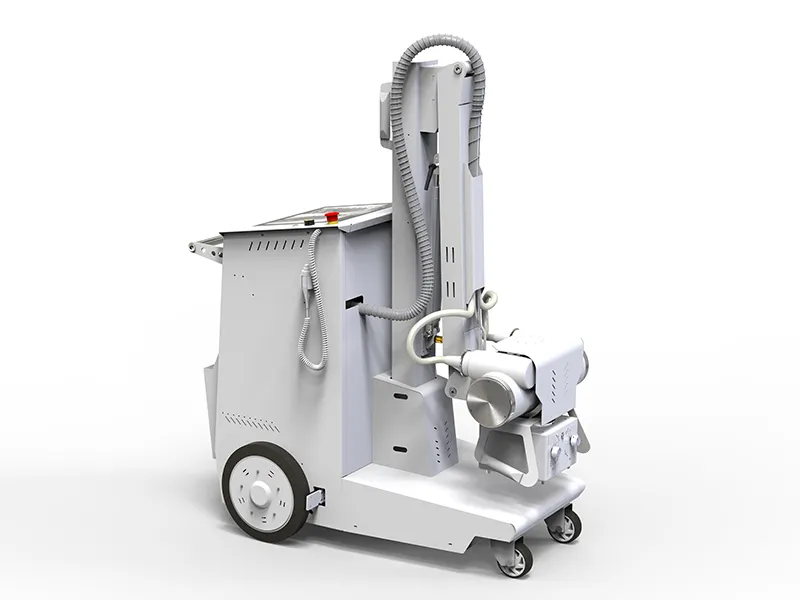

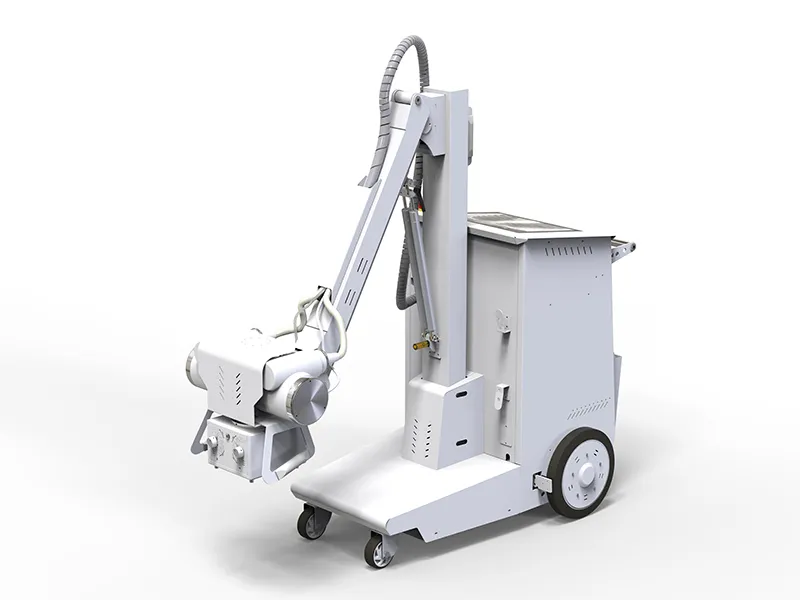

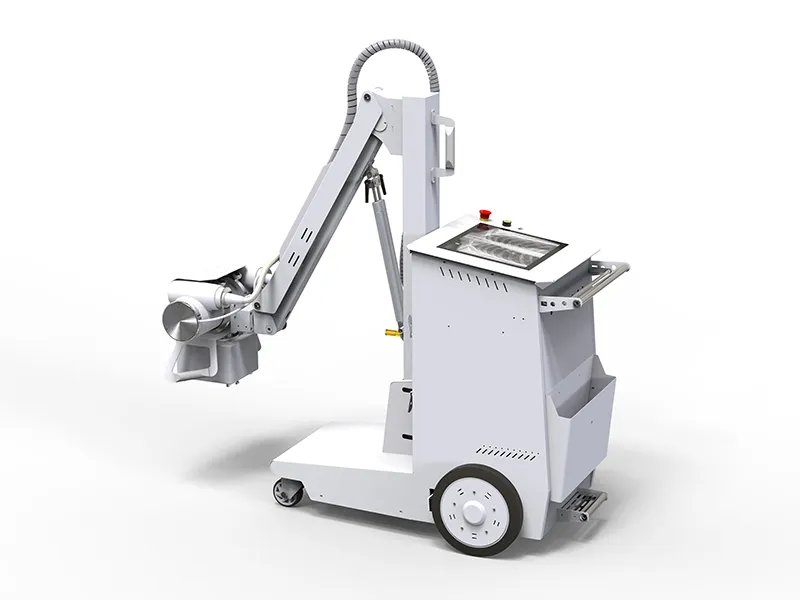

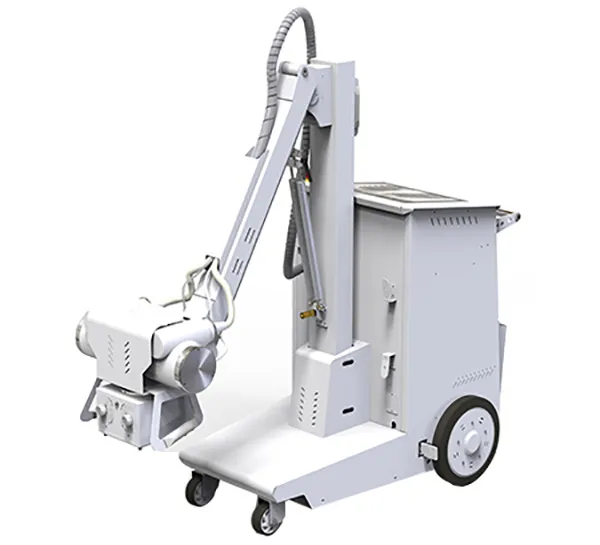

Mobile X-Ray Machine with 19-Inch Touch Screen

SHO-MDR Medical Imaging

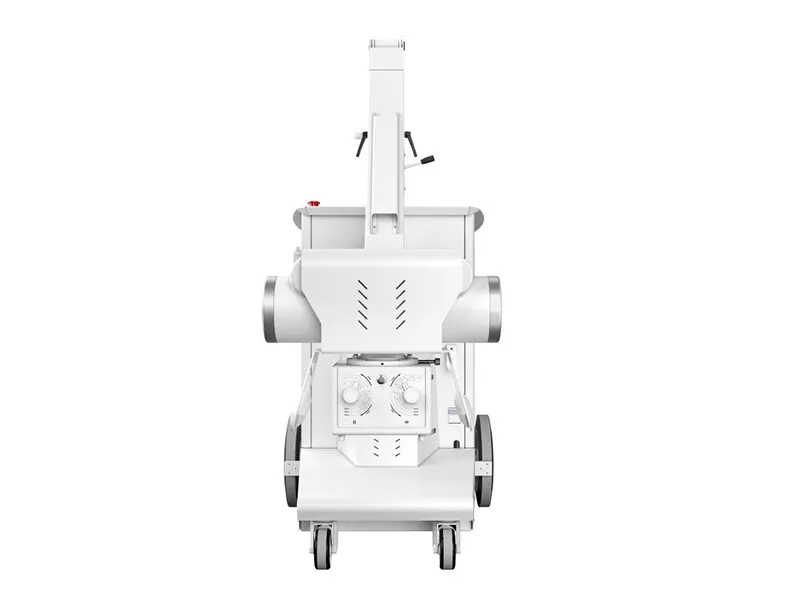

Mobile X-Ray Machine

Digital radiography system with 19-inch touch screen

Request a Quote

The mobile digital X-ray machine gives you exceptional image quality for head, limb, chest, lumbar, and abdominal imaging, ensuring clear and accurate diagnostics. With power options of 20kW & 200mA, 20kW & 320mA, and 32kW & 400mA, you can choose the right level of performance for your medical setting. Designed for ICU wards and emergency rooms, this system provides efficient, reliable imaging when and where you need it. Its mobility and ease of use make it a valuable asset in fast-paced medical environments.

Specifications

Ambient Conditions
Ambient temperature	10℃ to 40℃
Relative humidity	30-75%
Atmospheric	70-106 kPa

X-Ray Generator
Model	SHO-MDR01	SHO-MDR02	SHO-MDR03
Output power (kW)	20	20	32
Current (mA)	200	320	400
Voltage (kV)	40-125	40-125	40-125
mAs range (mAs)	0.5-320	0.5-320	0.32-400
Frequency (kHz)	≥100	≥100	≥100
Exposure time (s)	0.002-6.3
Focus size	0.6/1.2	0.6/1.2	1.0/2.0

X-Ray Tube
Anode type	Rotating Anode
Focal Spot value	1.0 mm / 2.0mm
Power of focal spot	21 kW／42.5 kW
Maximum voltage	125 kV
Revolving speed of anode	2800 rpm
Inherent filtration	1.5 mmAl
Anode heat storage capacity	100 kJ (140 kHU)
Heat storage capacity	900 kJ
Anode angle	16°
Maximum anode heat dissipation	475 W

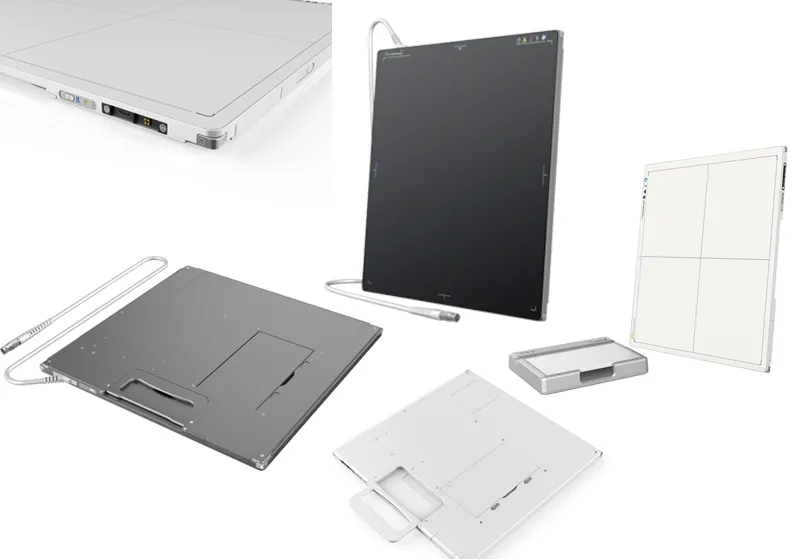

X-Ray Detector (Flat Panel Detector)
Type	Amorphous Silicon WIFI connection
Scintillator	Cesium Iodide
Active Area	17×17 inch (43×43 cm)
Active Pixel	3072*3072
Pixel Pitch	139 μm
A/D Conversion	16 bits
DQE	≧70%
Spatial Resolution	34Lp/cm
Acquisition time	≤ 2 s
AED function	Equipped

Collimator
Type	Manual Collimator
Max. Window	440×440mm (SID=100 cm)
Lamp	AC/DC 24 V, 5 W
Lamp timer	Automatic illumination with timer for lamp (30 s)
Inherent filtration	1.0mmAl
Illuminant	LED

Digital Image Workstation
Display size	17 inch LCD touch screen
Display screen Maximum resolution	1280*1024
CPU	≥2.0 GHz
Memory	≥8 GB
HDD	≥500 GB
Operation System	64 bit Windows operation system
DICOM3.0	Query for integration with any PACS
Functions	Patient registration: acquisition, find the patient data, to prepare for the photography Radiographic examination: setting system parameters, exposure photography and get the image Images display, image analysis, image processing and output Data management: managing patient data, leading in, leading out , batch file, etc in accordance with DICOM3.0

X-Ray Imaging

Head radiograph

Limb radiograph

Abdominal radiograph

Lumbar radiograph

Chest radiograph

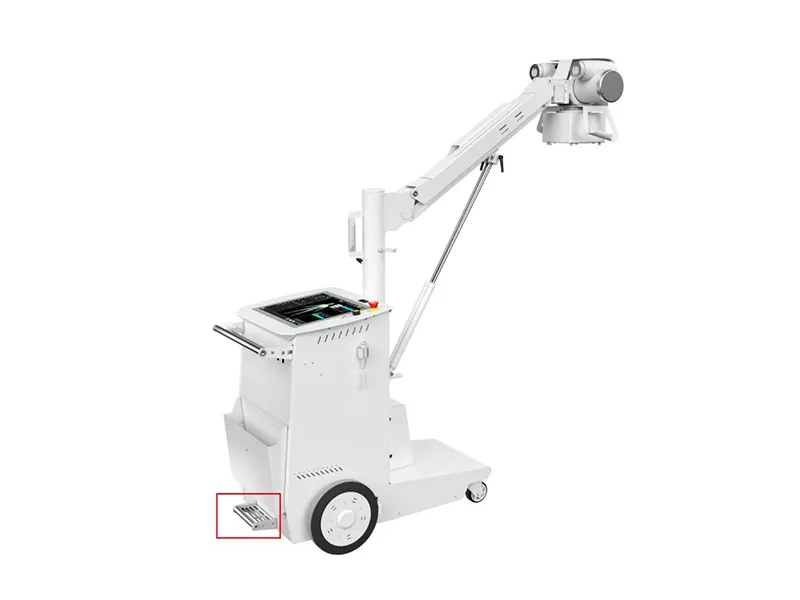

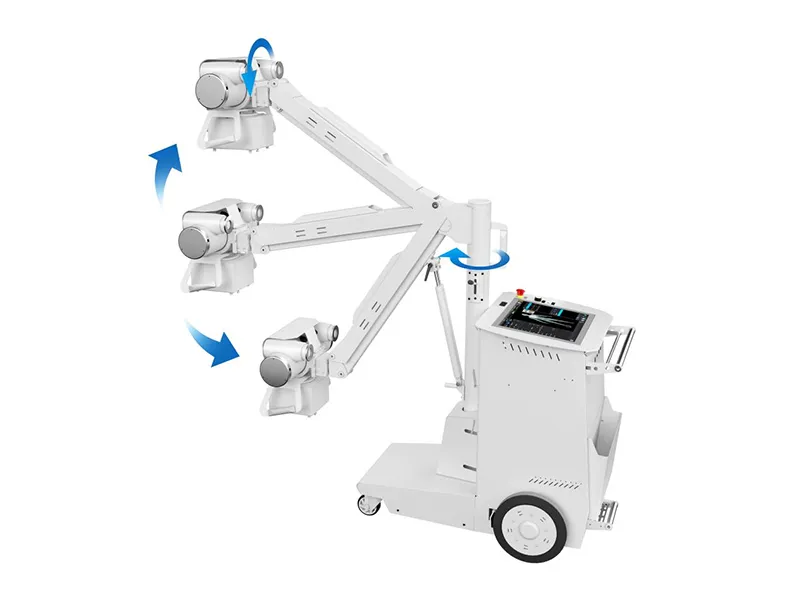

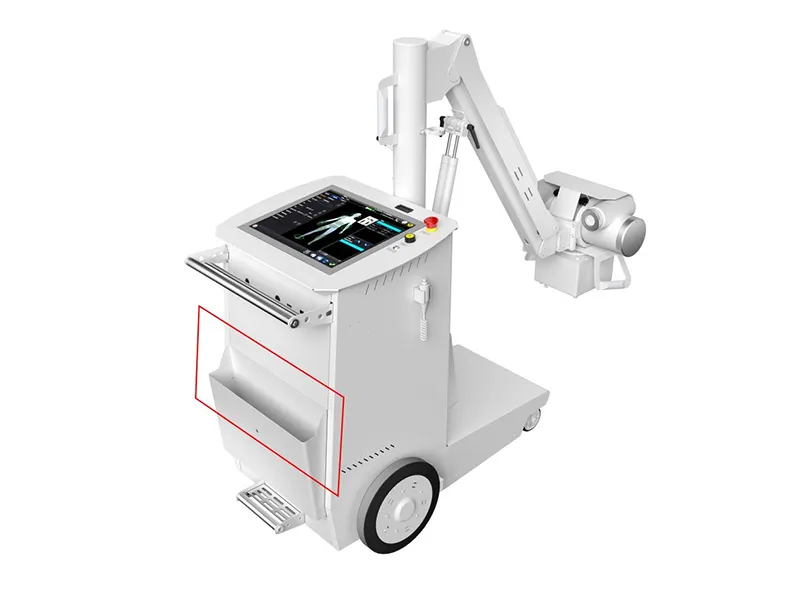

Main Parts

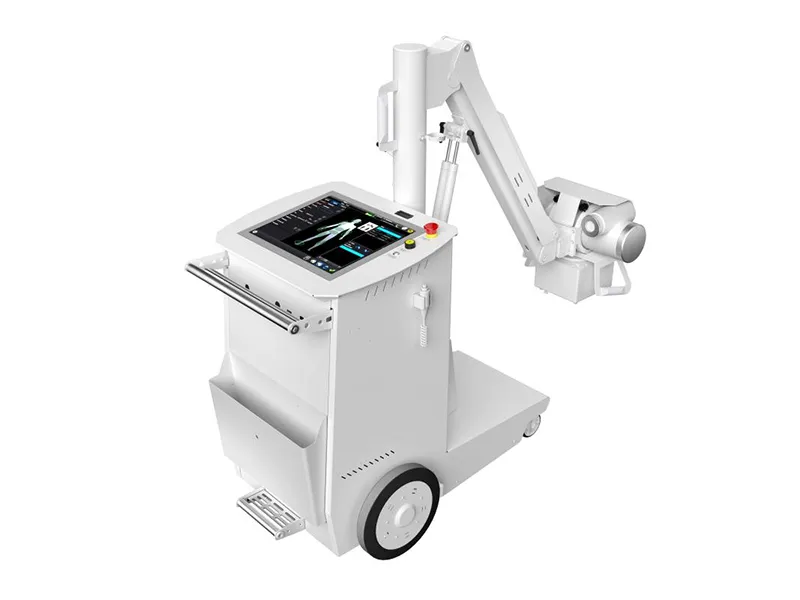

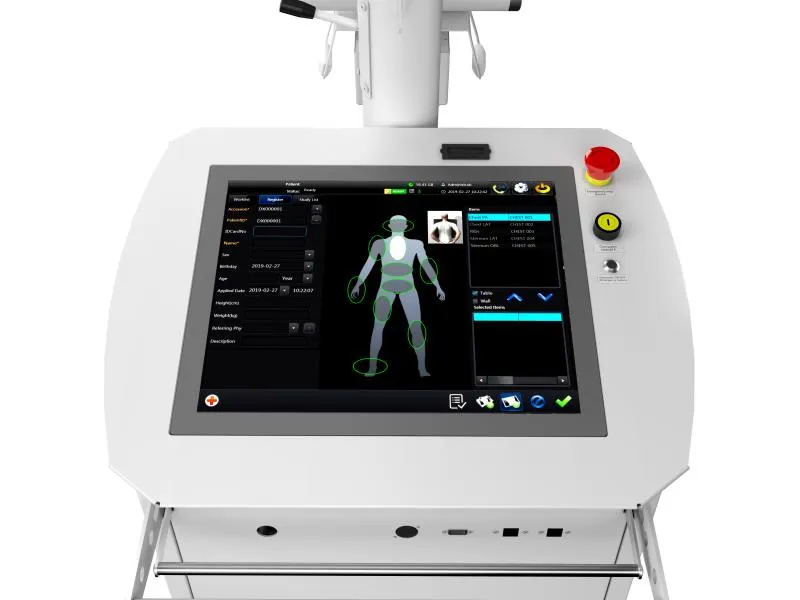

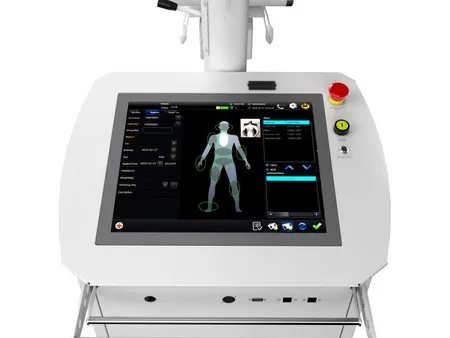

Integrated Intelligent Computer System with 19-Inch Touchscreen Display
