U-Arm X-Ray Machine

SHO-UDX01 Medical Imaging

U-Arm X-Ray Machine

Digital radiography system with motorized swivel arm for simple patient positioning
Request a Quote

The U-arm digital X-ray machine gives you high-quality imaging for head, chest, abdominal, lumbar, and limb examinations. Designed for versatility, it supports PA, LAT, and clinical static imaging, ensuring precise and reliable diagnostics for a variety of medical applications.

With its advanced digital image acquisition system, this machine provides exceptional image clarity while being simple and easy to operate. Whether you need it for routine diagnostic exams or specialized imaging, it offers multiple power options, 32kW & 400mA, 50kW & 630mA, 65kW & 800mA, and 80kW & 1000mA, so you can choose the best fit for your facility.

U-Arm X-Ray Machine
U-Arm X-Ray Machine
U-Arm X-Ray Machine
U-Arm X-Ray Machine
Specifications
Ambient Conditions
Ambient temperature 10℃ to 40℃
Relative humidity 30-75%
Atmospheric 70-106 kPa
X-Ray Generator
Model SHO-UDX01 Series
Output power (kW) 32 50 65 80
Current (mA) 10-400m 10-630 10-800 10-1000
Voltage (kV) 40-150 40-150 40-150 40-150
mAs (mAs) 0.1-400 0.1-630 0.1-800 0.1-1000
Exposure time (ms) 1-6300
Focus size 1.0/2.0 0.6/1.2 0.6/1.2 0.6/1.2
APR program Equipped
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.
X-Ray Tube
Anode type Rotating Anode
Focal Spot value 0.6 mm / 1.2 mm
Maximum voltage 150 kV
Revolving speed of anode 2800 rpm
Inherent filtration 1.0 mmAl
Anode heat storage capacity 300 kHU
Maximum cooling rate of anode 870 W
Housing heat storage capacity 900 kJ
X-ray detector (Iray brand Flat Panel Detector)
Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17×17 inch (43×43 cm)
Active Pixel 3072×3072
Pixel Pitch 139 um
A/D Conversion 16 bits
DQE ≧ 70%
Spatial Resolution 36 lp/cm
Acquisition time ≤ 2 s
Collimator
Type Manual Collimator
Max. Window 440×440 mm (SID=100 cm)
Lamp AC/DC 24 V, 5 W
Lamp timer Automatic illumination with timer for lamp (30 s)
Inherent filtration 1.0 mmAl
Illuminant LED
Grid
Densities 40 LP/CM
Ratios 10:1
Size 18”×18”
Focal distance 130 cm
Movement
Tube stand
U Arm rotation range -15° to＋105°
U Arm vertical travel 1200 mm
SID range 1000-1800 mm
Detector rotation range ±45°
Mechanism control 9.7’’ touch screen & remote controller
Workstation
Monitor 23’’ LCD Dell brand
CPU ≥ 2.8 GHz
Memory ≥ 4 GB
HDD ≥ 1 TB
DICOM3.0 Query for integration with any PACS
X-Ray Imaging
Head radiograph
Head radiograph
Limb radiograph
Limb radiograph
Abdominal radiograph
Abdominal radiograph
Lumbar radiograph
Lumbar radiograph
Chest radiograph
Chest radiograph
Main Parts

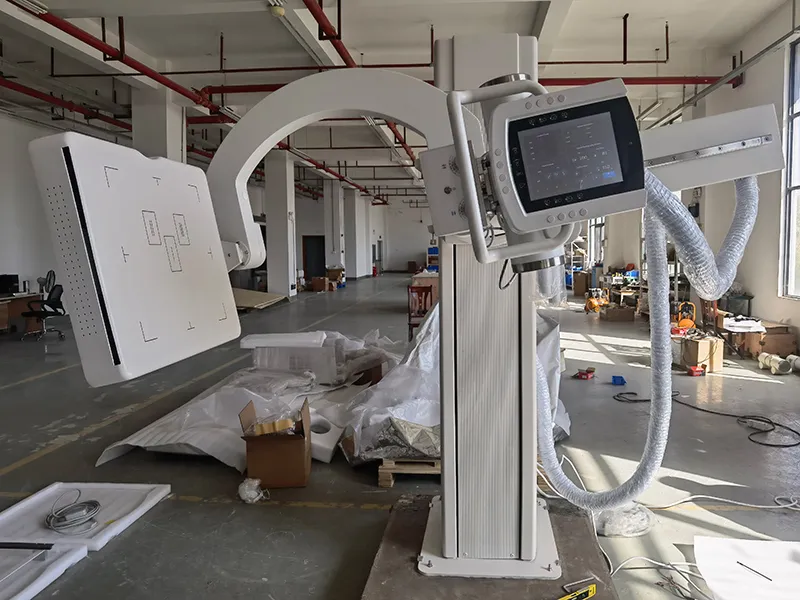

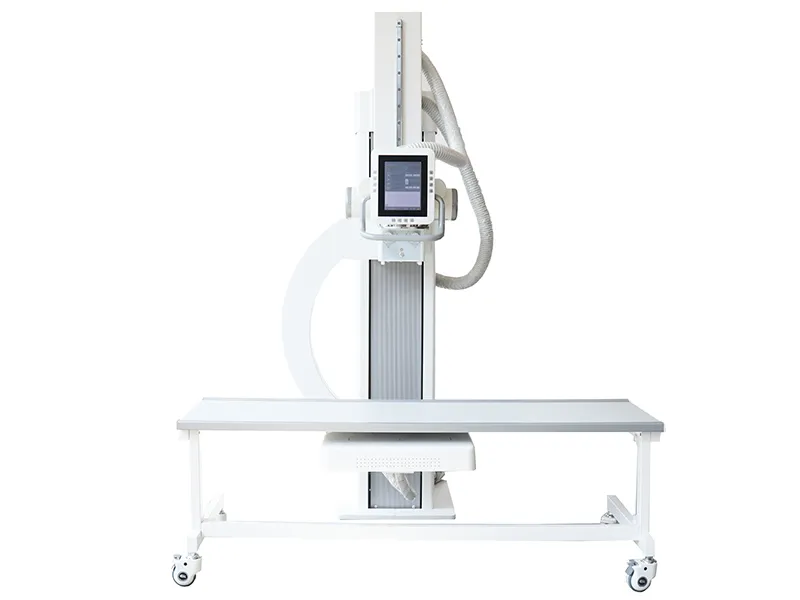

U-Arm
U-Arm

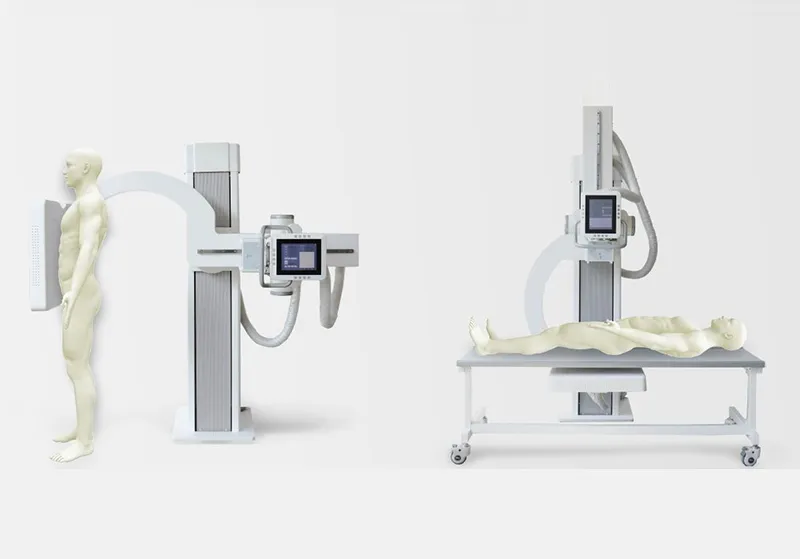

Supports a full range of diagnostic procedures, from supine examinations to standing chest X-rays.

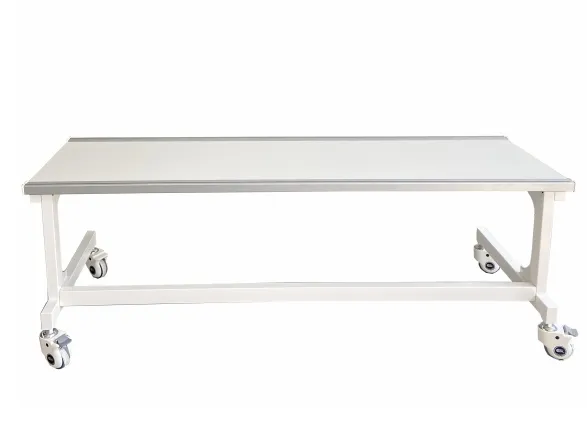

Movable Radiographic Table
Movable Radiographic Table

Designed to accommodate patients weighing up to 150 kg.

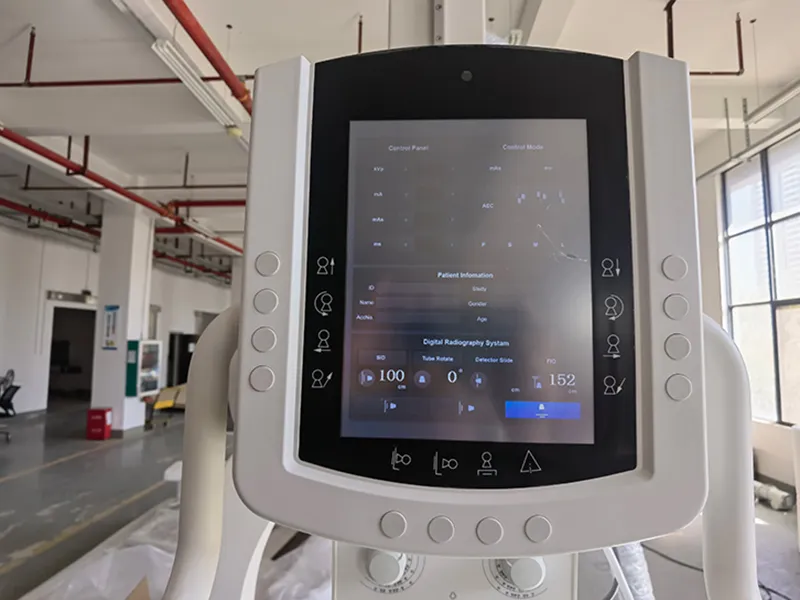

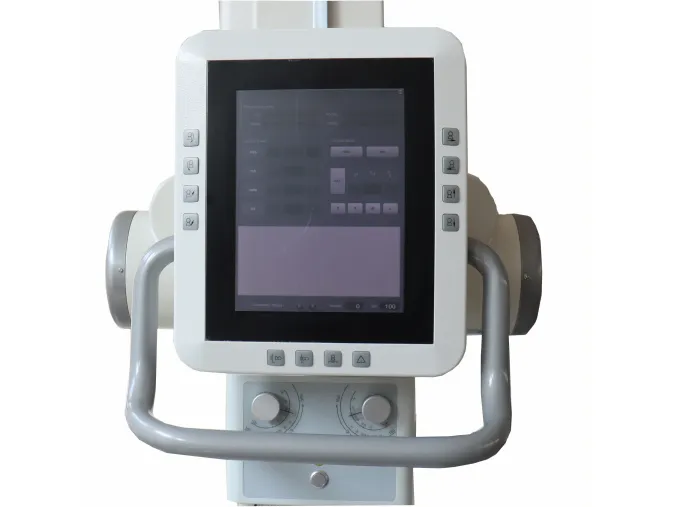

Operating Control Panel
Operating Control Panel

Features a 9.7-inch LCD color touchscreen for easy exposure parameter adjustments and body position selection

High-Voltage Generator
High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

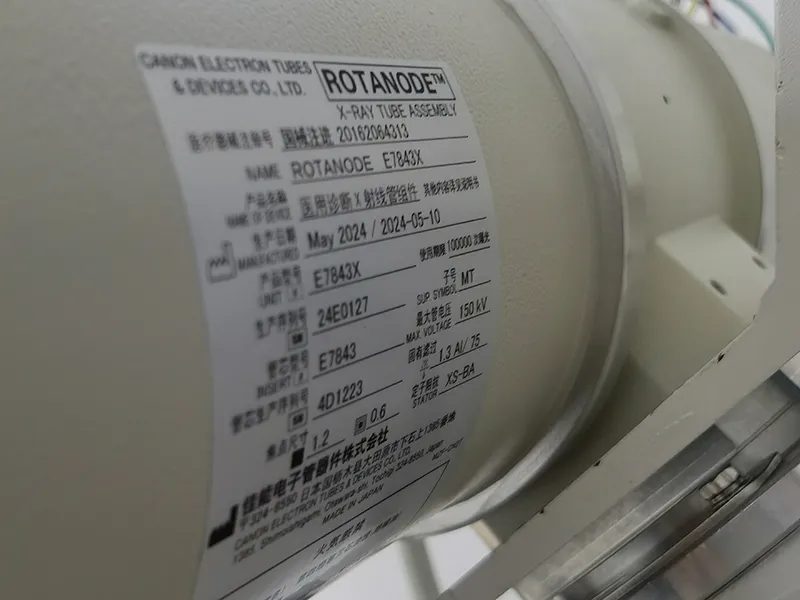

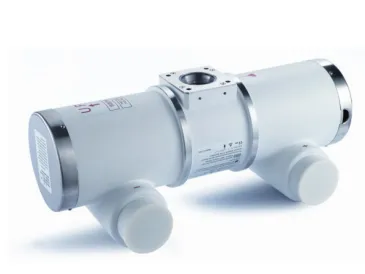

X-Ray Tube
X-Ray Tube

Optional TOSHIBA tube available for enhanced imaging performance.

High-Voltage Generator

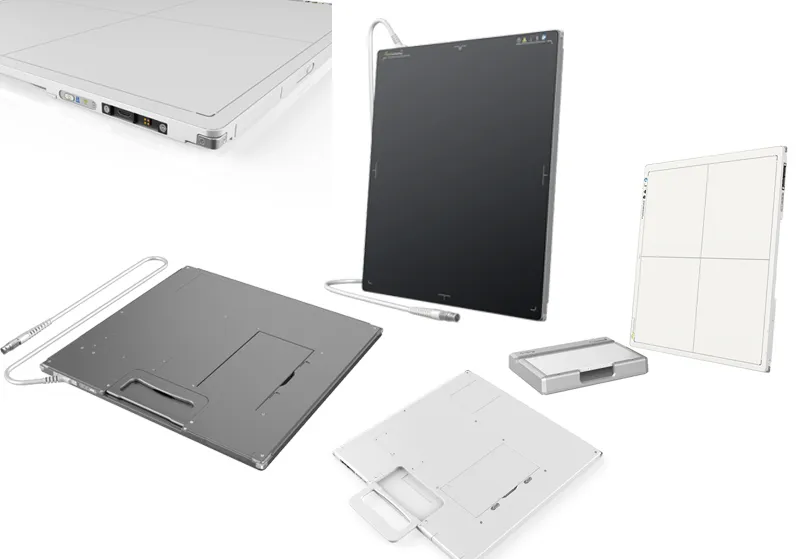

Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in both wired and wireless options. The wireless FPD includes a dedicated battery charger, and the image acquisition software is also supplied by Iray.

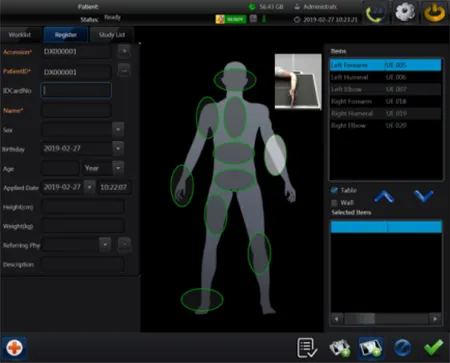

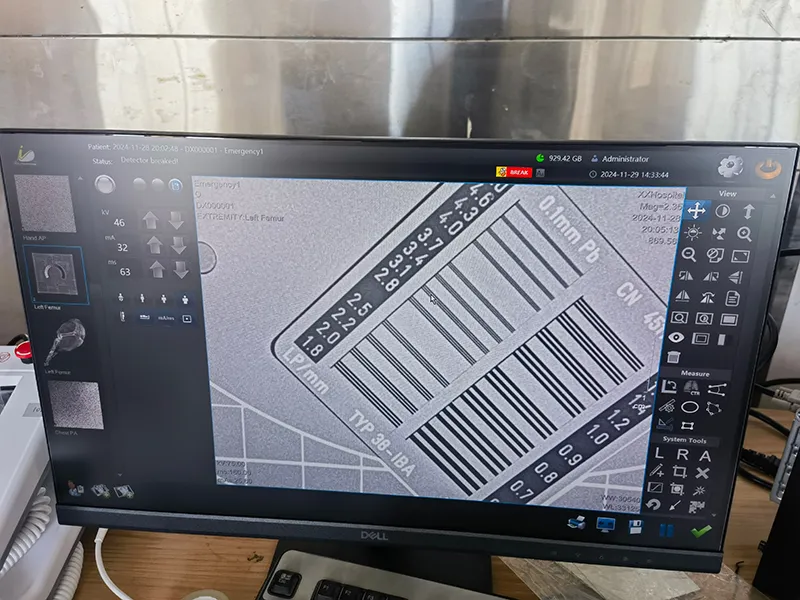

Iray Image Acquisition Software
Iray Image Acquisition Software

User-friendly interface for seamless operation.

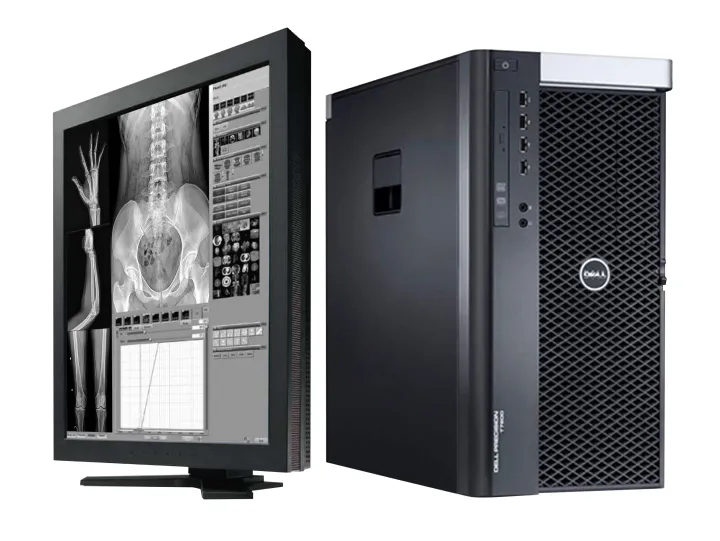

Dell 23-Inch Desktop Workstation
Dell 23-Inch Desktop Workstation

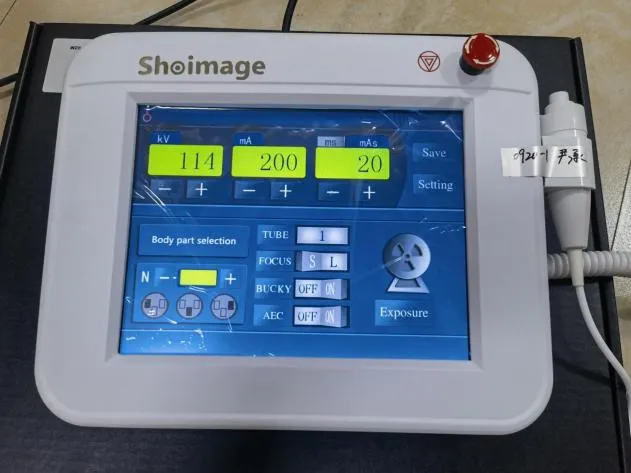

10.4-Inch Touchscreen Exposure Control Panel
10.4-Inch Touchscreen Exposure Control Panel
