SHO-DDR02 Medical Imaging

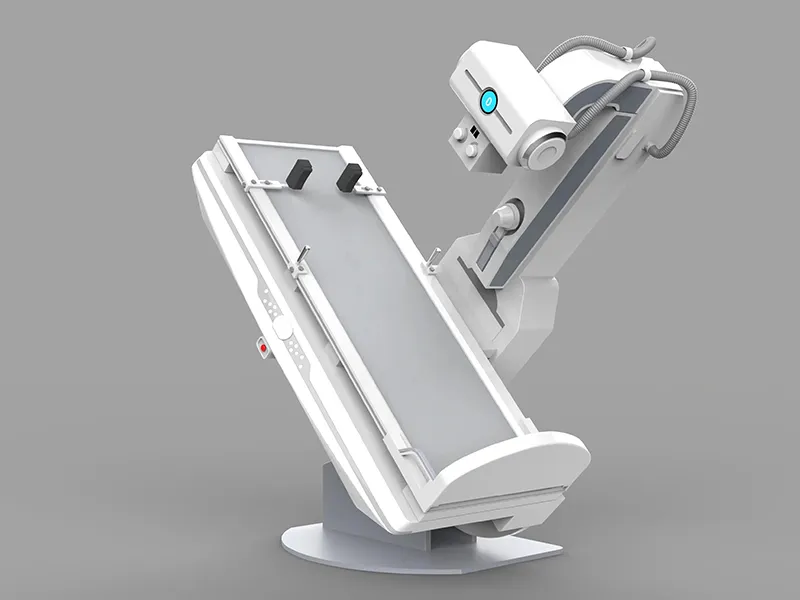

Digital Gastrointestinal Machine

Request a Quote

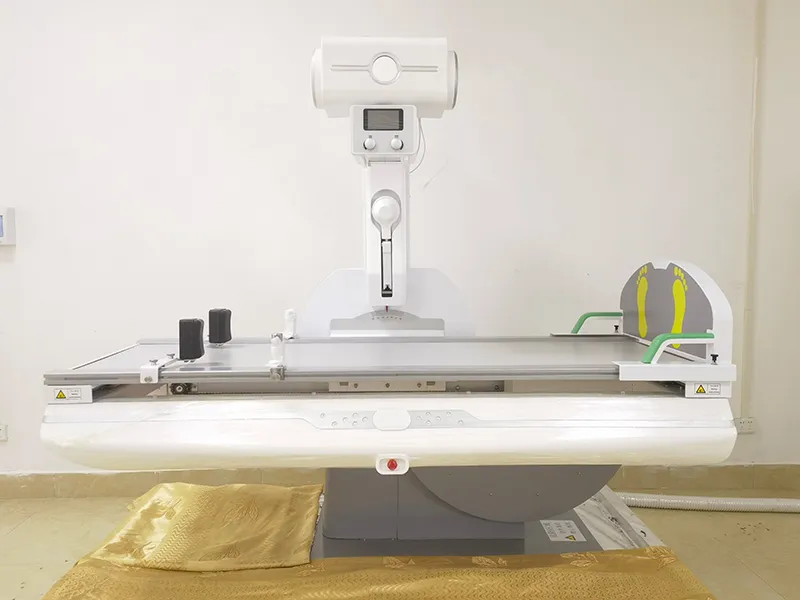

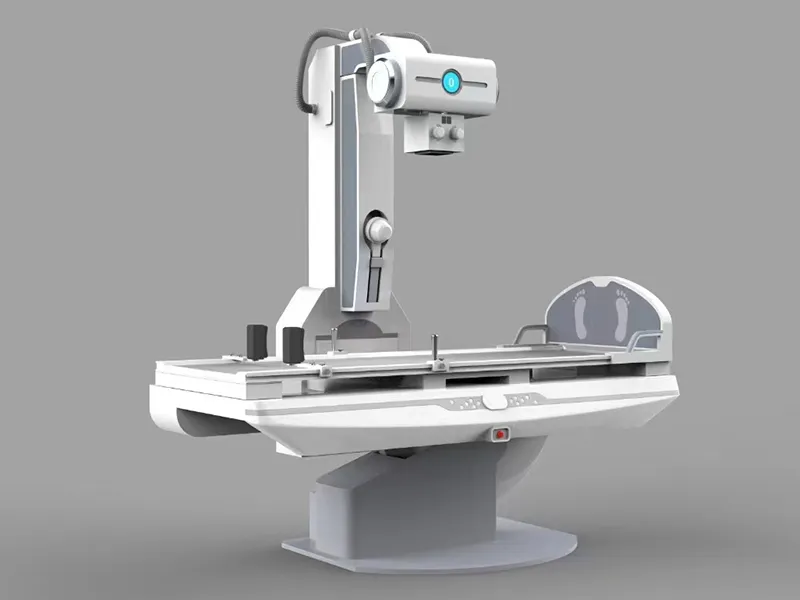

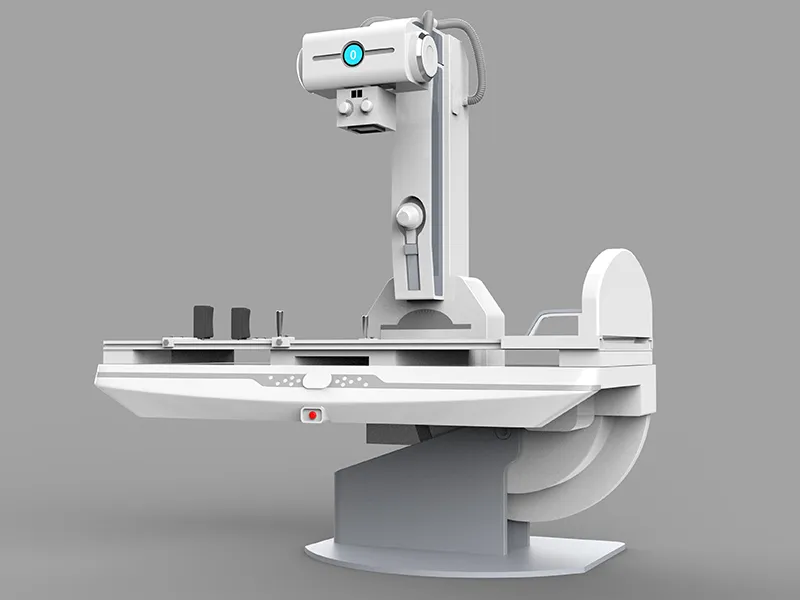

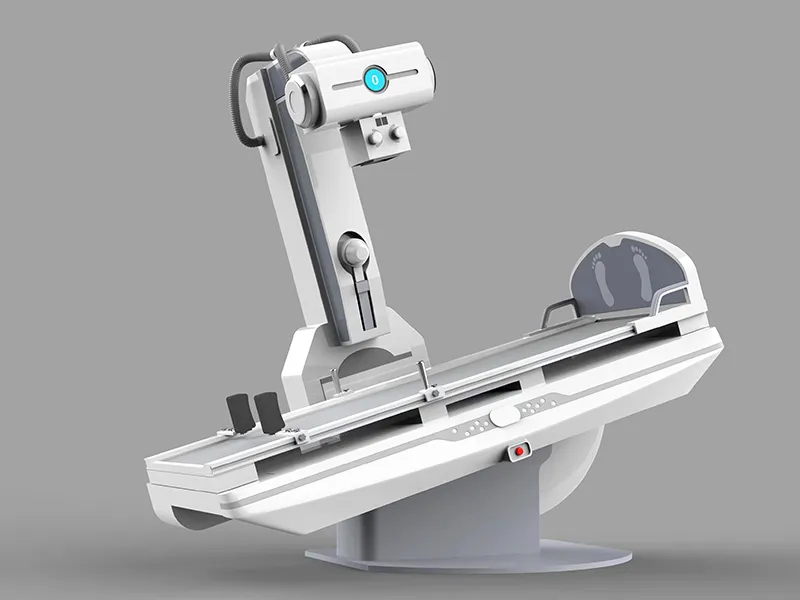

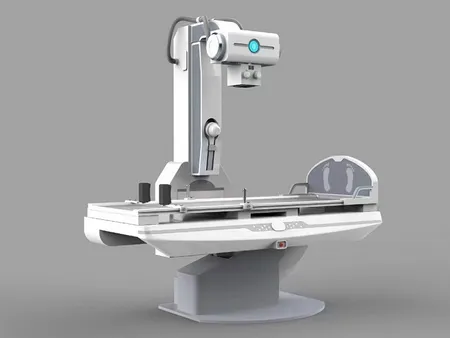

The digital gastrointestinal machine is designed for high-performance, long-duration diagnostics, making it ideal for gastrointestinal examinations and fluoroscopy procedures. With its high-frequency inverter and high-voltage generator, you get a constant and stable DC output, ensuring clear and consistent imaging throughout every procedure. Equipped with a dynamic flat panel detector, this system allows for direct digital radiography and fluoroscopy in multiple positions. The high-density grid further enhances X-ray quality, while its low-dose fluoroscopy design provides safe and reliable imaging for gastrointestinal disease diagnosis.

This compact and versatile digital gastrointestinal machine supports radiography, fluoroscopy, stomach exams, and gastrointestinal imaging, giving you a complete diagnostic solution. Its wide-range movement and automatic DR functionality reduce patient repositioning, making your workflow smoother and more efficient.

Specifications
Ambient Conditions
  • Ambient temperature: 10℃ to 40℃
  • Relative humidity: 30-75%
  • Atmospheric: 70-106 kPa
X-Ray Generator
  • Model: SHO-DDR01 Series
  • Output power (kW): 50, 65, 80
  • Current (mA): 10-630, 10-800, 0-1000
  • Voltage (kV): 40-150, 40-150, 40-150
  • mAs (mAs): 0.1-630, 0.1-800, 0.1-1000
  • Exposure time (ms): 1ms-6300
  • Focus size (mm): 0.6/1.2
X-Ray Tube
  • Anode type: Rotating Anode
  • Focal Spot value: 0.6 mm / 1.2 mm
  • Maximum voltage: 150 kV
  • Revolving speed of anode: 2800 rpm
  • Inherent filtration: 1.0 mmAl
  • Anode heat storage capacity: 300 kHU
  • Maximum cooling rate of anode: 870 W
  • Housing heat storage capacity: 900 kJ
X-Ray Detector (Iray Brand Flat Panel Detector)
  • Type: Amorphous Silicon
  • Scintillator: Cesium Iodide
  • Active Area: 17×17 inch (43×43 cm)
  • Active Pixel: 3072×3072
  • Pixel Pitch: 139 um
  • Limiting resolution: 36 Lp/cm
  • Data acquisition time: ≤2s

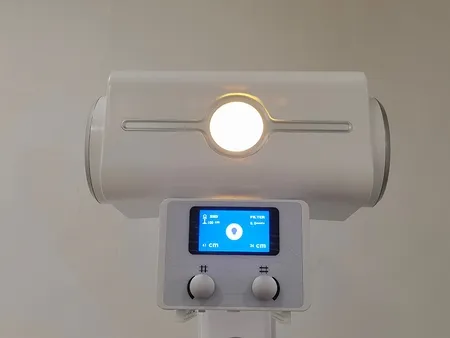

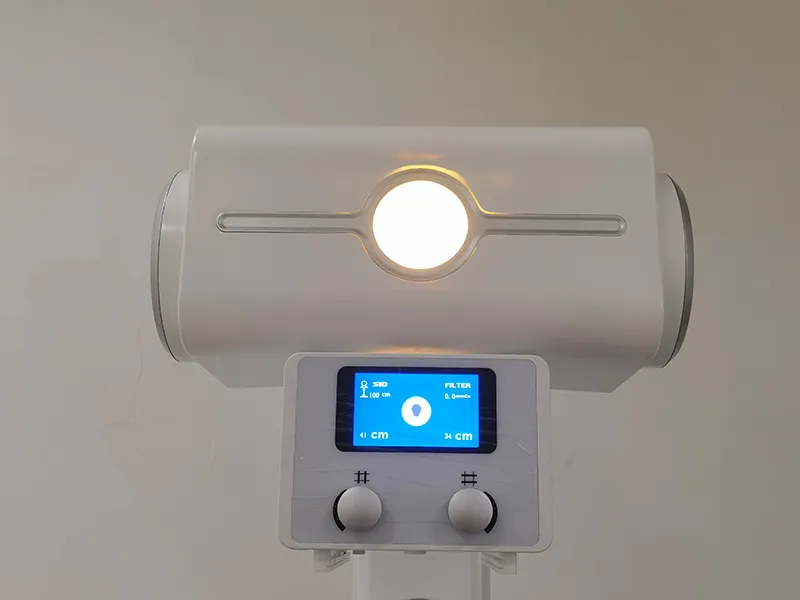

Collimator
  • Type: Electric and multileaf collimator
  • Power: 150 W; 24 VAC 1
  • Lamp timer: Automatic illumination with timer for lamp (30 s)
  • Filtration: 1.2 mmAL

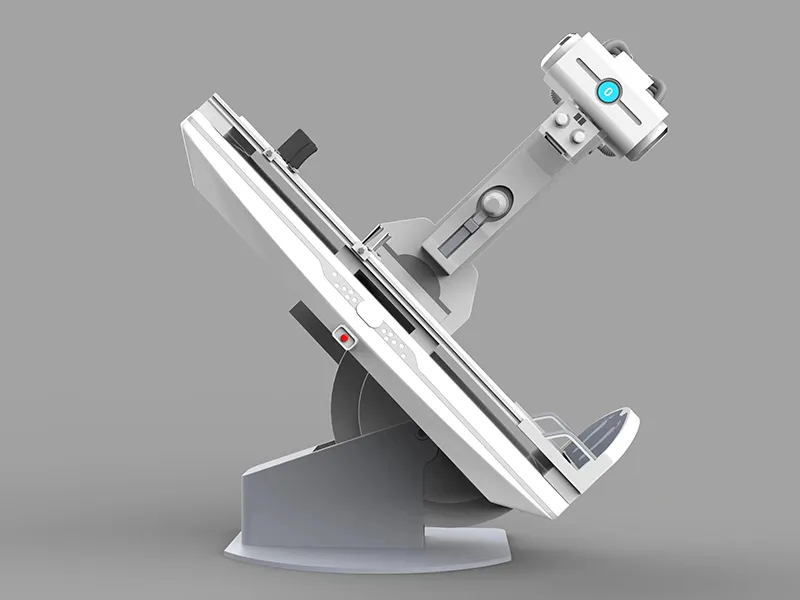

Mobile Patient Table
  • Type: Table for gastrointestinal imaging
  • Tabletop lateral movement: 250 mm
  • Rotating range: -30° to +30°
  • Height of bed surface: 950 mm
  • Bed bearing weight: 135 kg
  • Bed rotation angle range and deviation: +90° to 0° to -20°
Mechanical movement
  • SID: 1000-1800 mm
  • Column lateral movement range: 0-1000 mm
Workstation
  • Monitor: 23’’ LCD Dell brand
  • CPU: ≥2.8 GHz
  • Memory: ≥4 GB
  • HDD: ≥1 TB
  • DICOM3.0: Query for integration with any PACS
  • Functions: Import/export function
X-Ray Imaging

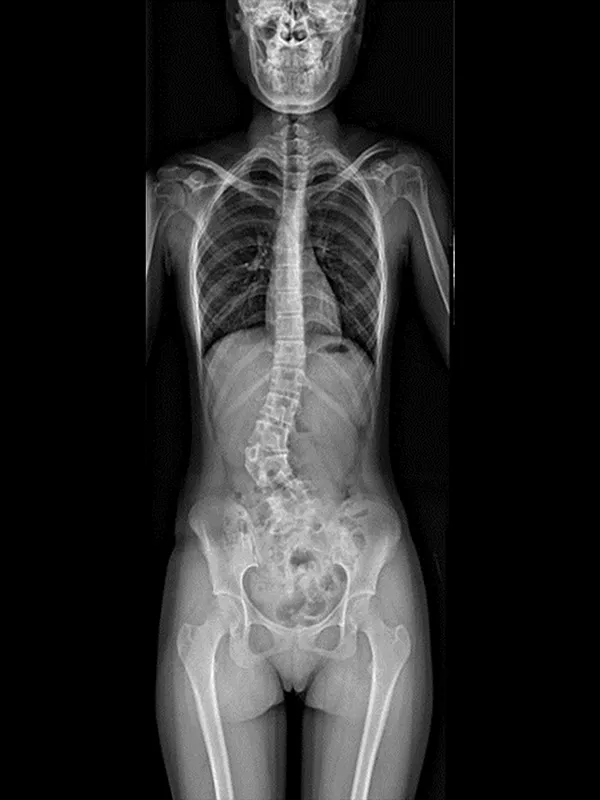

    Long Bone Stitching radiograph

    Long Bone Stitching radiograph

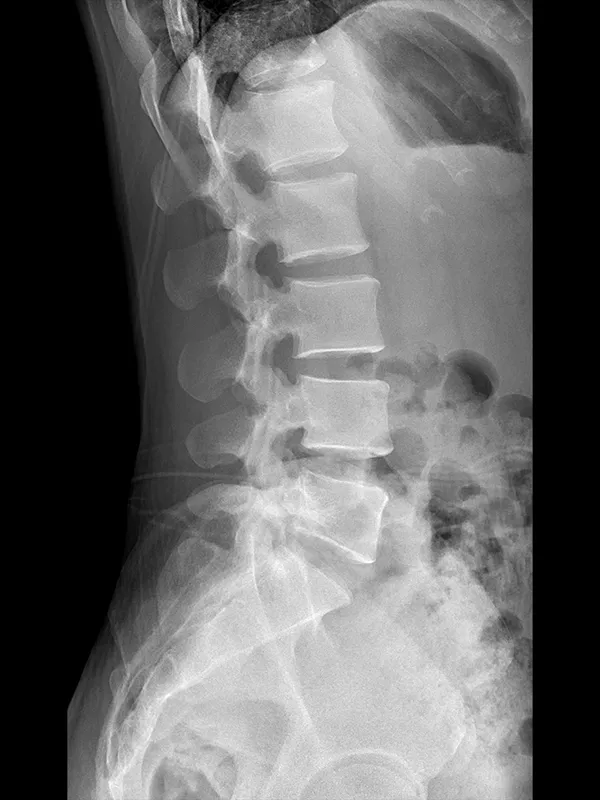

    Lateral Spine radiograph

    Lateral Spine radiograph

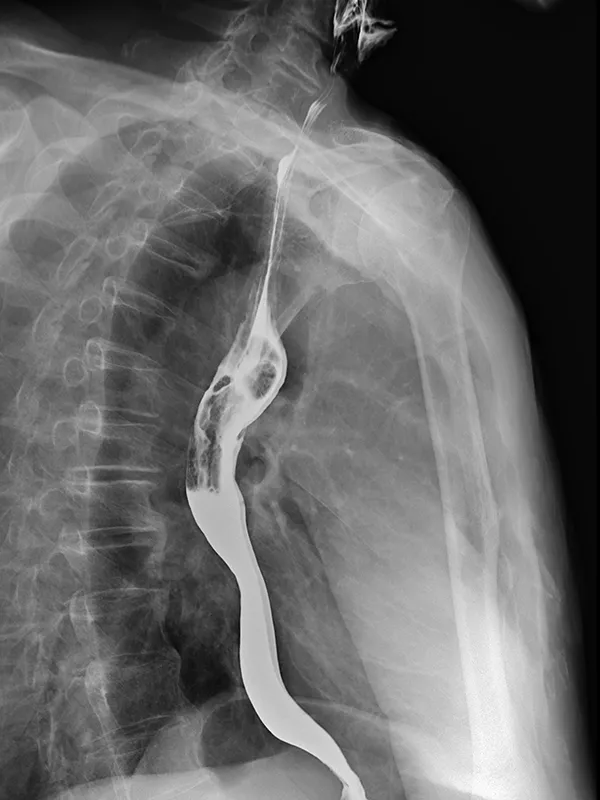

    Esophagus radiograph

    Esophagus radiograph

    Stomach radiograph

    Stomach radiograph

    Small Intestine radiograph

    Small Intestine radiograph

    Reproductive System radiograph

    Reproductive System radiograph

The digital gastrointestinal machine delivers outstanding performance in its fluoroscopy system. The dynamic amorphous silicon flat panel detector is designed for real-time imaging, featuring a 17 × 17-inch image sensor with directly deposited cesium (CsI) technology. This ensures high-quality, low-dose imaging with a frame rate of up to 30 fps.

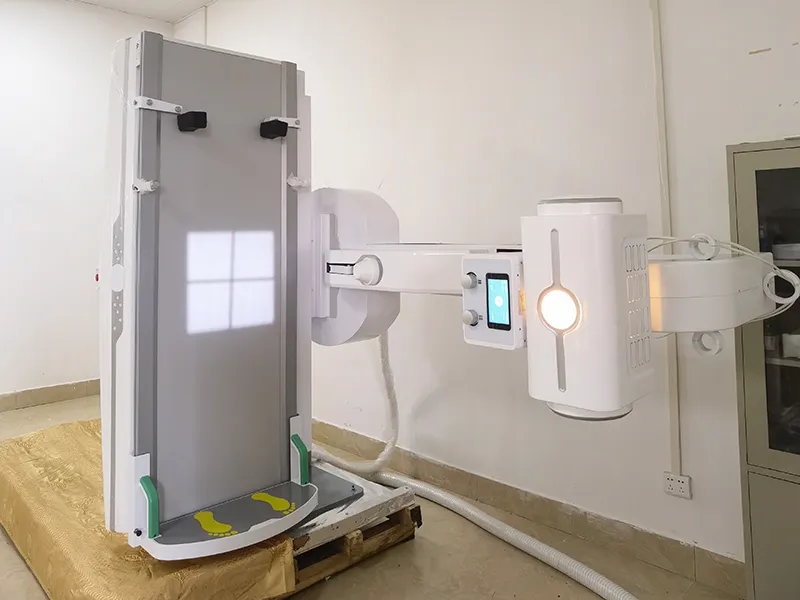

For radiography, the machine is equipped with a retractable tube arm with a maximum source-to-detector distance (SID) of 1800 mm, allowing for comprehensive, blind-spot-free digital radiography of all body regions. This provides precise and detailed imaging, offering reliable support for gastrointestinal disease diagnosis.
