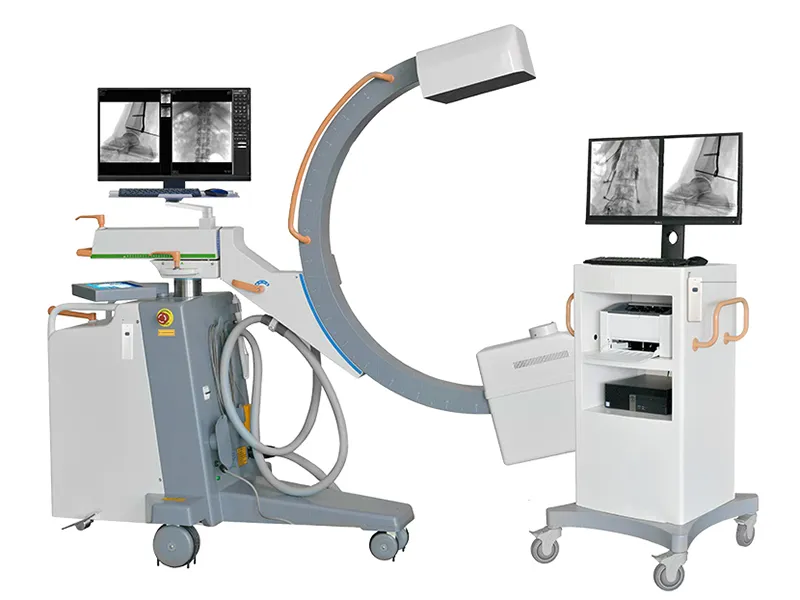

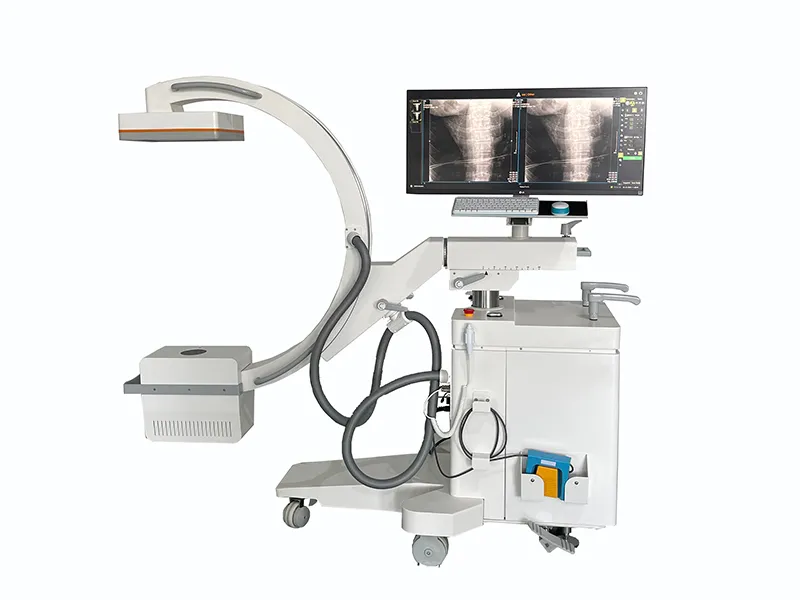

Flat Panel Detector C-Arm Machine

The flat panel detector C-arm machine gives you exceptional imaging quality with an easy-to-use design, making it a valuable tool for precise and efficient diagnostics. With its C-arm structure, you get multi-angle imaging, high-resolution diagnostics, and smooth operation, helping you make accurate clinical decisions faster.

Designed to enhance your workflow, this system features a high-frequency generator that delivers high-quality, high-penetration X-rays for clear, detailed imaging. The 21 cm × 21 cm flat panel detector is larger than traditional image intensifiers and uses amorphous silicon technology, giving you higher density and spatial resolution for improved surgical accuracy.

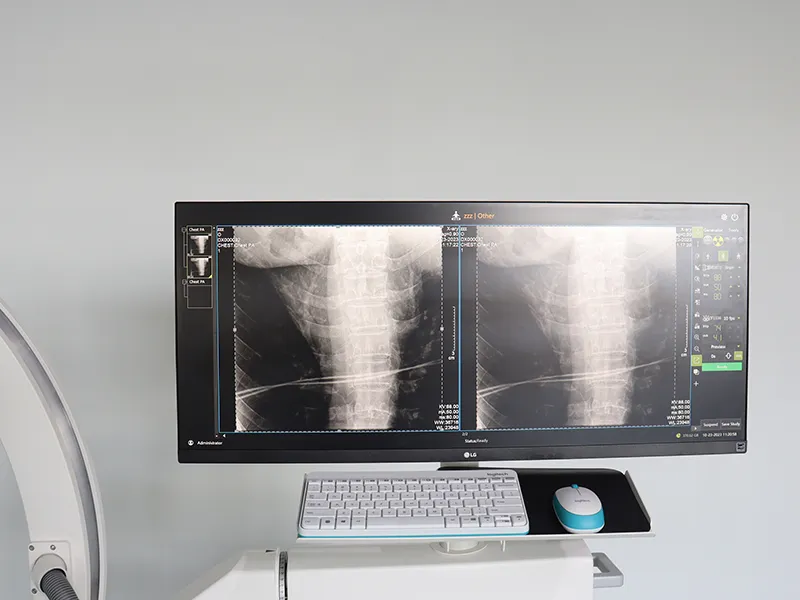

For long-duration procedures, the oil-cooled, heat-resistant X-ray tube ensures consistent image acquisition, while the 34-inch monitor allows you to view real-time video and reference images at the same time, speeding up your diagnostic process. The microcomputer control system includes self-diagnosis and automatic protection, with a dual-CPU design that improves system stability and safety.

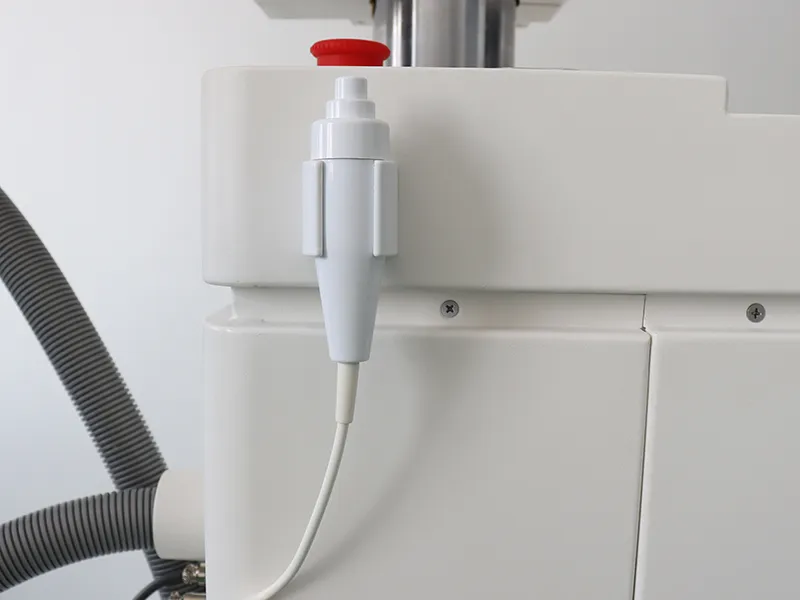

With a large open design, this system gives you more freedom during procedures. It supports handheld, footswitch, and remote control operation, letting you make adjustments easily from inside or outside the operating room. Plus, with DICOM 3.0 compatibility, you can easily send, receive, and print images via PACS.

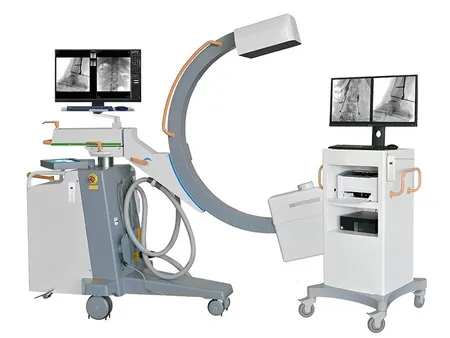

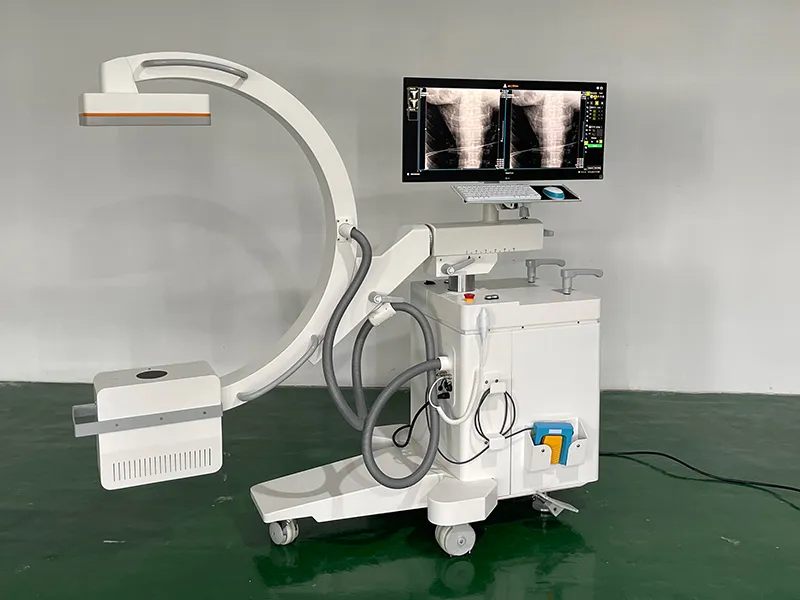

SHOC-CS01 C-Arm Machine with Flat Panel Detector

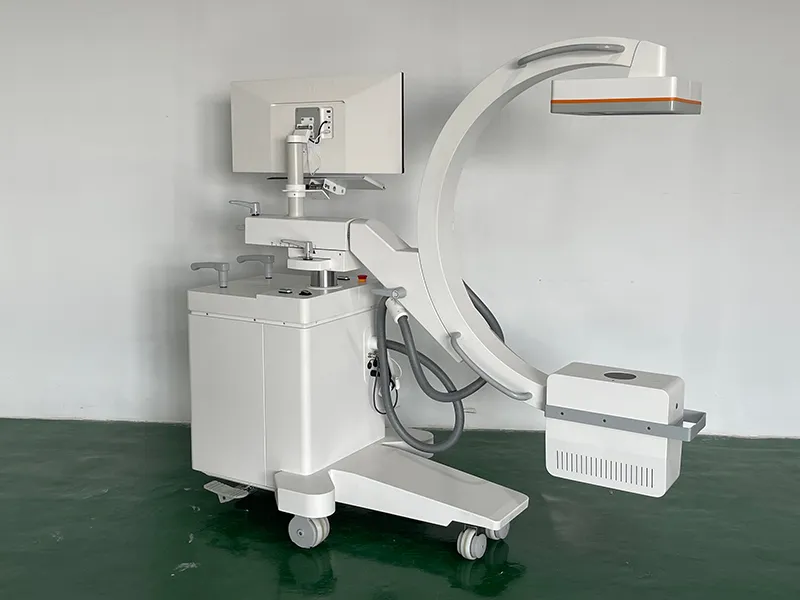

This detachable C-arm machine is a popular choice in the market, offering exceptional imaging quality with its French Trixell flat panel detector and Italian IMD technology X-ray tube. The high-performance amorphous silicon detector ensures clear, detailed imaging, making it a reliable tool for medical professionals.

The 21 × 21 cm image sensor, featuring directly deposited cesium, provides high-quality low-dose imaging with a frame rate of up to 30 frames per second, delivering sharp, real-time visuals.

For those seeking advanced functionality, an optional motorized system allows for fully automated C-arm movements, improving efficiency and ease of use. This system is widely used in orthopedics, neurosurgery, pain management, and emergency departments, enhancing diagnostic accuracy and procedural outcomes.

Specifications

HF generator
120 kV, 5 kW, 40 kHz

Fluoroscopy mode

Fluoroscopy mode 40-120 kv 0.5-5 mA (kV manual and automatic);
Pulsed fluoroscopy 40-120 kV 0, 5-5 mA
Boost fluoroscopy 40-120 kV 5-10 mA;
Photography 40-120 kV 1-250mAs

X ray tube

Dual-focus Rotating anode: 0.3 mm / 0.6 mm, 100 mA
Thermal capacity: 800kHU
Italy IMD Technology

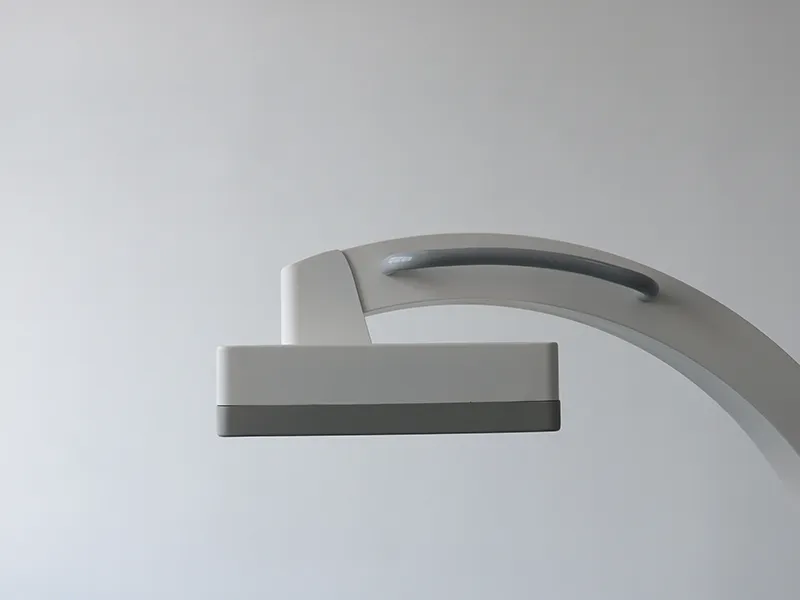

Detector

France Trixell brand
Plate: single A-Si TFT + photodiode plate
Scintillator: Csl
Total transmitted image width: 1024 (1344 optional)
Total transmitted image height: 1024 (1344 optional)
Pixel pitch: 200 um
DQE: 80%
Quantization depth: 16
Power supply input: 24±10%
Communication/image transfer: Ethernet cable

The main feature of the detector are:

Cold start feature
Offset stability validity up to 10 minutes
Fluoroscopy and RAD images capability
Passive cooling device
High speed image transfer using Ethernet link

Image system

5 Degree recursive Noise Reduction
Frame freezing
Thousands of image data storage
Image conversing and rotating
Screen display with image comparison
Support “one click” print, print the image report
Equip with Dicom 3.0 network port
Support Dicom 3.0standard data export function
DAP (optional)

Mechanical motion specifications

Vertical travel: 0-400 mm(electric), Horizontal travel: 0-200 mm (electric optional)
Rotation about horizontal axis: ±180°(electric optional )
Slipping along the circular arch rail (electric optional)

C-arm dimension

Distance of focal spot to image generator(SID):1000 mm
Depth in arm ≥ 650 mm Mobile stand: 1800×800×1850mm
Image system: 750×530×1680 mm

Standard configuration

Flat panel detector: 1set
X-ray generator: 1set
Working station 24'' Dell LCD high definition display 1 set
Working station 24'' Dell LCD high definition display 1 set
Mobile stand:1 set
Inkjet Printer: 1set
Handset wired exposure brake: 1set
Wireless handset exposure brake: 1set

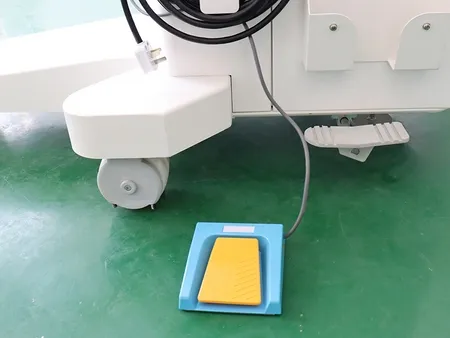

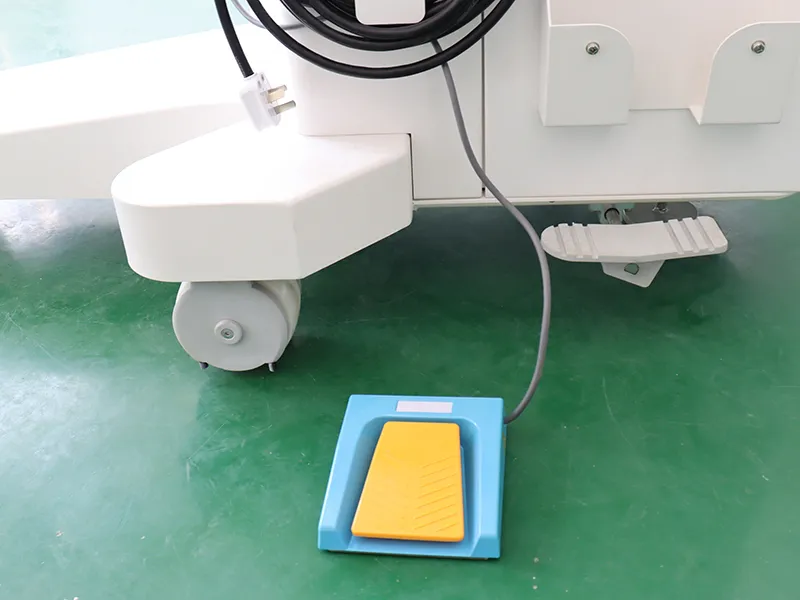

Foot switch for fluoroscopy: 1set

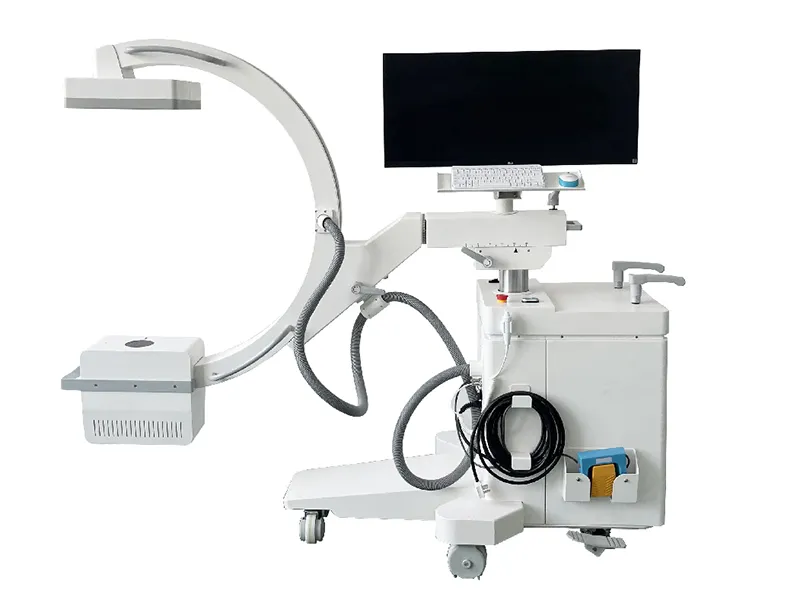

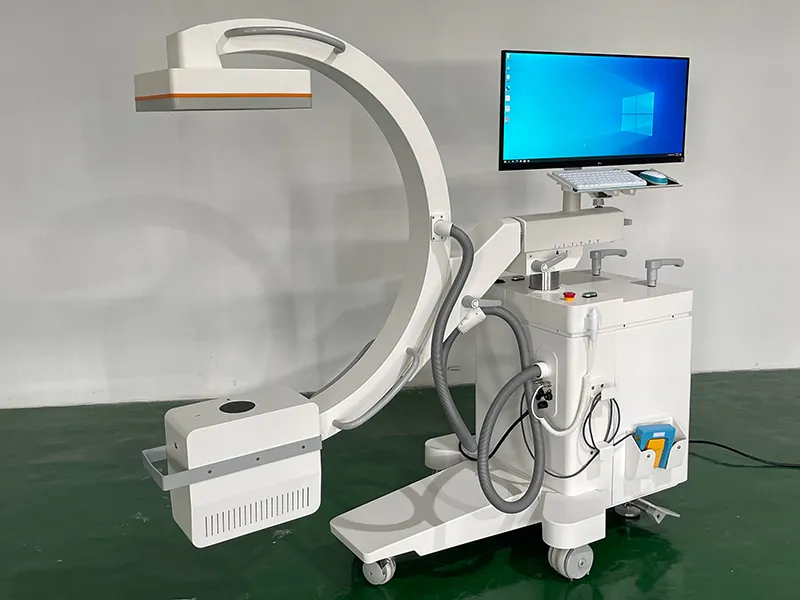

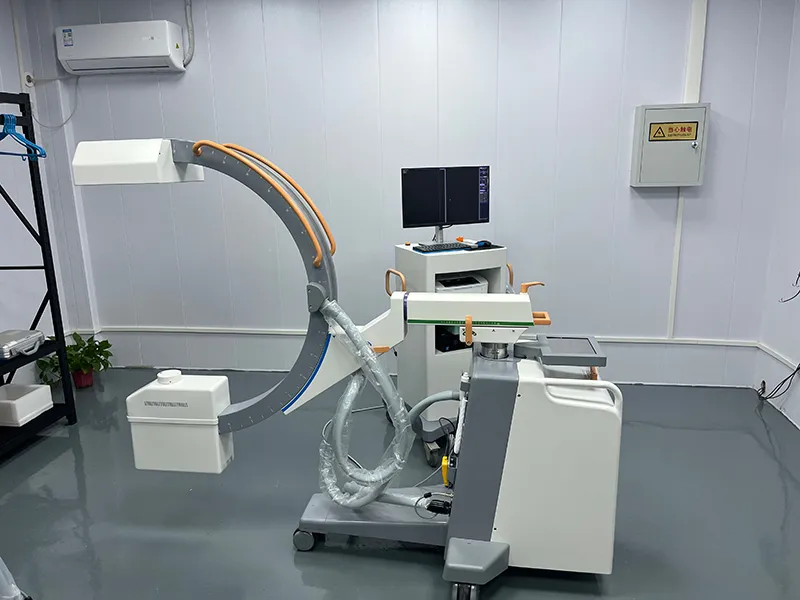

SHOC-5KW C-Arm Machine with Flat Panel Detector

If you need clear, high-resolution imaging with low radiation exposure, this flat panel C-arm machine is the perfect choice for orthopedics, neurosurgery, pain management, and emergency procedures.

With its high-performance amorphous silicon detector, you get exceptional image quality and precise diagnostics. The 21 × 21 cm image sensor with directly deposited cesium (CsI) provides low-dose imaging with a frame rate of up to 30 frames per second, giving you sharp, real-time visuals for surgical precision.

Designed to improve your workflow and patient care, this system integrates seamlessly into mobile C-arm fluoroscopy X-ray units, making it an ideal solution for vascular and surgical applications.

Specifications

Ambient Conditions

Ambient temperature: 10℃ to 40℃
Relative humidity: 30-75%
Atmospheric: 70-106 kPa

X-Ray Generator

Model	SHOC-5KW	SHOC-15KW
Output power (kW)	5	15
Current of fluoroscopy (mA)	0.3-6.3	0.3-6.3
Current of radiography (mA)	0.1-100	0.5-150
Pulsed mA (mA)	32	32
Voltage (kV)	40-125	40-125
mAs range (mAs)	0.2-100	0.2-100
ms range (ms)	10-1600	10-1600

X-Ray Tube

Anode type: 5kw is Stationary Anode tube, 15kW is Rotating Anode tube
Focal Spot value: 0.3 mm / 0.6 mm
Rotating anode speed: 2800 rmp
Anode heat storage: 300 kHU
Housing Heat Storage Capacity: 1200 kHU

Flat-Panel Detector

Size: 21×21 cm
Detector Technology: Amorphous Silicon
Scintillator: CsI
Image resolution: 2.5 lp/mm
Frame rate: Max. 30 frames/sec
Active pixels: 1024×1024 pixels
A/D conversion: 16 bit
Pixel Pitch: 205 μm
Faster image capture speed: The image will be displayed on the monitors in 0.8s after exposure.

Grid

Brand: JPI
Ratios: 10:1
Density: 60l / cm
SID: 100 cm

C-Arm Unit

SID: 1000 mm
Free space(Tube to I.I): 820 mm
Arc depth: 640 mm
Vertical movement: 0-400 mm (Electric)
Horizontal movement: 0-200 mm (Manual)
Planning movement: ±15°(Manual)
Orbital movement: -30° to +90° (Manual)
C-arc rotation: ±180°

Workstation & Software

Monitor: One set 34’’ LCD LG brand HD monitor
Computer memory: 500 G mass storage.
CPU: 2.7 GHZ

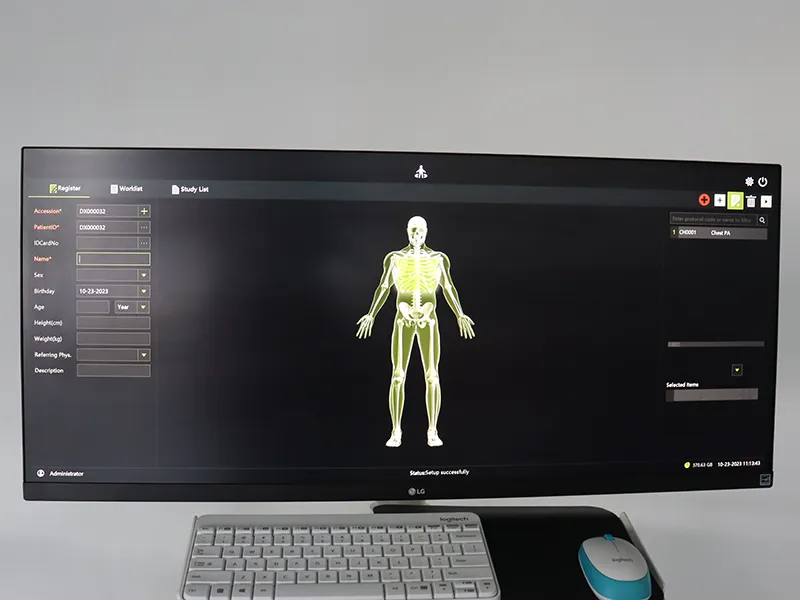

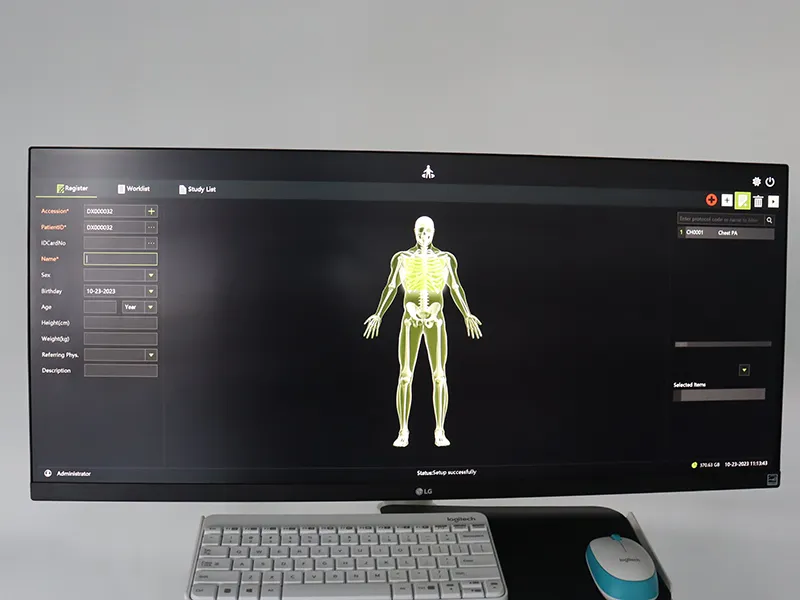

Software: The image can be step-less rotated continuously for 360°.Flip the Reference image horizontally or vertically. Applies various Gamma values for each image Last frame frozen Images can be saved in different formats, such as JPG, DCM, RAW, etc. DICOM 3.0, Data communication, Data storage etc.

SHOC-CS01 Medical Imaging
