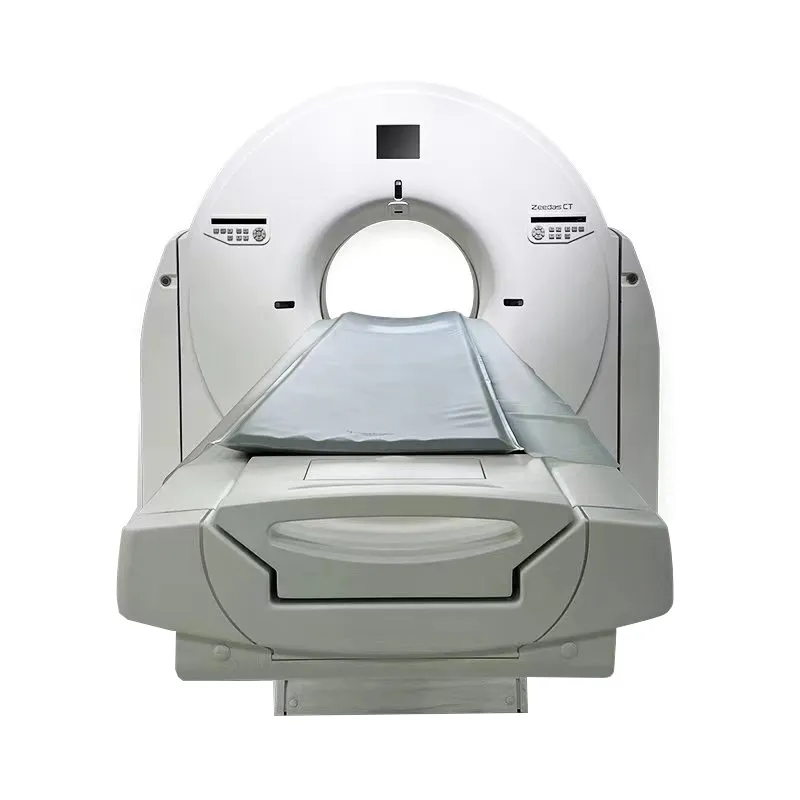

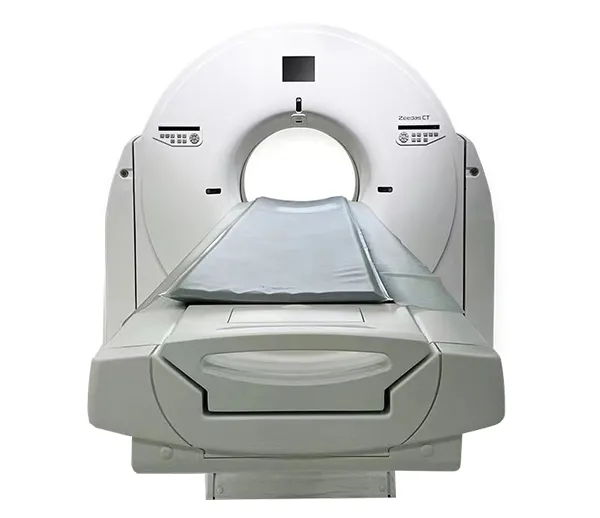

CT Scanner

RC-CT Medical Imaging

CT Scanner

Diagnostic imaging system combining X-rays and computer technology
Request a Quote

This product has been discontinued and removed from our shelves.

A computed tomography (CT) scanner is an advanced medical imaging system that combines X-ray technology with computer processing to generate detailed 3D images of the human body. It works by using an X-ray beam to scan the body, with detectors capturing the radiation signals that pass through. These signals are then converted into electrical data, which a computer processes to reconstruct precise cross-sectional images of internal structures. The system consists of an X-ray generation unit, detector array, scanning gantry, patient support table, and computing system. It is widely used in clinical applications, allowing for detailed examinations of the head, chest, abdomen, bones, and other areas to diagnose various medical conditions. Equipped with an intelligent dual-tube system, Aegis ASG detectors, advanced photon algorithms, and a complete clinical solution, our CT scanner offers four key advantages: durable tubes, high-definition imaging, comprehensive functionality, and user-friendly operation.

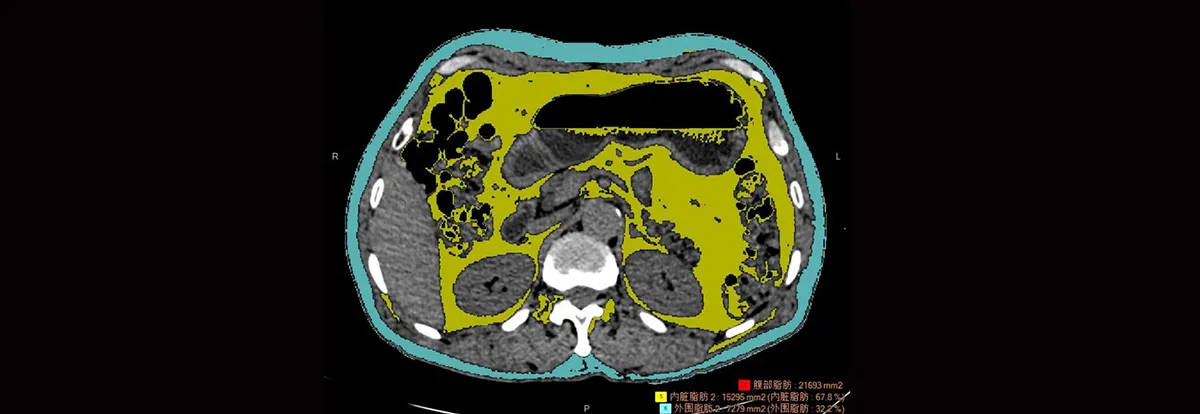

X-Ray Imaging
X-Ray Imaging
X-Ray Imaging
X-Ray Imaging
X-Ray Imaging
Main Parts
Main Parts

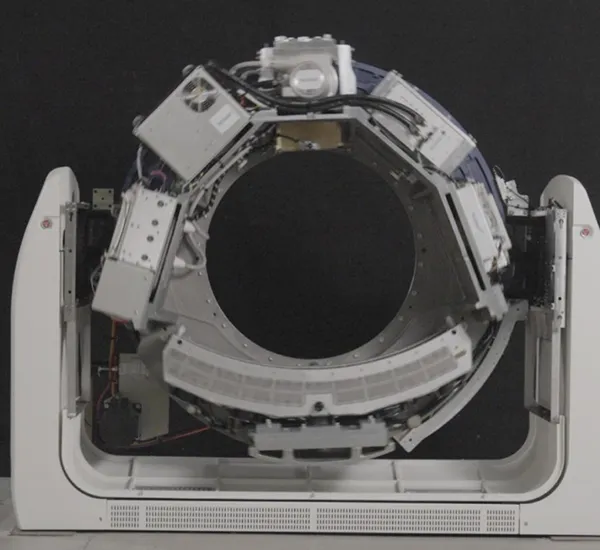

The internal structure of our CT scanner's slip ring is neatly arranged and well-organized, ensuring efficient performance and reliability. The core components, including the X-ray tube and flat panel detector, are systematically aligned, optimizing stability and imaging precision.

Intelligent Dual-Tube – High-Strength Durability
Intelligent Dual-Tube – High-Strength Durability

Manufactured by Toshiba to meet our technical requirements, the intelligent dual-tube system offers exceptional durability and performance. Unlike standard glass mold ball-bearing tubes, this system features 360° all-around heat dissipation, enabling continuous, uninterrupted scanning to serve more patients efficiently. With an extended lifespan, the dual-tube system helps reduce maintenance costs, potentially saving hospitals over one million in after-sales expenses

Advanced Tube and Aegis ASG Detector Technology
Advanced Tube and Aegis ASG Detector Technology

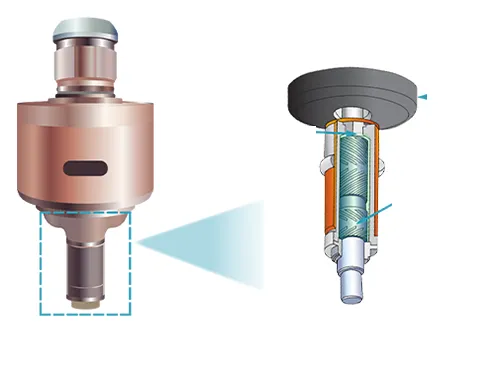

The intelligent dual-tube system features a metal core, anode target, liquid metal technology, herringbone spiral grooves, and liquid metal bearings, ensuring exceptional durability and performance for continuous scanning.

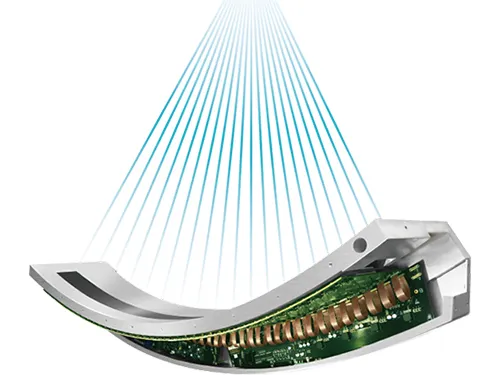

Aegis ASG Detector – U.S. Patented Technology
  • Ultra-Low Noise Micron-Level Channels
    A precision-engineered detector reduces channel gaps by 35%, significantly improving X-ray utilization efficiency and capturing more data for enhanced imaging.
  • Nano-Scale Pathways
    With shortened transmission paths between the scintillator crystal, photoelectric conversion, and AD chip, the system eliminates signal loss, ensuring complete data transfer for high-definition image reconstruction.
  • Millimeter-Level Precision
    Industry-leading 17mm ultra-high anti-scatter grid design increases scatter photon absorption by 110% while reducing effective photon blockage by 60%, delivering ultra-low noise and artifact-free imaging.
Advanced Photonic Algorithm Set – Precision Diagnostics
Advanced Photonic Algorithm Set – Precision Diagnostics

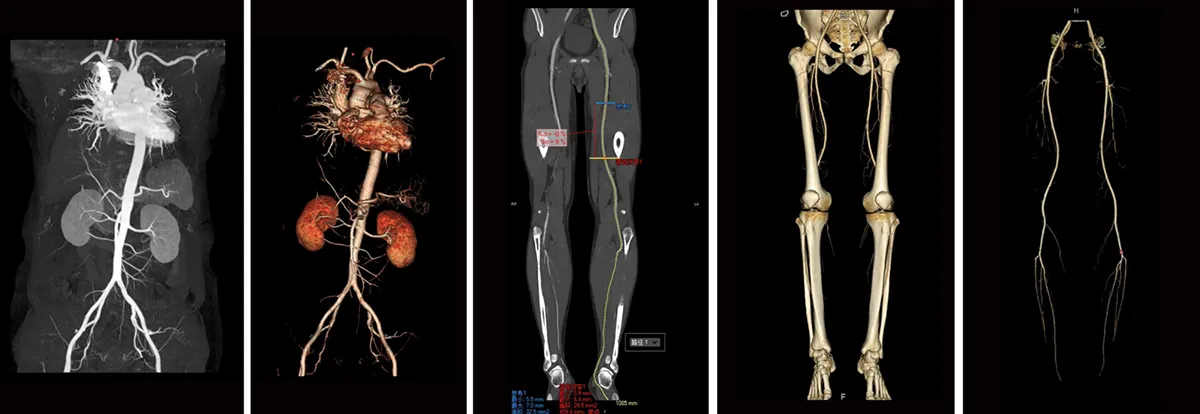

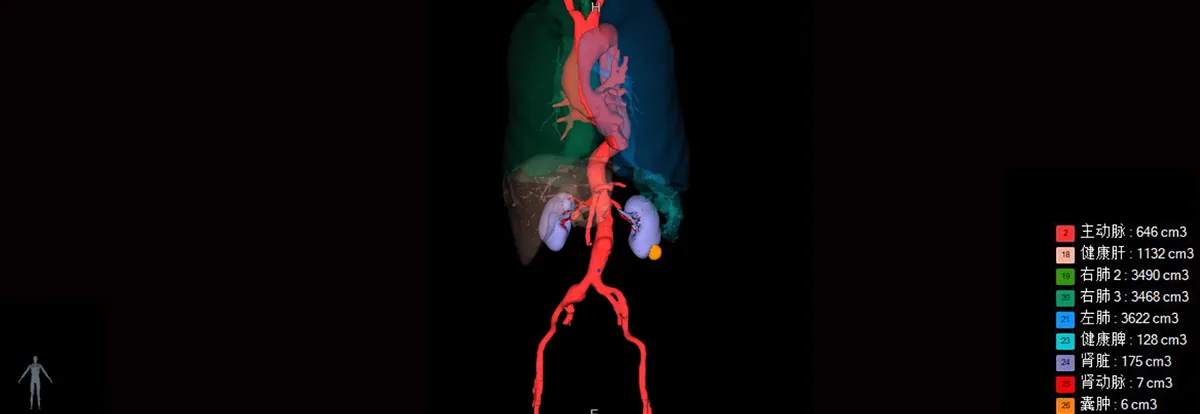

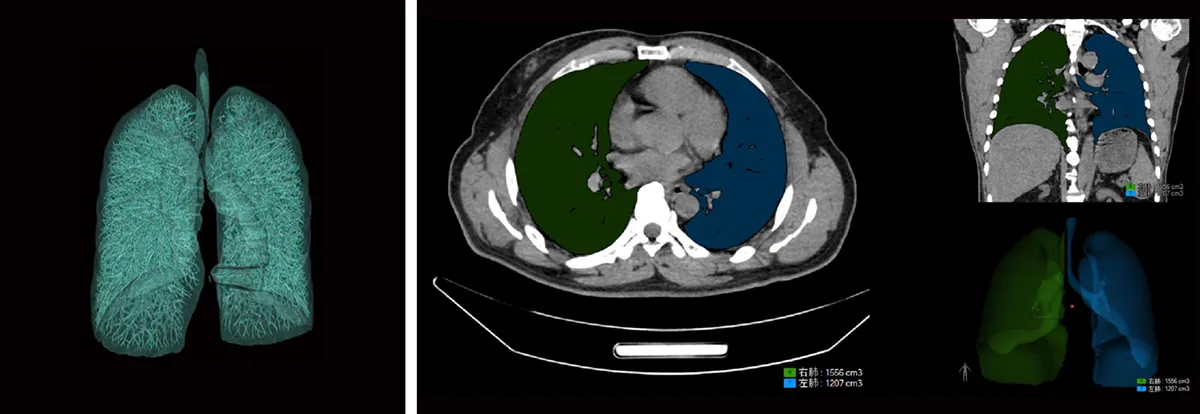

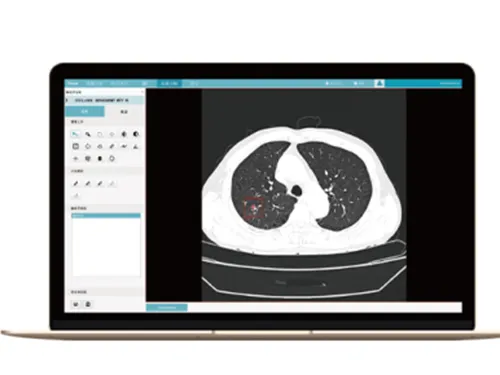

The Advanced Photonic Algorithm Set enables high-definition, true-to-life reconstruction of intricate human tissue structures, providing exceptional clarity for precise diagnosis. Powered by the Turing Z-IMAGE post-processing platform, the system meets clinical demands for advanced image processing, making 3D imaging seamless and highly efficient for medical professionals.

Key Information
RC-CT16CT Scanner
  • High-Resolution Imaging: Equipped with the Aegis ASG detector system, a high-performance liquid metal X-ray tube, and an optimized beamline design. The liquid metal bearings reduce wear and extend the X-ray tube's lifespan, lowering hospital maintenance costs.
  • Ergonomic & User-Friendly Design: Thoughtfully designed user interface and detailed ergonomic features ensure intuitive operation and enhanced user experience.
  • Low-Dose Scanning: Features intelligent mA modulation and three-domain iterative reconstruction, maintaining image quality while reducing radiation exposure.
  • Outstanding Clinical Imaging: Delivers precise, high-definition diagnostic images for various clinical applications.
RC-CT64CT Scanner
  • 64-Slice CT Scanner – 0M-400 Tube, 32kW Generator, Standard Post-Processing Software Package
  • Streamlined Workflow: Designed for efficiency and ease of use, the system features an intelligent, fully optimized workflow to enhance clinical operations.
  • High-Resolution Imaging: Equipped with the Aegis ASG detector system, a high-performance liquid metal X-ray tube, and an optimized beamline design. The liquid metal bearings reduce wear and extend the X-ray tube's lifespan, lowering hospital maintenance costs.
  • Ergonomic & User-Friendly Design: Thoughtfully designed user interface and detailed ergonomic features ensure intuitive operation and enhanced user experience.
  • Low-Dose Scanning: Features intelligent mA modulation and three-domain iterative reconstruction, maintaining image quality while reducing radiation exposure.
  • Outstanding Clinical Imaging: Delivers precise, high-definition diagnostic images for various clinical applications.
RC-CT128CT Scanner (with cardiac scanner function)
  • 128-Slice CT scanner – 0M-400 tube, 32kW generator, standard post-processing software package
  • Streamlined Workflow: Designed for efficiency and ease of use, the system features an intelligent, fully optimized workflow to enhance clinical operations.
  • High-Resolution Imaging: Equipped with the Aegis ASG detector system, a high-performance liquid metal X-ray tube, and an optimized beamline design. The liquid metal bearings reduce wear and extend the X-ray tube's lifespan, lowering hospital maintenance costs.
  • Ergonomic & User-Friendly Design: Thoughtfully designed user interface and detailed ergonomic features ensure intuitive operation and enhanced user experience.
  • Low-Dose Scanning: Features intelligent mA modulation and three-domain iterative reconstruction, maintaining image quality while reducing radiation exposure.
  • Outstanding Clinical Imaging: Delivers precise, high-definition diagnostic images for various clinical applications.
  • Optimized for Cardiac Scanning: Designed to capture high-speed, high-resolution images, making it ideal for cardiac examinations and coronary artery assessments.
  • Quality assurance:
    One year after shipment.
  • Production lead-time:
    Bulk production will take 30-35 working days to complete.
  • Special remark:
    The above price includes sending our factory engineers to install it and provide full round product training to your hospital doctors and engineers. (will take around 10-15 days)
  • Packaging information:
    Nearly 10cbm/2730kg
Packaging details
  • First Wooden Box – CT Gantry Package: 2400 × 1048 × 2066 mm / 1600 kg, 5.16 cbm / 1600 kg
  • Second Wooden Box – Patient Table Package: 2948 × 898 × 1053 mm / 550 kg, 2.79 cbm / 550 kg
  • Third Wooden Box – Accessories Package: 950 × 950 × 703 mm / 120 kg, 0.63 cbm / 120 kg
  • Fourth Wooden Box – PDU Package: 938 × 828 × 1309 mm / 380 kg, 1.02 cbm / 380 kg
  • Fifth Wooden Box – X-ray Tube Package: 660 × 660 × 380 mm / 80 kg, 0.17 cbm / 80 kg
  • Total: 5 wooden boxes / 9.76 cbm / 2730 kg
