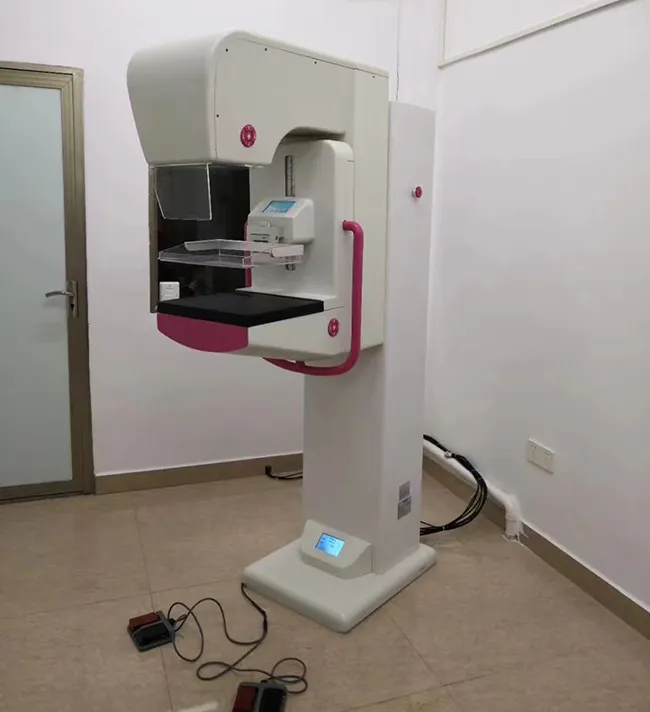

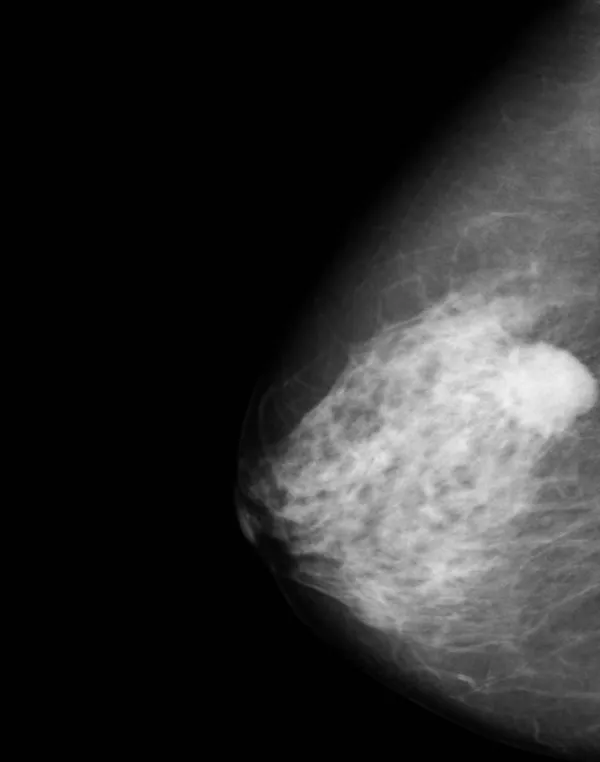

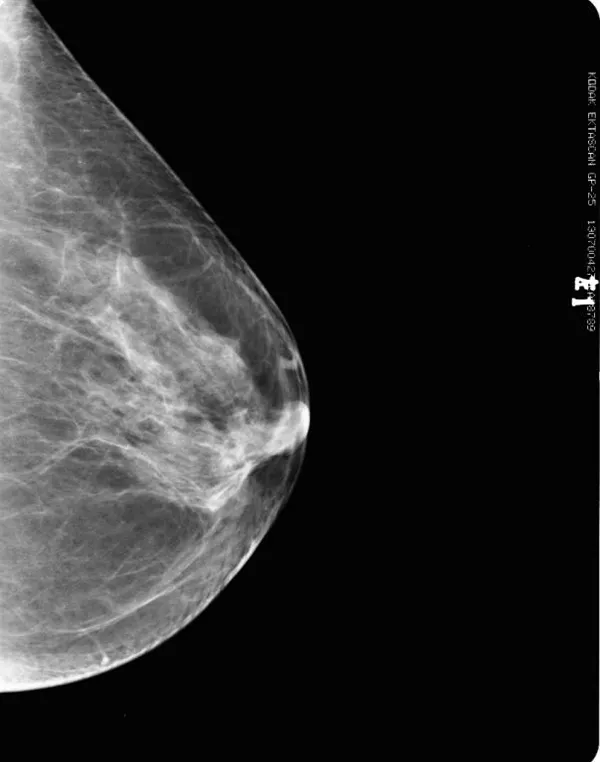

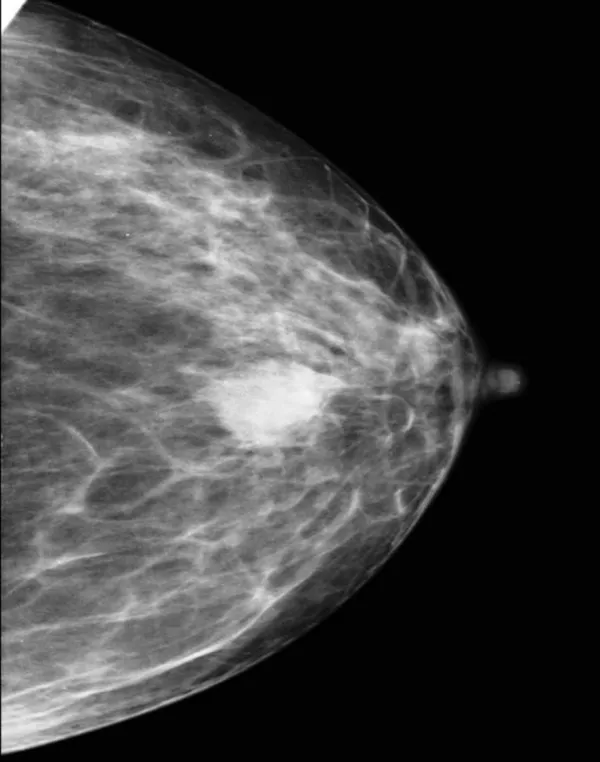

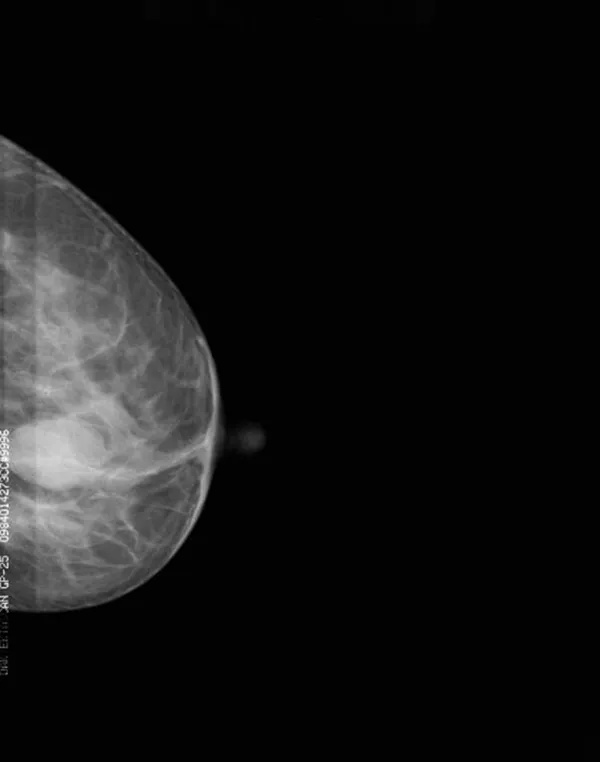

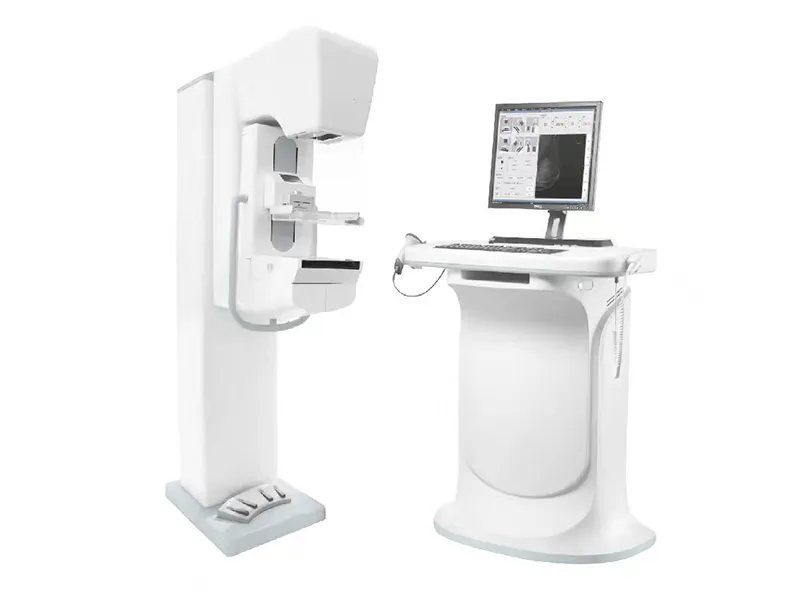

Our high-performance digital mammography system is designed to deliver exceptional image clarity for breast disease screening and diagnosis. It features a flat panel detector and an Italian IAE molybdenum X-ray tube, providing high-resolution imaging capable of detecting calcifications as small as 0.1 mm.

Equipped with a self-developed 40kHz high-voltage generator and dual-inversion technology, this system ensures stable X-ray output, reduced radiation dose, and enhanced image quality. The integrated “Console” software offers powerful post-processing capabilities, utilizing advanced mammography algorithms to optimize image quality and assist doctors in more precise breast cancer detection and diagnosis.

This mammography system provides a reliable solution for early breast disease detection and diagnosis, helping healthcare professionals make more accurate and confident clinical decisions.

Ambient Conditions

• Ambient temperature 10℃ to 40℃
• Relative humidity 30-75%
• Atmospheric 70-106 kPa

X-Ray Generator

• Output power 5.0 kW
• Frequency 80-200 kHz
• Current 10-200 mA
• Voltage 20-50 kV
• Exposure time 5-10000 s
• mAs 0.5-600 mAs
• Self-diagnostic system Tube overload protection

X-Ray Tube

• Brand IAE (Italy)
• Anode type Rotating Anode
• Focal spot value 0.1 mm / 0.3 mm
• Maximum voltage 40 kV
• Anode heat storage capacity 300 kHU

• House heat storage capacity 426 kHU
• Target material Molybdenum
• Anode rotation speed 10000 rpm
• Maximum anode heat dissipation rate 500 W

X-Ray Detector ( Iray Brand Flat Panel Detector)

• Scintillator Cesium Iodide
• Active area 235×290 mm
• Active pixel 2762×3408
• Pixel pitch 85 um
• AD conversion (bit) 16
• Spatial resolution 60 Lp/cm

Mechanical Device

• SID 650 mm
• Exposure field 240×300 mm (Maximum)
• Up-down movement of c-arm ≥ 600 mm
• Rotational angles of c-arm -90° to +90° (Electromagnetic lock)
• Rotational angles of tube -30° to +30°

Compression Paddle

• Movement type Electric
• Up-down movement range ≥210 mm
• Size of compression paddle 260×180 mm
• Pressure range 0-20 kg (0.1 kg step)

Workstation

• Monitor 24’’ LCD AOC brand
• CPU ≥2.0 GHz
• Memory ≥2 GB
• HDD ≥500 GB
• DICOM3.0 Query for integration with any PACS
• Functions Import/export function
