Floor-Mounted X-Ray Machine

SHO-DDX03 Medical Imaging

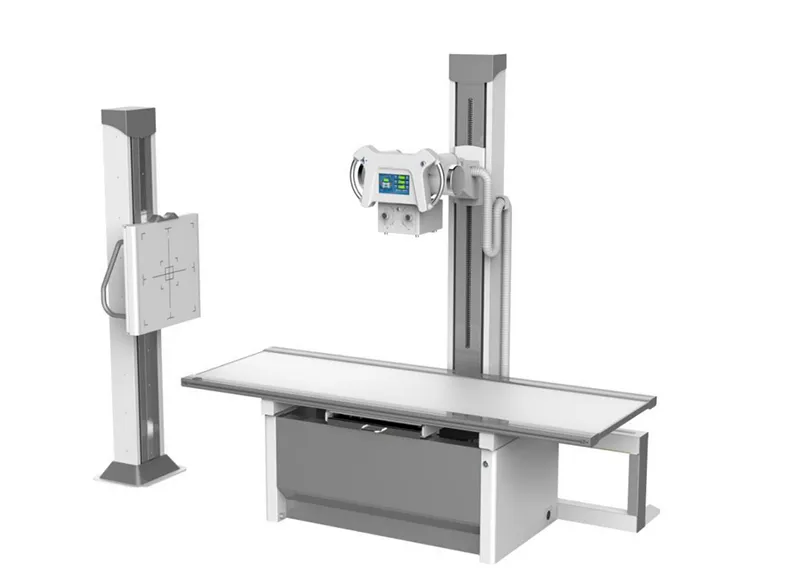

Floor-Mounted X-Ray Machine

Dual-column digital radiography system with 7-inch touch screen
Request a Quote

Our dual-column floor-mounted digital X-ray machine is designed specifically for DR rooms, offering wide-ranging applications for head, chest, abdominal, lumbar, and limb imaging. It supports PA, LAT, and clinical static imaging, ensuring precise diagnostics across multiple body regions.

Equipped with a high-performance digital image acquisition system, this radiographic machine delivers exceptional image quality for accurate and reliable results. It is available in two models, SHO-DDX03 and SHO-DDX04, both offering multiple power options, including 20kW & 200mA, 20kW & 320mA, 32kW & 400mA, 40kW & 500mA, and 50kW & 630mA. For advanced imaging needs, the SHO-DDX04 X-ray apparatus even reaches 65kW & 800mA, providing superior power and clarity for demanding clinical applications.

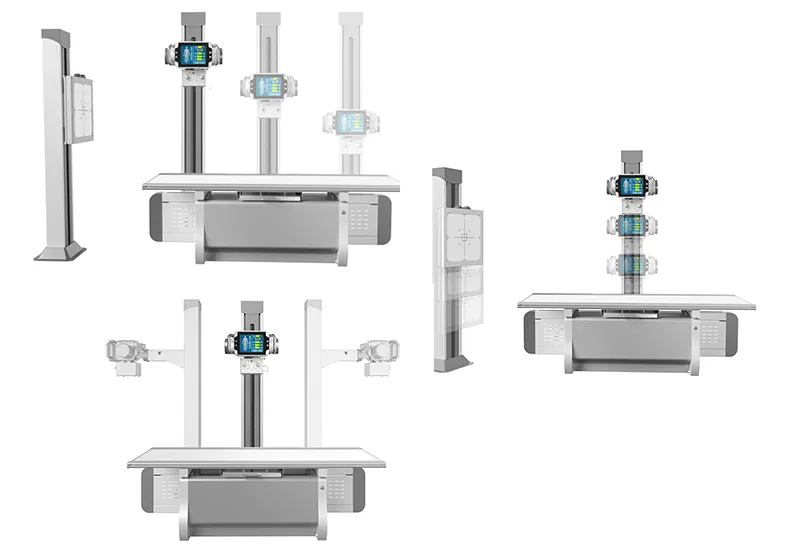

Floor-Mounted X-Ray Machine
Floor-Mounted X-Ray Machine
Floor-Mounted X-Ray Machine
Floor-Mounted X-Ray Machine
Specifications
Ambient Conditions
Ambient temperature 10℃ to 40℃
Relative humidity 30-75%
Atmospheric 70-106 kPa
Main head 9.7 inch touch screen control panel
X-Ray Generator
Model SHO-DDX03 Series
Output power (kW) 20 32 40 50
Current (mA) 10-320 10-400 10-500 10-630
Voltage (kV) 40-125 40-125 40-125 40-150
mAs (mAs) 0.1-320 0.1-400 0.1-400 0.1-630
Exposure time (s) 0.00-6.3
Focus size 1.0/2.0 1.0/2.0 1.0/2.0 0.6/1.2
APR program Equipped
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.
X-Ray Tube
Anode type Rotating Anode
Focal Spot value 0.6 mm / 1.2 mm
Maximum voltage 150 kV
Revolving speed of anode 2800 rpm
Inherent filtration 1.0 mmAl
Anode heat storage capacity 300 kHU
Maximum cooling rate of anode 870 W
Housing heat storage capacity 900 kJ
X-ray detector (Iray brand Flat Panel Detector)
Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17×17 inch (43×43 cm)
Active Pixel 3072*3072
Pixel Pitch 139 um
A/D Conversion 16 bits
DQE ≧70%
Spatial Resolution 36Lp/cm
Acquisition time ≤ 2 s
Collimator
Type Manual Collimator
Max. Window 440×440mm (SID=100cm)
Lamp AC/DC24V, 5W
Lamp timer Automatic illumination with timer for lamp (30 s)
Inherent filtration 1.0 mmAl
Illuminant LED
Grid
Densities 40 lp/cm
Ratios 10:1
Size 18”×18”
Focal distance 130 cm
Photography table
Type Radiography Table
Tabletop size 2100×800 mm X65 mm
load-bearing 300 KG
Floating front and back 150 mm / 150 mm
Floating left and right 400 mm / 400 mm
Column stand movement
Tube stand
Up-down movement 28-128 cm
Stand left-right movement 78.5-157 cm
Rotational angles of stand +180° to -180°
Rotational angles of tube ±90°
Bucky stand
FPD cassette up-down movement 4-175 cm
Workstation
Monitor 23’’ LCD Dell brand
CPU ≥ 2.8 GHz
Memory ≥ 4 GB
HDD ≥ 1 TB
DICOM3.0 Query for integration with any PACS
X-Ray Imaging
Head radiograph
Head radiograph
Limb radiograph
Limb radiograph
Abdominal radiograph
Abdominal radiograph
Lumbar radiograph
Lumbar radiograph
Chest radiograph
Chest radiograph
Main Parts

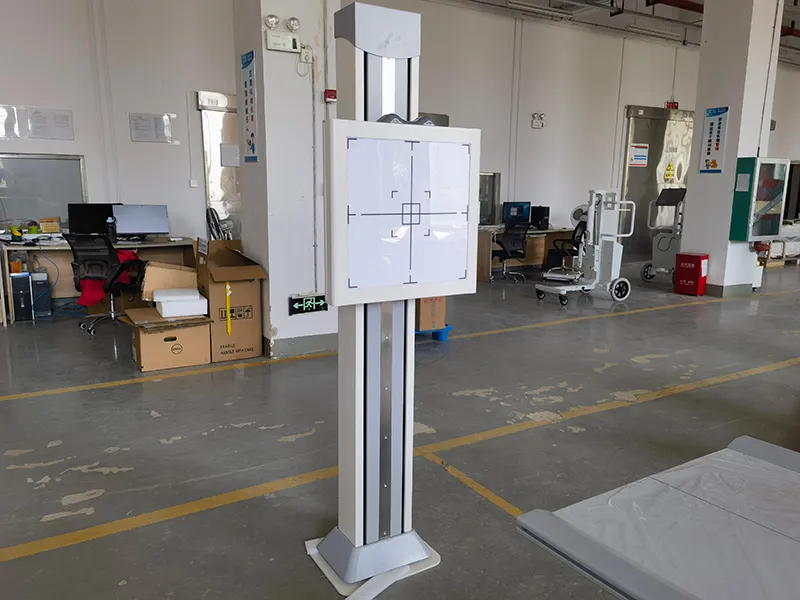

FPD Compartment on Chest Stand
  • FPD Compartment on Chest Stand:
    Highly mobile, ensuring smooth and precise movement for optimal image capture.

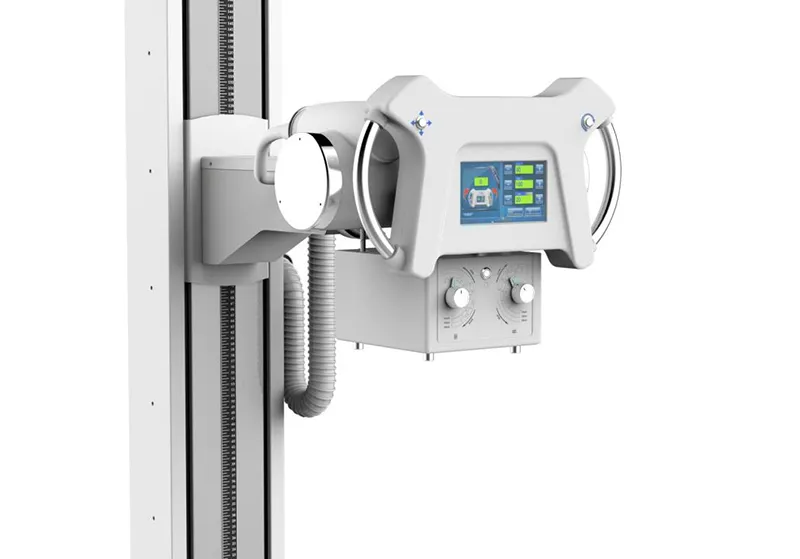

  • Column and X-Ray Tube Rotation:
    Allows for flexible positioning, making it easy to adjust for different imaging needs.

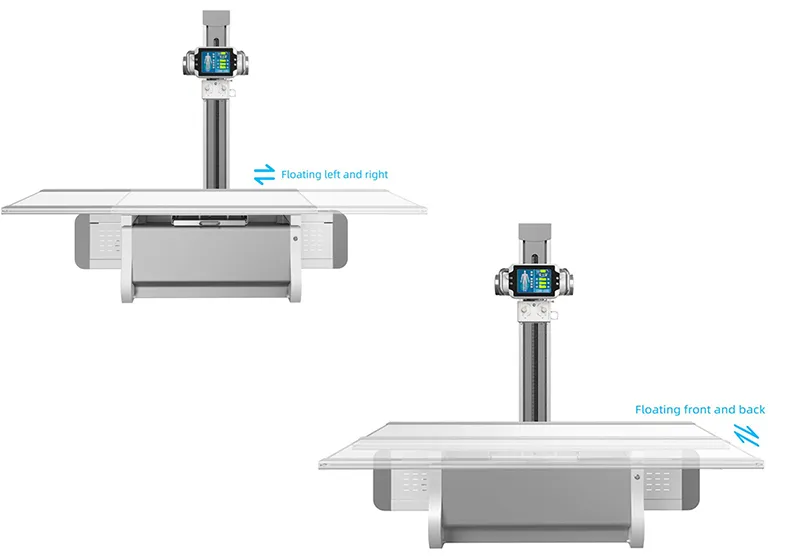

Four-Way Radiographic Table
Four-Way Radiographic Table

Supports patients weighing up to 300 kg, providing stability and ease of use.

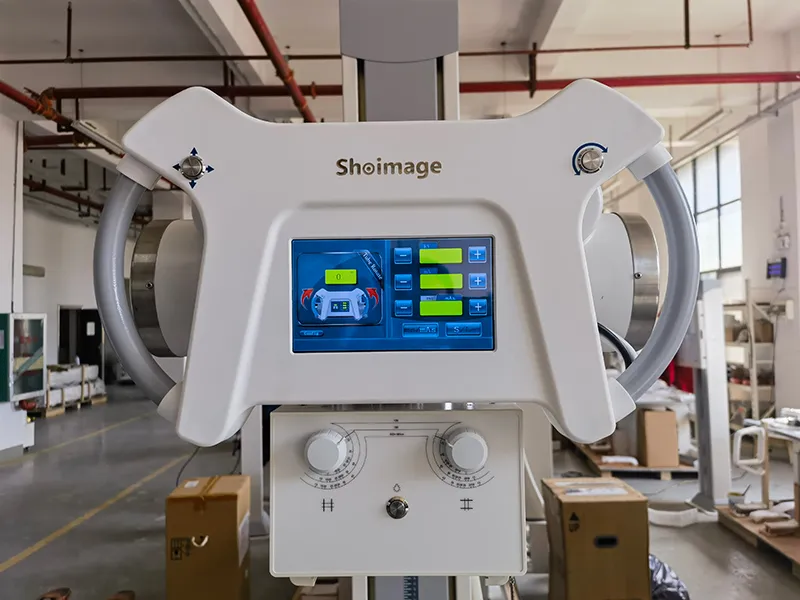

Operating Control Panel
Operating Control Panel

Features a 7-inch LCD color touchscreen, offering an intuitive and user-friendly interface.

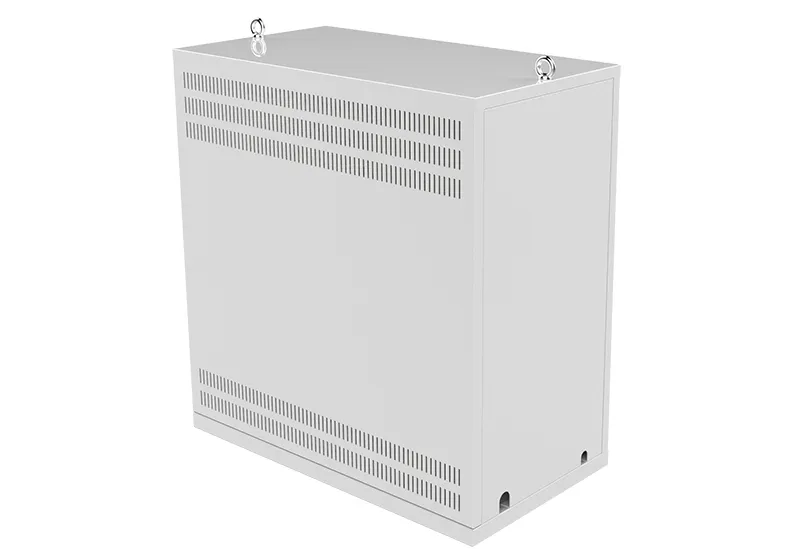

High-Voltage Generator
High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

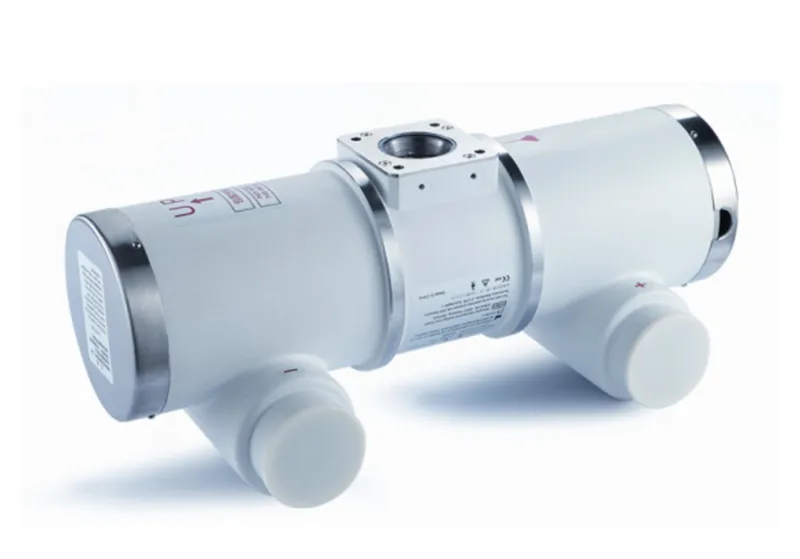

X-Ray Tube
X-Ray Tube

Can be configured with a TOSHIBA tube option, providing enhanced imaging performance

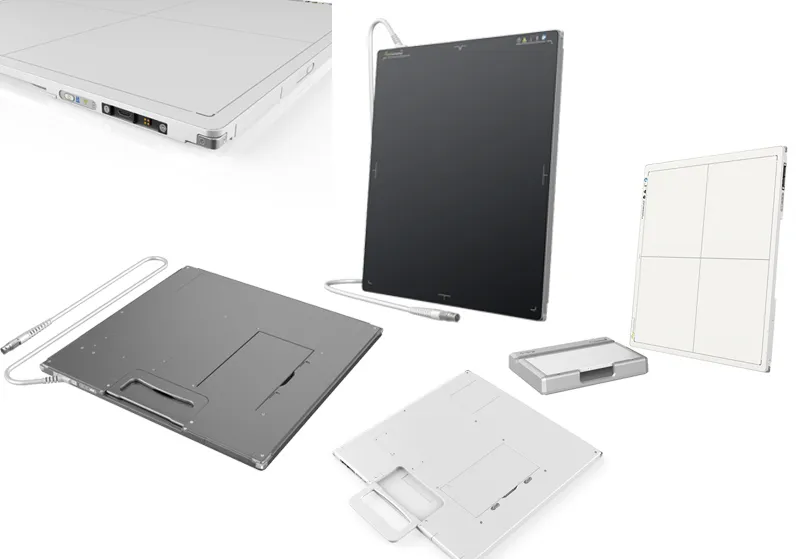

Flat Panel Detector (FPD)
Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

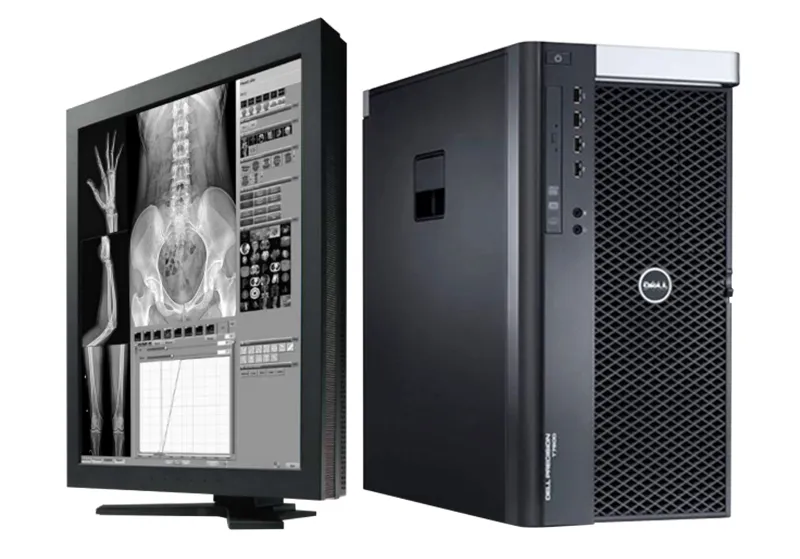

Dell 23-Inch Desktop Workstation
Dell 23-Inch Desktop Workstation

Provides a powerful and efficient platform for image processing and management.

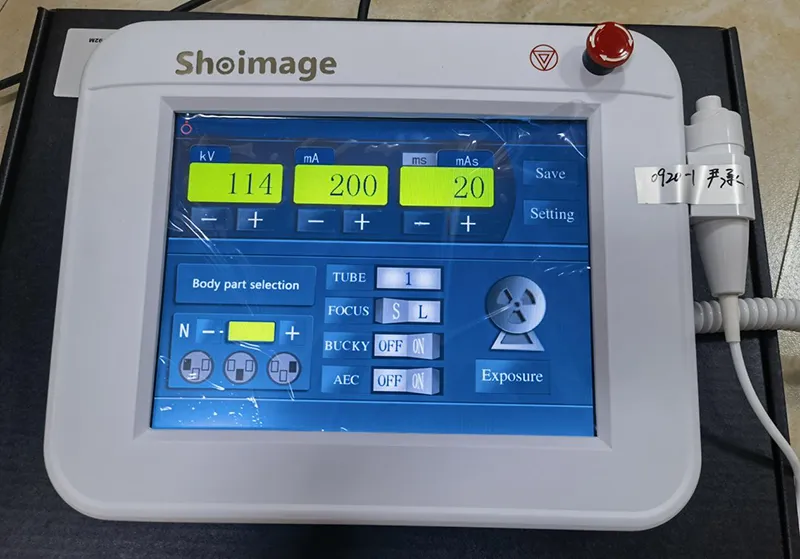

10.4-Inch Touchscreen Exposure Control Panel
10.4-Inch Touchscreen Exposure Control Panel

Offers precise and convenient control over exposure settings.
Become Distributor
  • We Use High-Quality Components from Trusted Brands

    Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.

  • Faster Delivery Time

    We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.

  • Two-Year Warranty

    As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.

Interested in becoming a Shoimage distributor? Contact us today to explore partnership opportunities. We look forward to working together and building a successful future!
