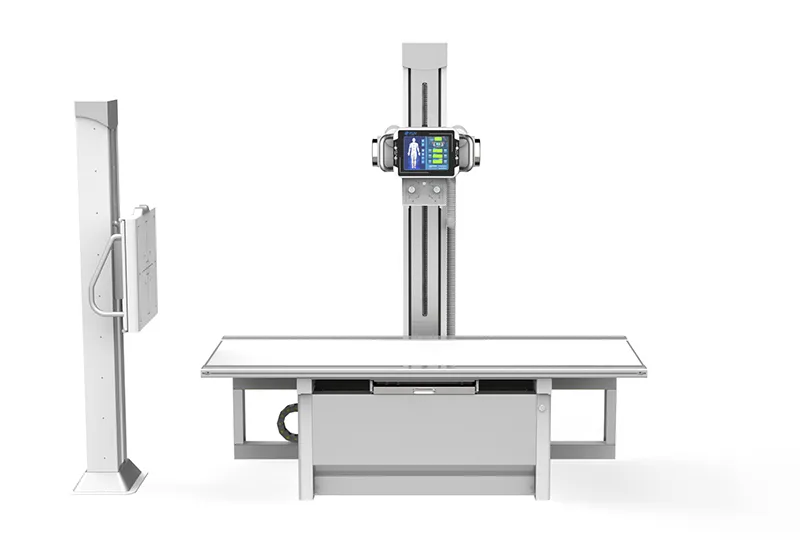

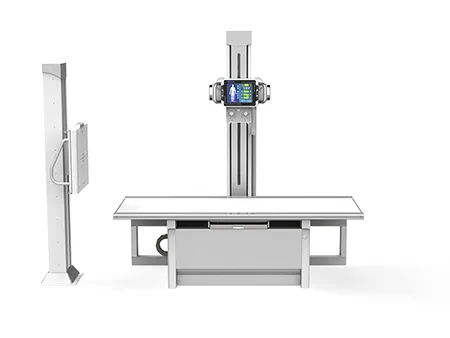

Floor-Mounted X-Ray Machine

Dual-column digital radiography system with 10.4-inch touch screen
Request a Quote

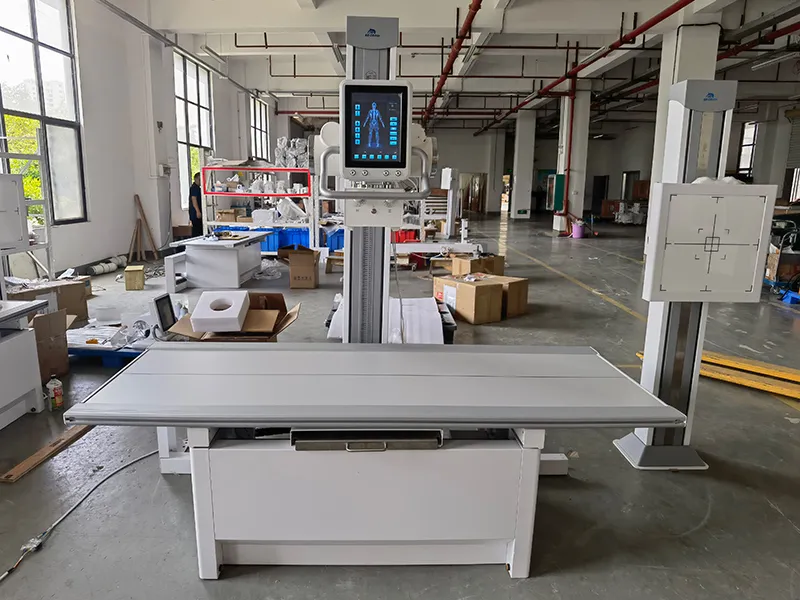

This floor-mounted dual-column digital X-ray machine is designed for DR rooms, offering broad imaging applications for head, chest, abdominal, lumbar, and limb examinations. It supports PA, LAT, and clinical static imaging, ensuring precise diagnostics across multiple body regions.

Equipped with a high-performance digital image acquisition system, this radiographic machine delivers outstanding image quality for accurate and reliable results. It is available in two models, SHO-DDX03 and SHO-DDX04, both offering output power options of 20kW & 200mA, 20kW & 320mA, 32kW & 400mA, 40kW & 500mA, and 50kW & 630mA. For advanced imaging needs, the SHO-DDX04 X-ray apparatus even reaches 65kW & 800mA, providing enhanced power and clarity for demanding clinical applications.

Floor-Mounted X-Ray Machine
Floor-Mounted X-Ray Machine
Floor-Mounted X-Ray Machine
Floor-Mounted X-Ray Machine
Specifications
Ambient Conditions
Ambient temperature 10℃ to 40℃
Relative humidity 30-75%
Atmospheric 70-106 kPa
Main head 9.7 inch touch screen control panel
X-Ray Generator
Model SHO-DDX04 Series
Output power (kW) 20 32 40 50 65
Current (mA) 10-320 10-400 10-500 10-630 10-800
Voltage (kV) 40-125 40-125 40-125 40-150 40-150
mAs (mAs) 0.1-320 0.1-400 0.1-400 0.1-630 0.1-630
Exposure time (s) 0.002-6.3
Focus size 1.0/2.0 1.0/2.0 1.0/2.0 0.6/1.2 0.6/1.2
APR program Equipped
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.
X-Ray Tube
Anode type Rotating Anode
Focal Spot value 0.6 mm / 1.2 mm
Maximum voltage 150 kV
Revolving speed of anode 2800 rpm
Inherent filtration 1.0 mmAl
Anode heat storage capacity 300 kHU
Maximum cooling rate of anode 870 W
Housing heat storage capacity 900 kJ
X-ray detector (Iray brand Flat Panel Detector)
Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17×17 inch (43×43 cm)
Active Pixel 3072*3072
Pixel Pitch 139 um
A/D Conversion 16 bits
DQE ≧70%
Spatial Resolution 36Lp/cm
Acquisition time ≤ 2 s
Collimator
Type Manual Collimator
Max. Window 440×440mm (SID=100cm)
Lamp AC/DC24V, 5W
Lamp timer Automatic illumination with timer for lamp (30 s)
Inherent filtration 1.0 mmAl
Illuminant LED
Grid
Densities 40 lp/cm
Ratios 10:1
Size 18”×18”
Focal distance 130 cm
Photography table
Type Radiography Table
Tabletop size 2100×800 mm X65 mm
load-bearing 300 KG

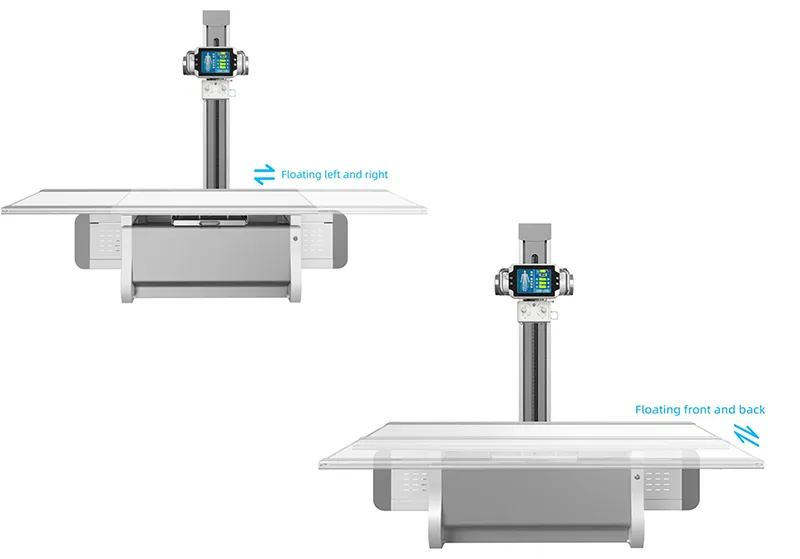

Floating front and back 150 mm / 150 mm
Floating left and right 400 mm / 400 mm

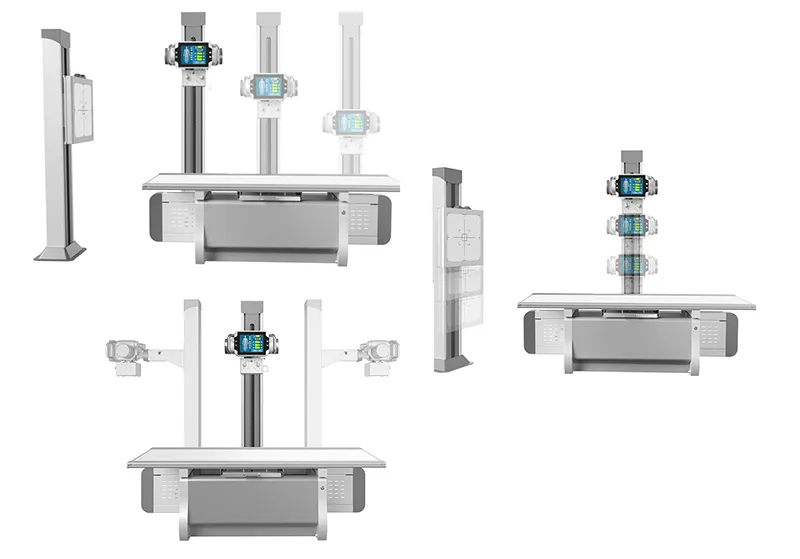

Column stand movement
Tube stand
Up-down movement 28-128 cm
Stand left-right movement 78.5-157 cm
Rotational angles of stand +180° to -180°
Rotational angles of tube ±90°
Bucky stand
FPD cassette up-down movement 4-175 cm
Workstation
Monitor 23’’ LCD Dell brand
CPU ≥ 2.8 GHz
Memory ≥ 4 GB
HDD ≥ 1 TB
DICOM3.0 Query for integration with any PACS
X-Ray Imaging
Head radiograph
Head radiograph
Limb radiograph
Limb radiograph
Abdominal radiograph
Abdominal radiograph
Lumbar radiograph
Lumbar radiograph
Chest radiograph
Chest radiograph
Main Parts

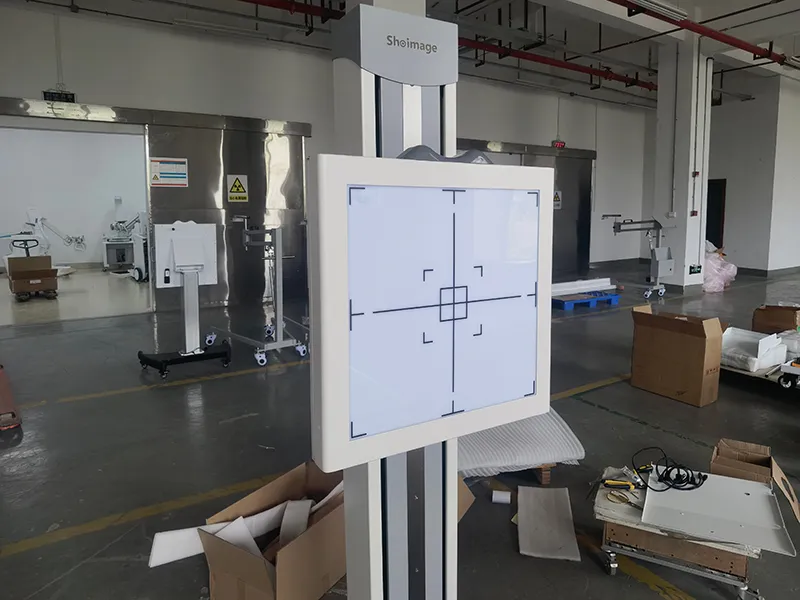

FPD Compartment on Chest Stand
  • Column and X-Ray Tube Rotation:
    Allows for flexible positioning, making it easy to adjust for different imaging needs.
  • FPD Compartment on Chest Stand:
    Highly mobile, ensuring smooth and precise movement for optimal image capture.

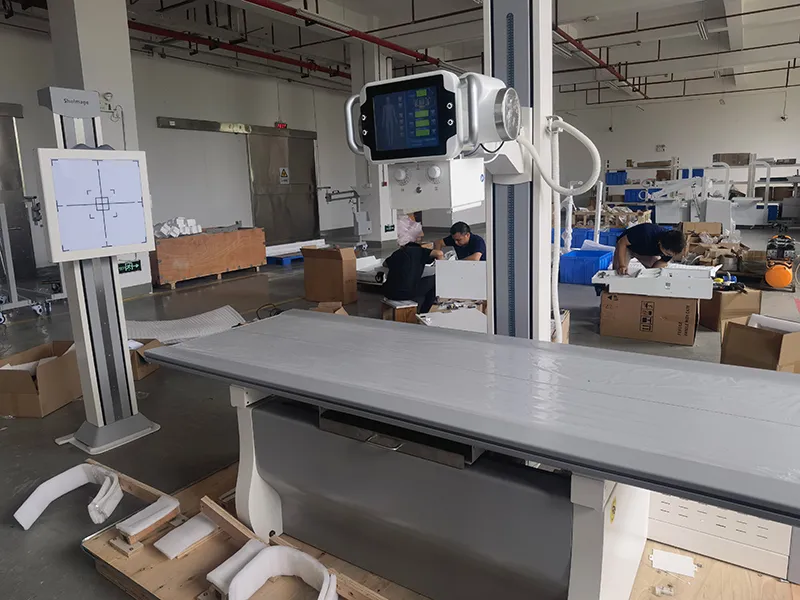

Four-Way Radiographic Table
Four-Way Radiographic Table

Supports patients weighing up to 300 kg, providing stability and ease of use.

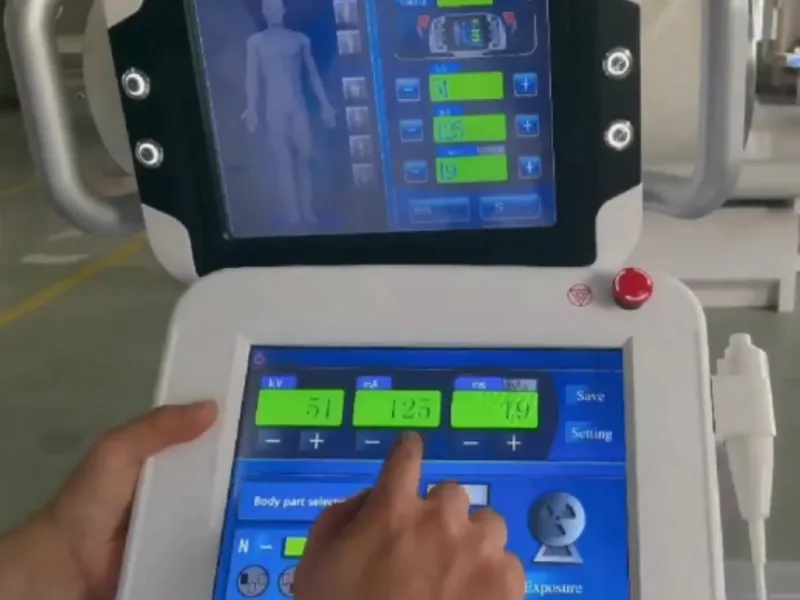

Operating Control Panel
Operating Control Panel

Features a 10.4-inch LCD touchscreen for intuitive operation.

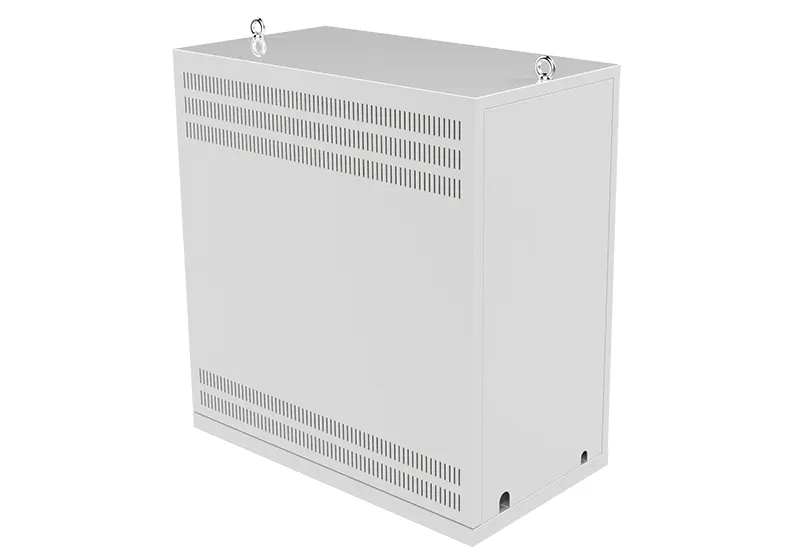

High-Voltage Generator
High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

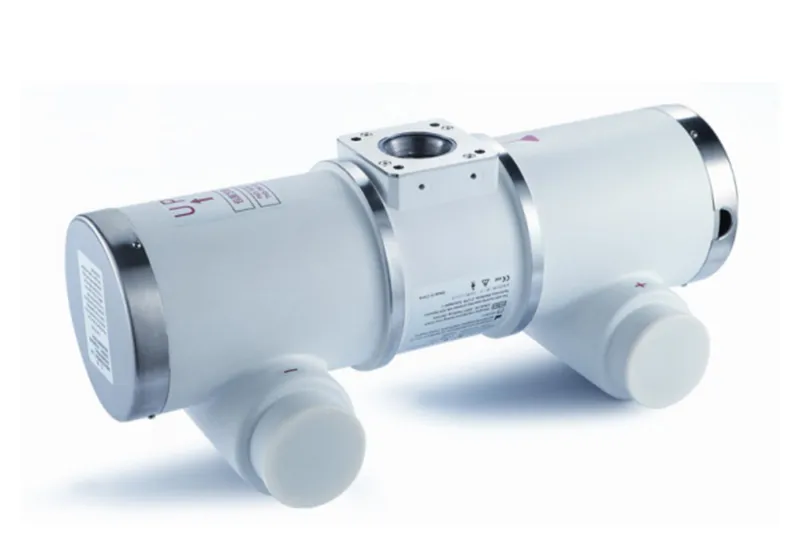

X-Ray Tube
X-Ray Tube

Available with an optional TOSHIBA tube for enhanced imaging performance.

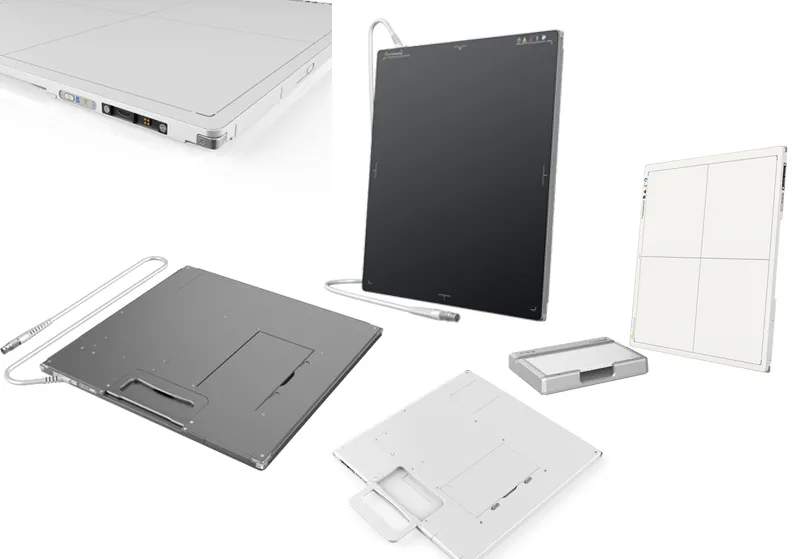

Flat Panel Detector (FPD)
Flat Panel Detector (FPD)

Uses world-renowned Iray technology and is available in both wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

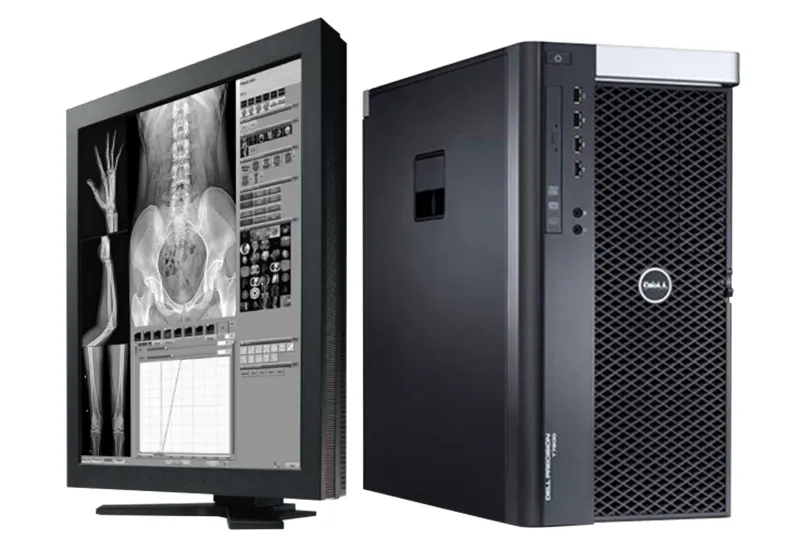

Dell 23-Inch Desktop Workstation
Dell 23-Inch Desktop Workstation

Provides a powerful and efficient platform for image processing and management.

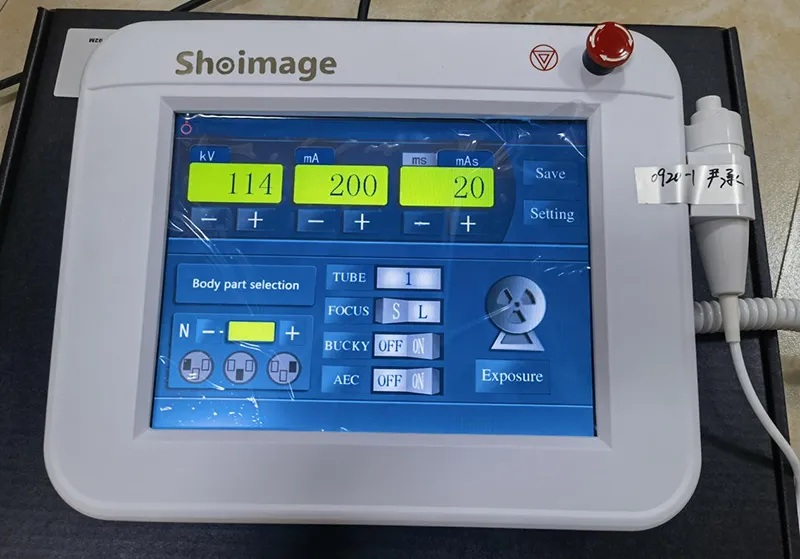

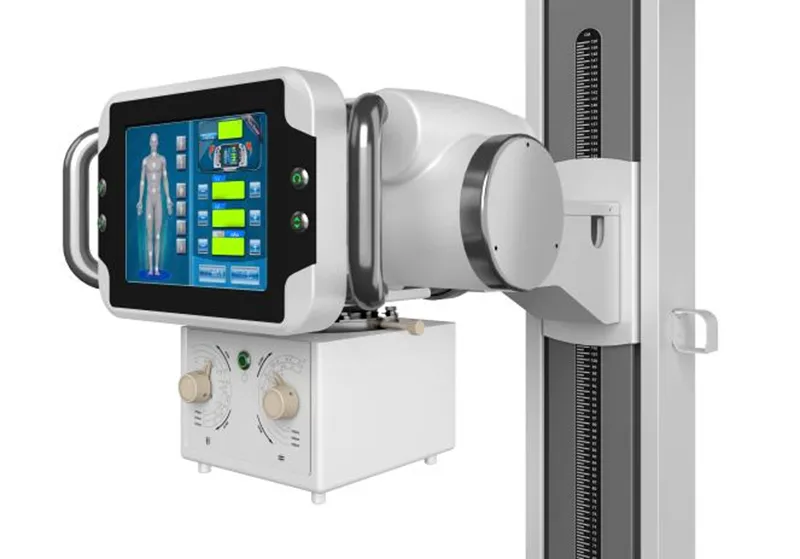

10.4-Inch Touchscreen Exposure Control Panel
10.4-Inch Touchscreen Exposure Control Panel

Offers precise and convenient control over exposure settings.
