SHO-DDX01 Floor-Mounted Digital X-Ray Machine

SHO-DDX01

Floor-Mounted Digital X-Ray Machine

Request a Quote
SHO-DDX01 Floor-Mounted Digital X-Ray Machine
SHO-DDX01 Floor-Mounted Digital X-Ray Machine
SHO-DDX01 Floor-Mounted Digital X-Ray Machine
SHO-DDX01 Floor-Mounted Digital X-Ray Machine

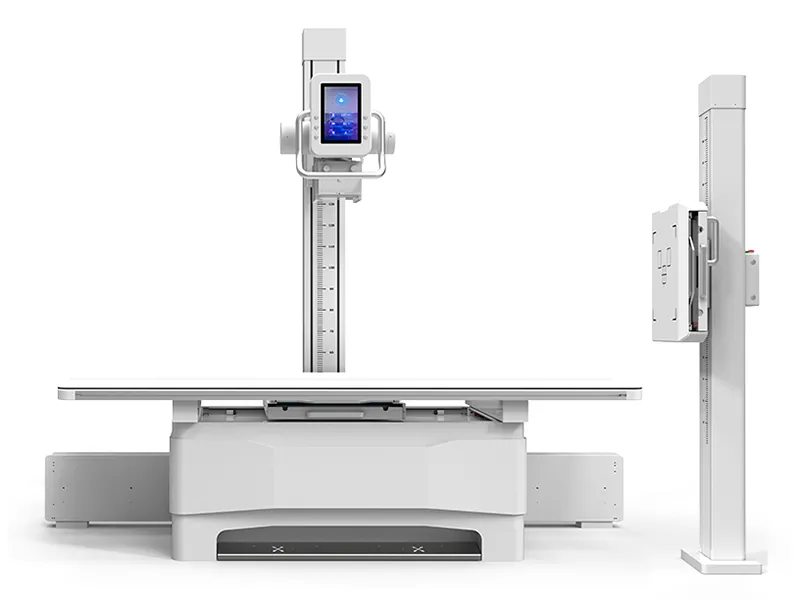

Built as a floor-mounted digital X-ray machine, it features a coordinated X-ray tube and flat panel detector that maintain precise alignment throughout imaging. Optional AEC and DAP functions can be added to strengthen exposure control and ensure consistent diagnostic quality. Facilities needing faster patient positioning can upgrade the radiographic table to a six-way floating tabletop, improving comfort and overall workflow.

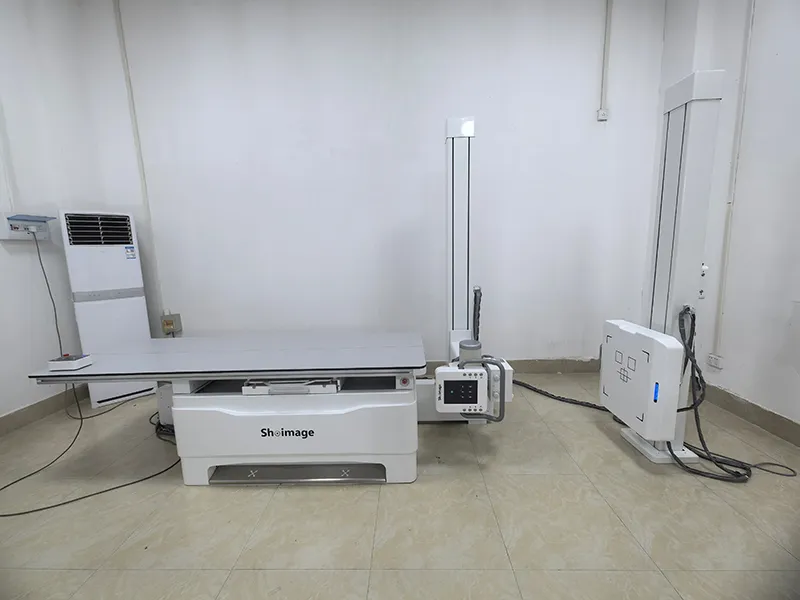

The machine integrates a floor-mounted table with a wall-mounted chest stand, creating a clean and efficient room layout. Its smooth mechanical movement and intuitive operating controls give radiographers greater flexibility when adjusting patient positions and selecting projection angles.

As a versatile high-end DR platform, the SHO-DDX01 supports a wide range of routine clinical examinations, including head, chest, abdominal, lumbar spine, and extremity imaging. It accommodates PA, lateral, oblique, and angled views, making it suitable for hospitals and clinics of all sizes.

Features
  • The X-ray tube operates at a high rotational speed and is supported by an efficient heat-dissipation system, allowing the equipment to perform reliably during long clinical sessions while maintaining an extended service life.
  • The high-frequency generator provides strong output performance with stable, high-quality X-ray emission, ensuring dependable imaging results across routine and demanding examinations.
  • A smart high-voltage control system incorporates multiple built-in protection functions to maintain safe and stable operation throughout daily clinical use.
  • The advanced a-Si CsI flat panel detector delivers high conversion efficiency, enabling clear, detailed digital images with reduced radiation dose.
  • A robust digital imaging platform offers comprehensive post-processing capabilities, giving clinicians the tools needed to support a wide variety of diagnostic requirements.
Specifications
Ambient Conditions
Ambient temperature 10℃–40℃
Relative humidity 30%–75%
Atmospheric pressure 70–106 kPa
Main head 10.4-inch touchscreen control panel
X-ray Generator
Model SHO-DDX01 Series
Output power (kW) 40 50 65
Current (mA) 10-500 10-630 10-800
Voltage (kV) 40-125 40-150 40-150
mAs 0.1-400 0.1-630 0.1-630
Exposure time 0.002~6.3S
APR program Equipped
Intelligent protection system Includes a self-protection system with automatic alarms and fault code diagnostics.
X-ray Tube
Output power (kW) 40 50 65
Anode type Rotating anode
Revolving speed of anode (rpm) 50Hz: 2800 60Hz: 3000
Focus size 1.0/2.0 0.6/1.2 0.6/1.2
Anode heat storage capacity (kHU) 150 300 400
Maximum Anode Heat Dissipation (W) 475 750 1000
Housing heat storage capacity (kJ) 900 900 1000
X-ray tube Rotation angel (°) ±180 ±180 ±180
X-ray Detector (Wired Flat Panel Detector)
Type Amorphous Silicon
Scintillator Cesium Iodide
Active area 17x17 Inch (43 cm*43 cm)
Active pixel 3072*3072
Pixel pitch 139 um
A/D Conversion 16 bits
DQE ≧70%
Spatial resolution 36 Lp/cm
Acquisition time ≤2 s
Collimator
Type Manual collimator
Max. Window 440 mm × 440 mm (SID = 100 cm)
Lamp AC/DC 24 V, 5 W
Lamp timer Automatic illumination with timer for lamp (30S)
Inherent filtration 1.0 mmAl
Illuminant LED
Grid
Densities 40 lp/cm
Ratios 10:1
Size 18" × 18"
Focal distance 100 cm (Radiography table), 180 cm (Bucky stand)
Photography Table
Type Radiography table
Tabletop size 2300 mm × 800 mm x 60 mm
Load-bearing 300 kg
Floating front and back 740 mm ±3%
Floating left and right 210 mm ±3%
FPD tray movement range 650 mm ±3%
Column stand movement
Tube stand
Up-down movement (to photography table) 1500 mm ±3%
Stand left-right movement 1900 mm ±3%
Rotational angles of stand +180°～-180°
Back stand
Detector vertical movement range (distance between detector center and ground) 1500 mm ±3%
The lowest point of the detector center relative to the ground ≤ 46 cm
Automatic tracking function Yes, electric correspondence between the X-ray tube and flat panel detector
Workstation
Monitor 23" LCD Dell brand
CPU ≥ 2.8 GHz
Memory ≥ 4 GB
HDD ≥ 1 TB
DICOM3.0 Query for integration with any PACS
Functions Import/export function
Image info
Management of patient info
Post processing
Measurement etc.
Console
Control room console 10.4 inch LCD color touch screen console for exposure parameter setting and exposure
Controller Wired controller for electric movement
X-Ray Imaging
Head radiograph
Head radiograph
Limb radiograph
Limb radiograph
Abdominal radiograph
Abdominal radiograph
Lumbar radiograph
Lumbar radiograph
Chest radiograph
Chest radiograph
Main Parts

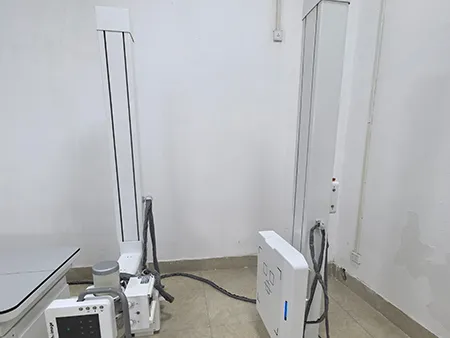

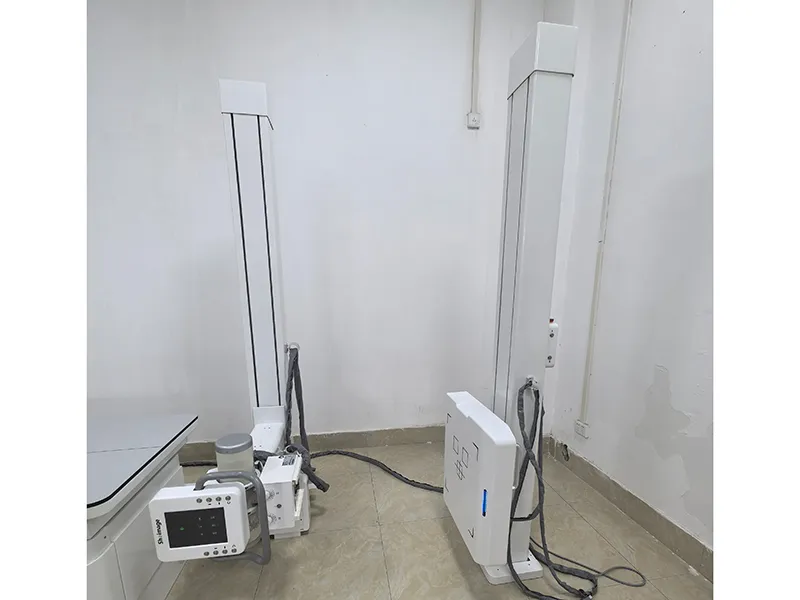

FPD Compartment on Chest Stand
  • FPD Compartment on Chest Stand:
    Highly mobile, ensuring smooth and precise movement for optimal image capture.
  • Column and X-Ray Tube Rotation:
    Allows for flexible positioning, making it easy to adjust for different imaging needs.

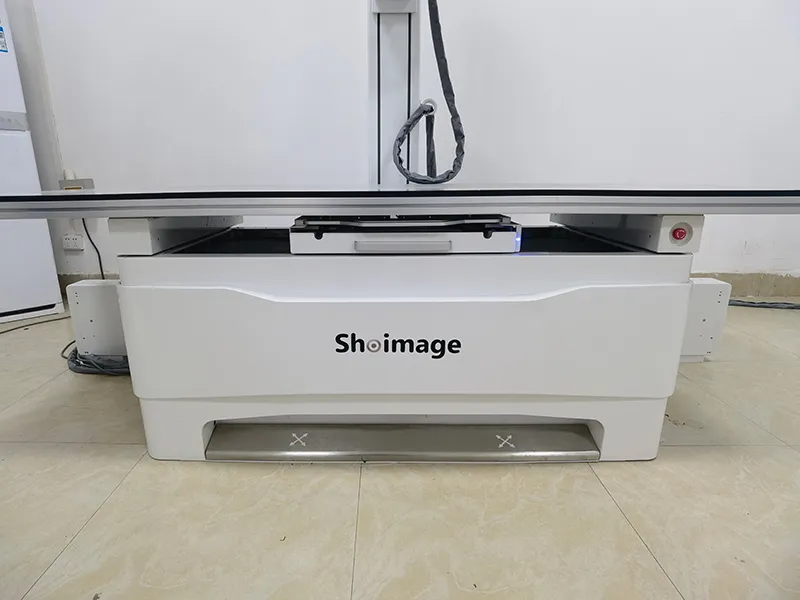

Four-Way Radiographic Table
Four-Way Radiographic Table

Supports patients weighing up to 300 kg, providing stability and ease of use.

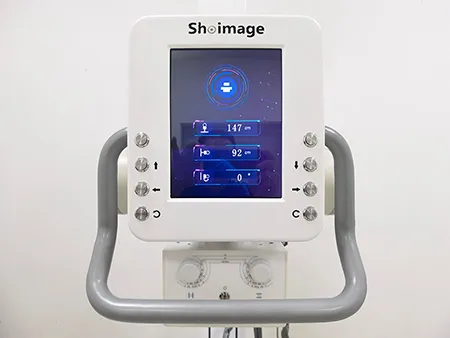

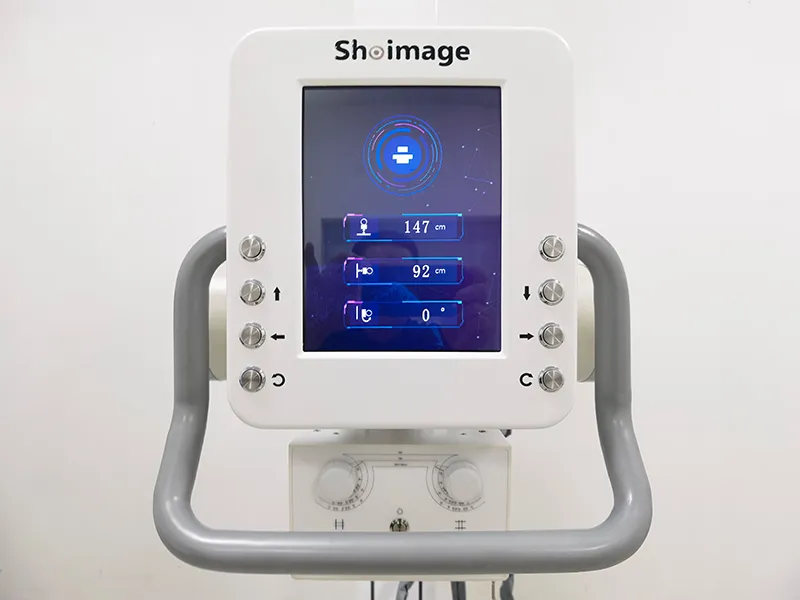

Operating Control Panel
Operating Control Panel

Features a 7-inch LCD color touchscreen, offering an intuitive and user-friendly interface.

High-Voltage Generator
High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

X-Ray Tube
X-Ray Tube

Can be configured with a TOSHIBA tube option, providing enhanced imaging performance

Flat Panel Detector (FPD)
Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

Dell 23-Inch Desktop Workstation
Dell 23-Inch Desktop Workstation

Provides a powerful and efficient platform for image processing and management.

10.4-Inch Touchscreen Exposure Control Panel
10.4-Inch Touchscreen Exposure Control Panel

Offers precise and convenient control over exposure settings.
