SHO-DDX05 Floor-mounted Digital X-ray Machine
SHO-DDX05 Floor-mounted Digital X-ray Machine
SHO-DDX05 Floor-mounted Digital X-ray Machine
SHO-DDX05 Floor-mounted Digital X-ray Machine

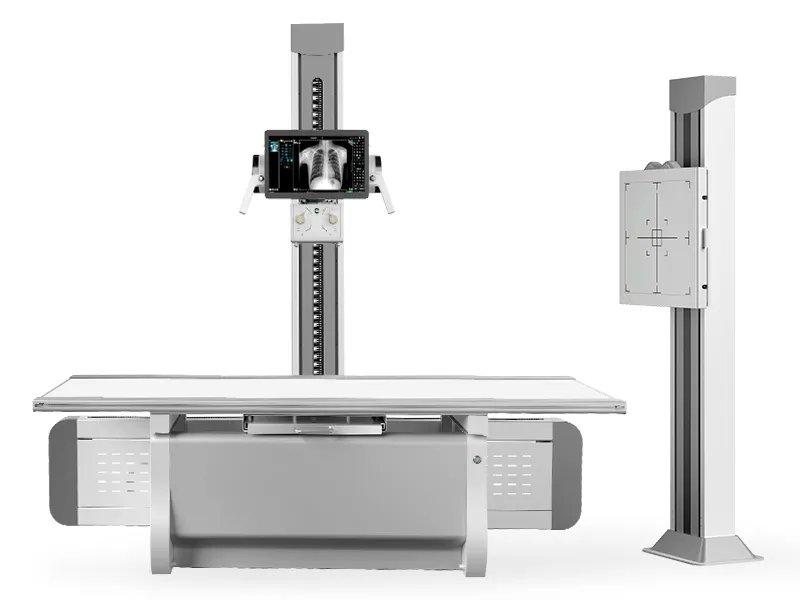

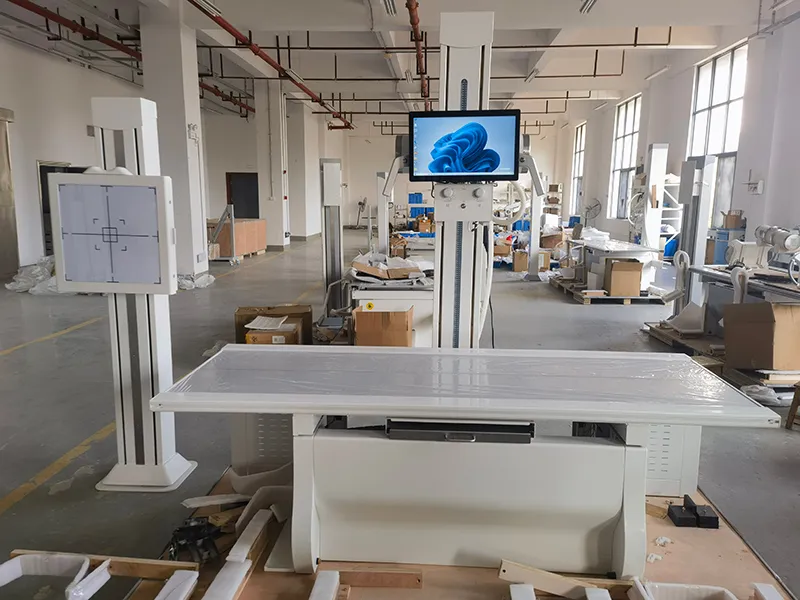

This floor-mounted digital X-ray radiography machine integrates a floor-mounted examination table with a wall-mounted chest stand, creating a practical and efficient imaging workspace. Its smart structural design, smooth mechanical movement, and user-friendly controls allow radiographers to position patients easily and perform a wide range of projections.

As a high-end digital radiography platform widely used across hospitals of different levels, it supports standard, lateral, and oblique imaging of the head, chest, abdomen, lumbar spine, and extremities—meeting the needs of routine clinical examinations.

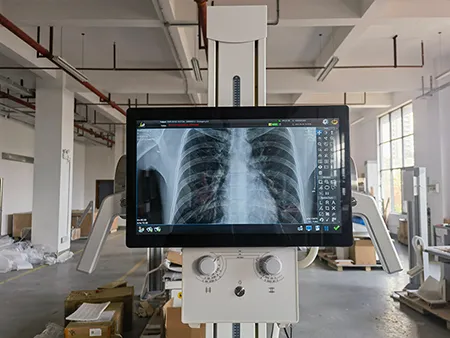

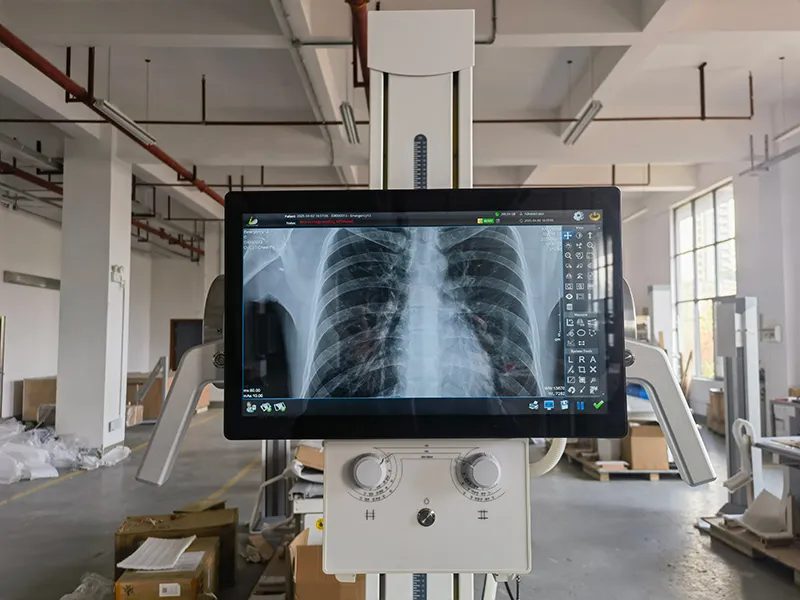

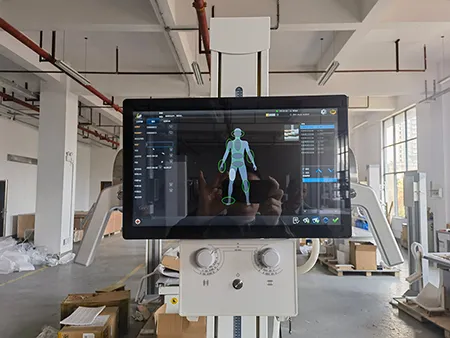

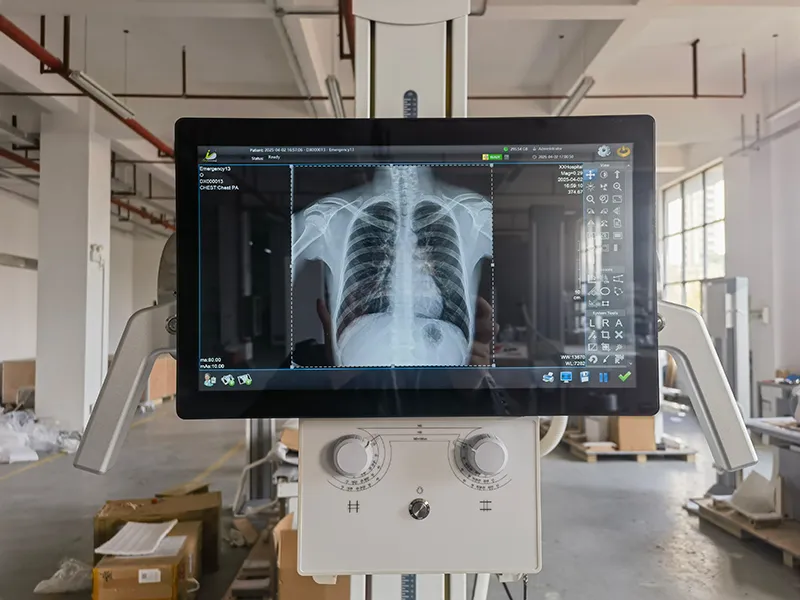

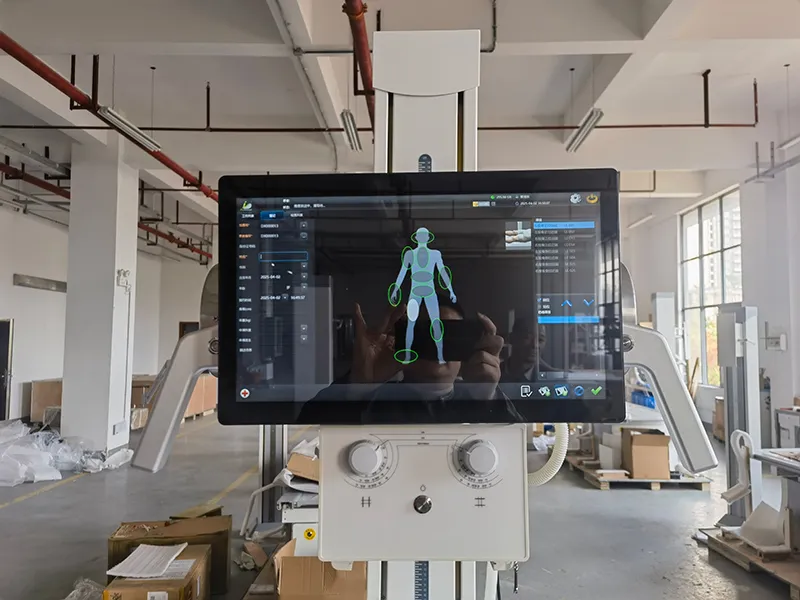

The system features a large 16-inch touchscreen control panel that combines exposure parameter settings, positioning adjustments, and real-time image display in one interface. This synchronized workflow between the workstation and display screen enhances operational efficiency and improves the overall imaging experience.

Features
  • High-speed tube rotation and excellent thermal management enable continuous clinical operation with extended system lifespan.
  • A high-frequency X-ray generator provides strong power output and delivers stable, high-quality radiation for a wide range of examinations.
  • An intelligent high-voltage control system integrates multiple automatic protection functions to support safe, reliable operation in daily clinical workflows.
  • The latest a-Si CsI flat panel detector offers high conversion efficiency, producing clear digital images while keeping radiation dose low.
  • An advanced digital image processing system includes comprehensive post-processing tools designed to meet diverse diagnostic requirements.
Specifications
Ambient Conditions
Ambient temperature 10℃～40℃
Relative humidity 30％～75％
Atmospheric pressure 70～106 kPa
Main head 16 inch touch screen control panel
X-ray Generator
Output power (kW) 20 32 40 50 65
Current (mA) 10-320 10-400 10-500 10-630 10-800
Voltage (kV) 40-125 40-125 40-125 40-150 40-150
mAs 0.1-320 0.1-400 0.1-400 0.1-630 0.1-630
Exposure time (s) 0.002~6.3
APR program Equipped
Intelligent protection system It features a self-protection system that triggers an alarm and displays a fault code when an issue is detected.
X-ray Tube
Model SHO-DDX05 Series
Output power 20 kW 32 kW 40 kW 50 kW 65 kW
Anode type Rotating Anode Rotating Anode Rotating Anode Rotating Anode Rotating Anode
Revolving speed of anode 50 Hz: 2800 rpm 60 Hz: 3000 rpm 50 Hz: 2800 rpm 60 Hz: 3000 rpm 50 Hz: 2800 rpm 60 Hz: 3000 rpm 50 Hz: 2800 rpm 60 Hz: 3200 rpm 50 Hz: 2800 rpm 60 Hz: 3200 rpm
Focus size 1.0/2.0 1.0/2.0 1.0/2.0 0.6/1.2 0.6/1.2
Anode heat storage capacity 150 kHU 150 kHU 150 kHU 300 kHU 400 kHU
Maximum Anode heat Dissipation 475 W 475 W 475 W 750 W 1000 W
Housing heat storage capacity 900 kJ 900 kJ 900 kJ 900 kJ 1000 kJ
X-ray Detector (Wired Flat Panel Detector)
Type Amorphous Silicon
Scintillator Cesium Iodide
Active area 17x17 Inch (43 cm * 43 cm)
Active pixels 3072*3072
Pixel pitch 139 um
A/D conversion 16 bits
DQE ≧70%
Spatial resolution 36 lp/cm
Acquisition time ≤2 s
Collimator
Type Manual Collimator
Max. window 440 mm x 440 mm（SID=100 cm）
Lamp AC/DC 24 V, 5 W
Lamp timer Automatic illumination with timer for lamp (30 s)
Inherent filtration 1.0 mmAl
Illuminant LED
Grid
Densities 40 lp/cm
Ratios 10:1
Size 18" × 18"
Focal distance 100 cm (Radiography table), 180 cm (Bucky stand)
Photography Table
Type Radiography table
Tabletop size 2100 mm x 800 mm x 60 mm
Load-bearing 300 kg
Floating front and back 120 mm / 120 mm
Floating left and right 380 mm / 380 mm
Column stand movement
Tube stand
Up-down movement（to photography table） 28~128 cm
Stand left-right movement 78.5~157 cm
Rotational angles of stand +180°～-180°
Rotational angles of tube ±90°
Back stand
FPD cassette Up-down movement 4~174 cm
Workstation
Monitor 23" LCD Dell brand
CPU ≥ 2.8 GHz
Memory ≥ 4 GB
HDD ≥ 1 TB
DICOM3.0 Query for integration with any PACS
Functions Import / export function
Image info
Management of patient info
Post processing
Measurement, etc.
X-Ray Imaging
Head radiograph
Head radiograph
Limb radiograph
Limb radiograph
Abdominal radiograph
Abdominal radiograph
Lumbar radiograph
Lumbar radiograph
Chest radiograph
Chest radiograph
Main Parts
FPD Compartment on Chest Stand
  • FPD Compartment on Chest Stand:
    Highly mobile, ensuring smooth and precise movement for optimal image capture.
  • Column and X-Ray Tube Rotation:
    Allows for flexible positioning, making it easy to adjust for different imaging needs.
Four-Way Radiographic Table
Four-Way Radiographic Table

Supports patients weighing up to 300 kg, providing stability and ease of use.

Operating Control Panel
Operating Control Panel

Features a 7-inch LCD color touchscreen, offering an intuitive and user-friendly interface.

High-Voltage Generator
High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

X-Ray Tube
X-Ray Tube

Can be configured with a TOSHIBA tube option, providing enhanced imaging performance

Flat Panel Detector (FPD)
Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in wired and wireless options. The wireless FPD comes with a dedicated battery charger, and the image acquisition software is also supplied by Iray.

Dell 23-Inch Desktop Workstation
Dell 23-Inch Desktop Workstation

Provides a powerful and efficient platform for image processing and management.

10.4-Inch Touchscreen Exposure Control Panel
10.4-Inch Touchscreen Exposure Control Panel

Offers precise and convenient control over exposure settings.
