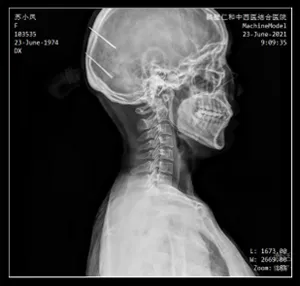

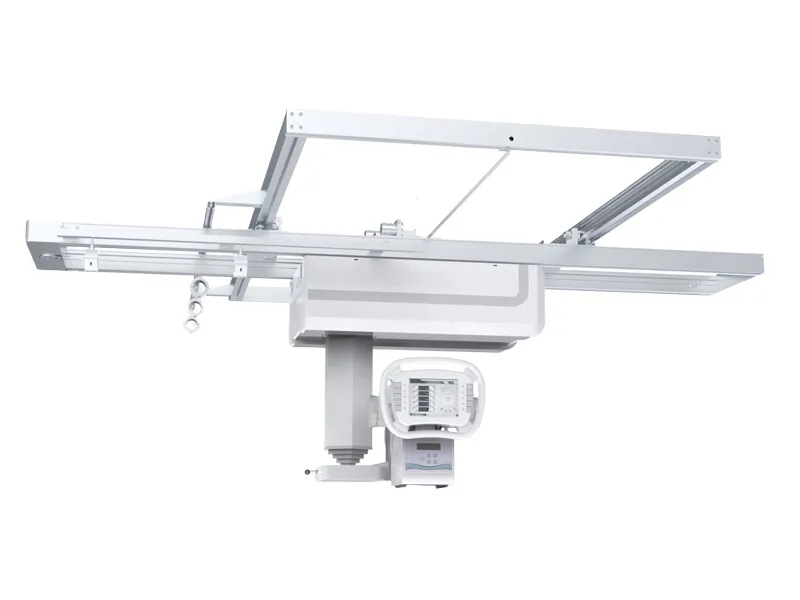

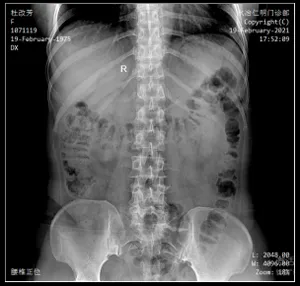

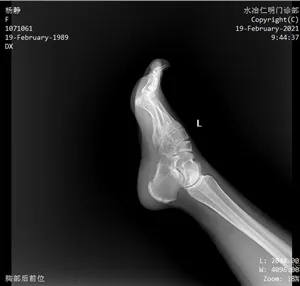

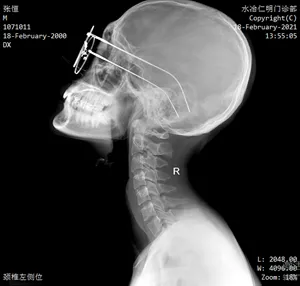

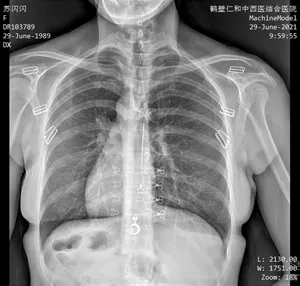

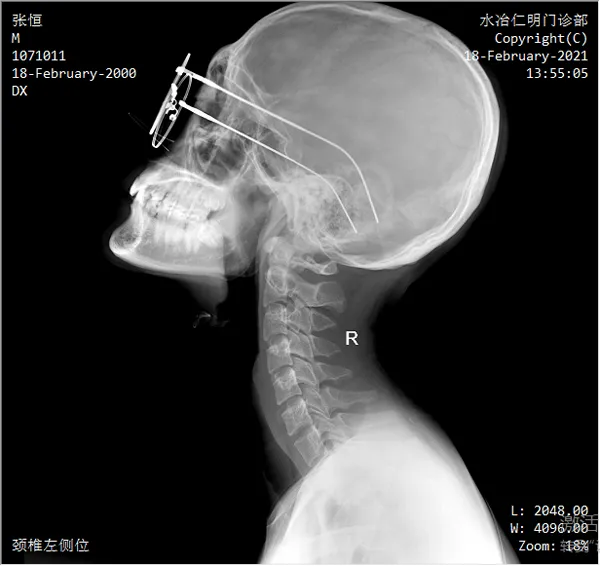

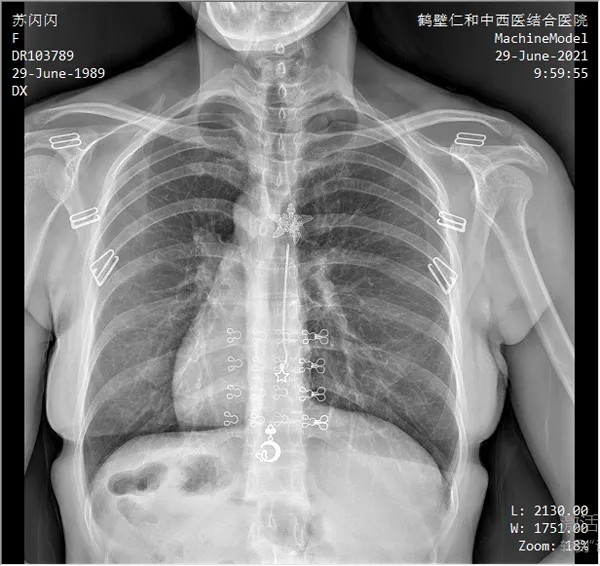

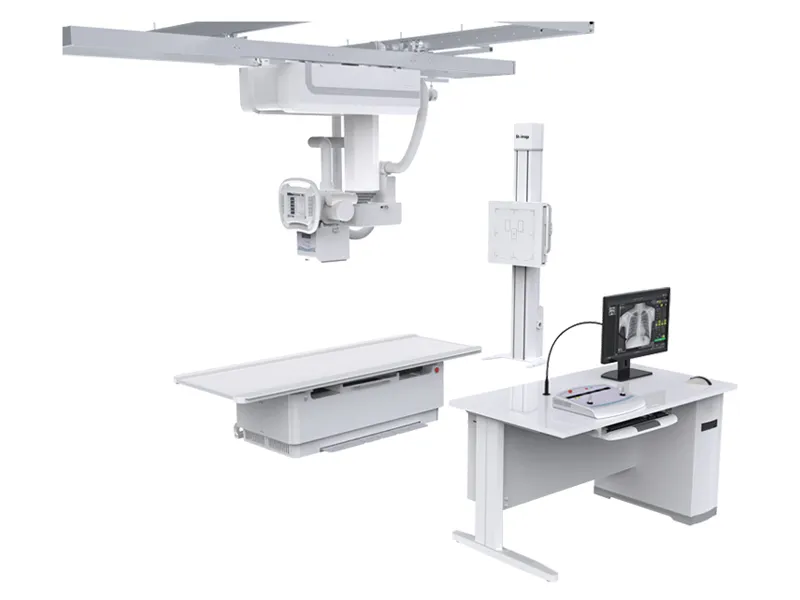

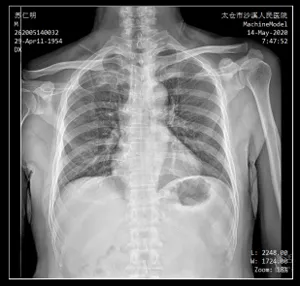

The SHO-CMX01-New ceiling-mounted digital radiography machine gives you reliable, high-quality imaging for chest, limbs, abdomen, and lumbar spine exams. Whether you're working in a radiology department, medical center, diagnostic center, health examination center, orthopedics, or trauma unit, this machine is designed to support all your radiographic needs. You’ll appreciate its ability to handle conventional imaging, special radiography with image stitching, precise visual radiography, large-area fracture radiography, and comprehensive physical examination imaging. It’s built to serve every clinical department in your general radiology setup.

Your machine comes equipped with a powerful 65.5kW generator, a trusted imported Canon high-speed X-ray tube for consistent, long-term use, and dual flat panel detectors (wired and wireless) that give you ultra-clear images. The motorized electric collimator helps you quickly adjust the beam, saving you time with each exam.

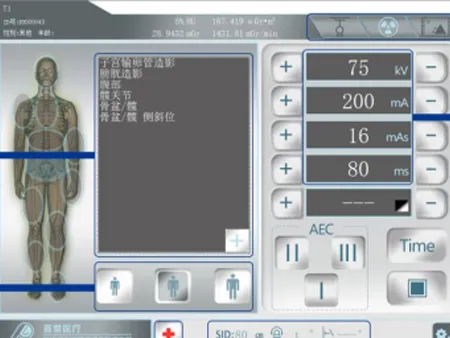

You’ll also find the 10.4-inch large touchscreen control panel and workstation with monitor, computer, joystick controller, foot brake, and image processing software make your daily work smooth and efficient. Everything is designed so you can focus on your patients and deliver accurate, dependable diagnostics every time.

Item	Content	Technical Parameter
Power	Voltage	380 V
	Frequency	50 Hz±1Hz
	Capacity	105 kVA
	Internal Resistance	≤ 0.17 Ω

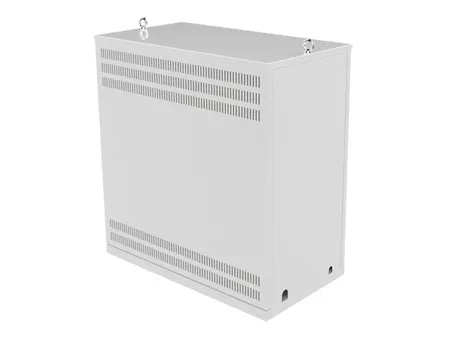

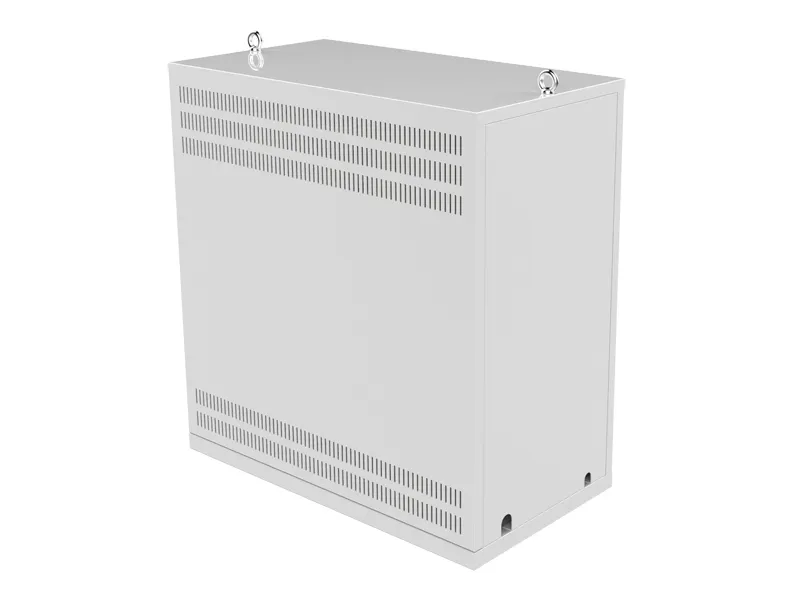

X-Ray Generator	Power	65.5 kW
	Inverter Frequency	500 kHz±20%
	Radiography Tube voltage	40 kV - 150 kV
	Radiography Tube current	10 mA - 80 0mA
	Radiography Exposure time	1.0~10000 ms
	Radiography mAs	0.1 mAs - 800 mAs
Collimator	Brightness	>100 Lux
	Visible light illumination	5 s ~ 45 s (every step 5s).
	Filter	≥1 mmAL

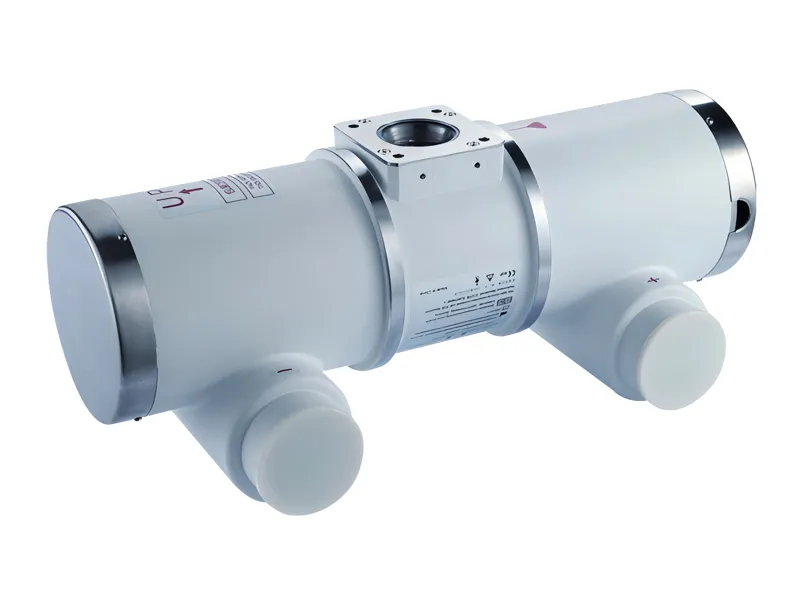

X-Ray Tube	Model:	E7254FX
	Tube focus: big/small	1.2 mm / 0.6 mm
	Input power	180 Hz: Big focus 102 kW Small focus 40 kW
	Anode thermal capacity	285kJ (400 kHU)
	Rotary anode speed	9700 rpm (180Hz)
	Component thermal capacity	950 kJ (1339 kHU)
	Target angle	12°
	Fixed filter	0.8 mm Al / 75 kV

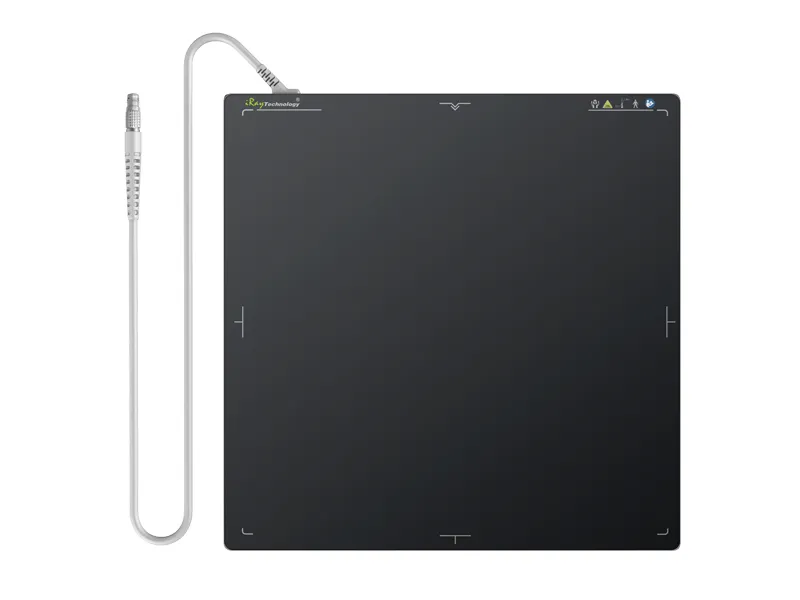

Flat Panel Detector*2 PLD1717X+PLD1717V3	Active area	427 (H) mm × 427(V) mm
	Pixel pitch	139 μm
	Pixel matrix	3072 (H) ×3072 (V)
	Limiting resolution	Unattenuated body mode ≥ 3.7 lp/mm 2 5mm thick aluminium attenuated body mode ≥ 3.4 lp/mm
	A / D transition	16 bit
	Acquisition speed	Up to 30 fps
	Energy range	40 - 150 kVp

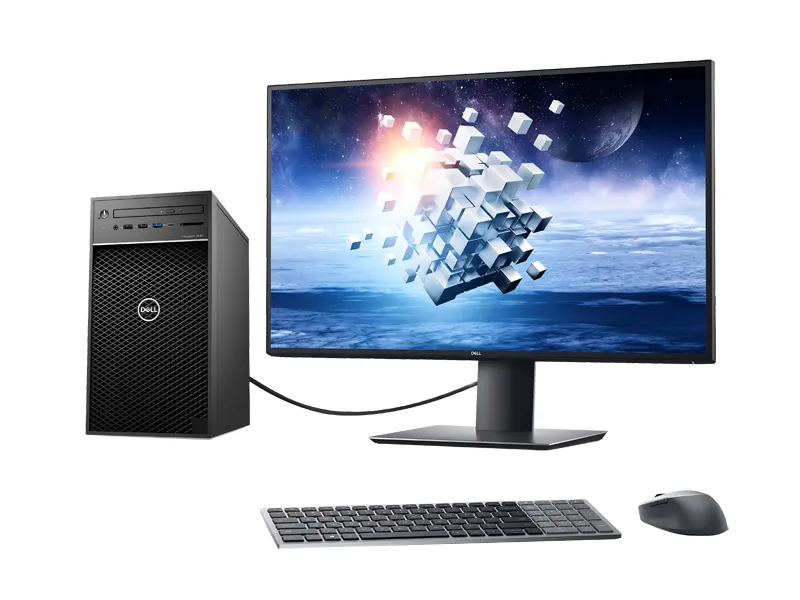

Computer Workstation	19inch monitor +computer +keyboard +mouse +speaker
	Joystick remote controller
	Foot brake control system
	Desk
	Image processing software

• Registration: Includes regular registration, emergency registration, adding agreements, adding items, clearing information, and starting inspections.
• Work list: View list information, search for patients to be examined, refresh the to-be-examined list, delete examinations, and adjust display column settings. Start inspection or emergency registration as needed.
• Exam list: View list information, display and search examined patient data, delete images, store images, burn CDs, add items, adjust display column settings, and modify examination information.
• Patient size options: Thin adults, adults, and larger adults.
• Photography parameter settings: Adjust exposure mode, frame rate setting, kVp, mA, ms, mAs, AEC, and focus selection.
• Perspective parameter settings: Configure exposure mode, frame rate setting, kVp, mA, ABS, and time reset.

• Browsing tools: Zoom, flip horizontal, flip vertical, rotate left 90 degrees, rotate right 90 degrees, zoom in, zoom out, return to original size, move image, invert color, adaptive size, ROI, magnifier, default window width and window level, ROI window width and window level, visible window width and window level, point gray value, advanced processing, and ellipse gray measurement.
• Measurement tools: Arrow, cardiothoracic ratio (CTR), distance measurement, angle measurement, and spine measurement
