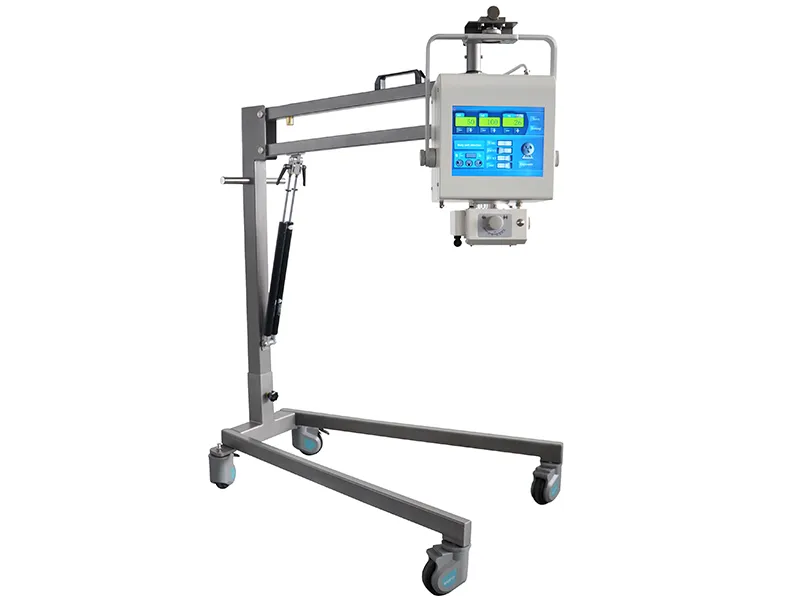

BASIC Portable X-Ray Machine
Portable digital radiography unit with adjustable mobile trolley
Request a Quote
-

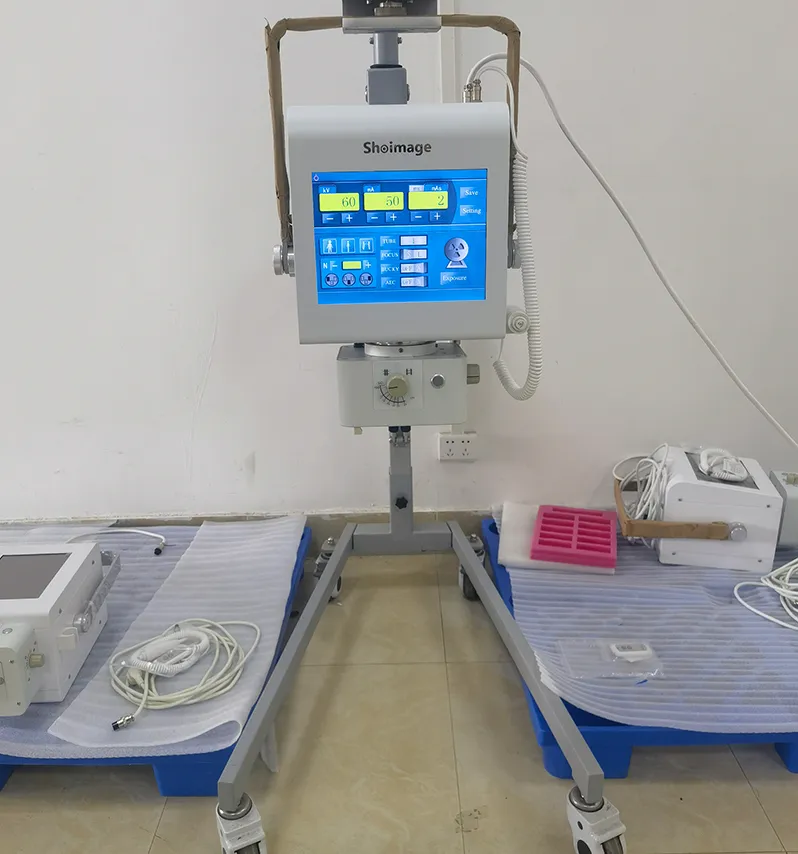

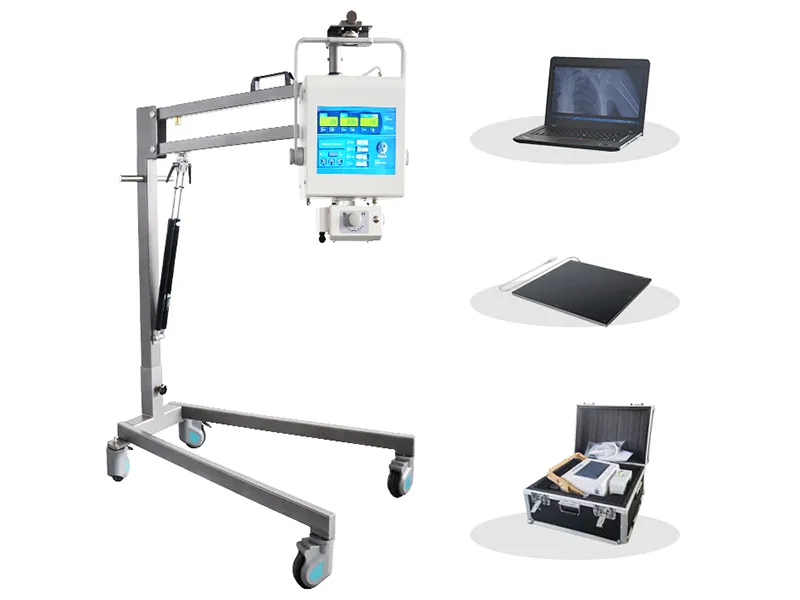

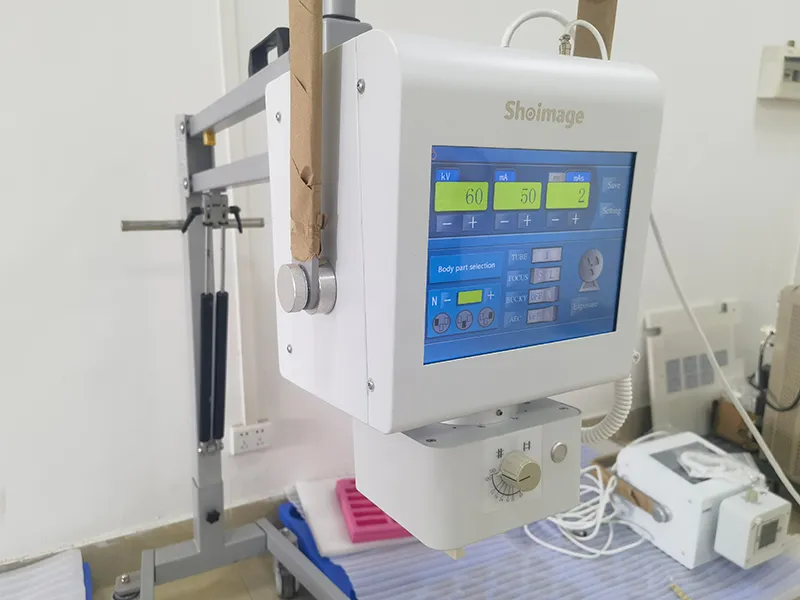

The BASIC portable X-ray machine is our standard portable X-ray apparatus, offering multiple power options (5kW, 5.6kW, and 8kW) to suit your imaging needs. Designed for ease of use and flexibility, it features a 10.4-inch color touchscreen, an adjustable mobile trolley, a 17-inch × 17-inch wired flat panel detector, and a 15.6-inch Dell laptop for seamless operation.
With three exposure control options, wired hand switch, wireless remote, and on-screen exposure button, you get the convenience and precision needed for efficient imaging.
| Model | | | |
| Power (kW) | 5 | 5.6(with battery) | 8 |
| High voltage Generator | |||
| kV Range (kV) | 40-110 | 40-125 | 40-125 |
| mAs range (mAs) | 0.2-200 | 0.1-200 | 0.1-200 |
| mA range (mA) | 20-100 | 10-100 | 10-100 |
| Working frequency | ≥40kHz | ||
| Communication mode | RS232 | ||
| Exposure time (s) | 0.01-4 | ||
| Exposure mode | Hand brake, wireless hand remote controller, touch screen button | ||
| X-ray tube | |||
| Anode heat storage | 56kHU | ||
| Focal spot (mm) | 1.8 | ||
| Anode Angle (°C) | 15 | ||
| Collimator | |||
| Power supply | AC/DC 24V±10% | ||
| Light type | LED 5W | ||
| Light delay time (s) | 30±2 | ||
| Illumination | ≥160Lux | ||
| Inherent filtration | 1.2mmAL@75kV | Dimension | |
| Main head unit (L×W×H) (mm) | 290×265×230 | 425×240×220 | 425×240×220 |
| Net weight(kg) | 19 | 18 | 18 |

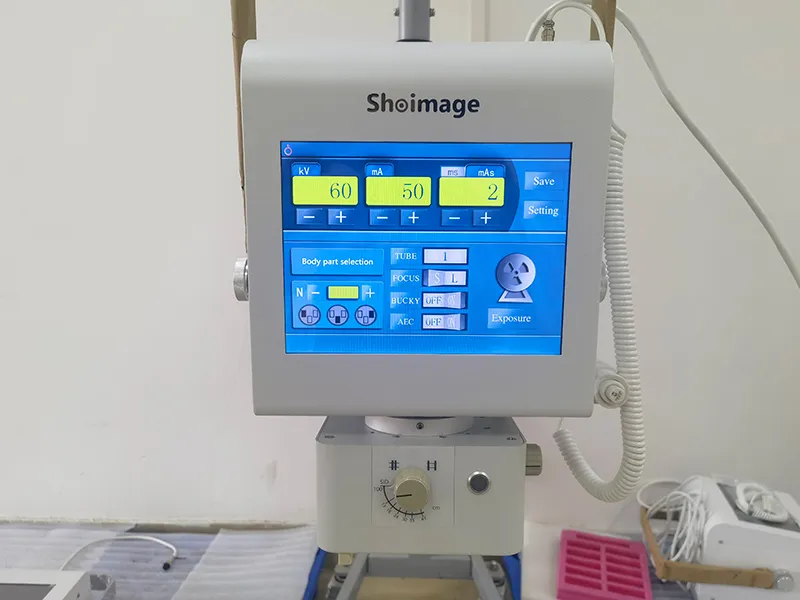

| Head screen | 10.4-inch LCD color touch screen | ||
| Trolley height adjustable range | 515-1810mm (from spot to floor) | ||
The following are the diverse applications of the BASIC portable X-ray machine across various medical and veterinary fields:
Looking for a versatile, portable X-ray machine? Contact us today to learn more about this radiographic equipment!
Please submit your information to take the first step in finding the radiography equipment solution you need to enhance productivity, adaptability, and patient satisfaction.
Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.
We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.
As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.
