SHO-PXU Medical Imaging
UPGRADED Portable X-Ray Machine
Portable digital radiography unit with upgraded mobile trolley
Request a Quote
-

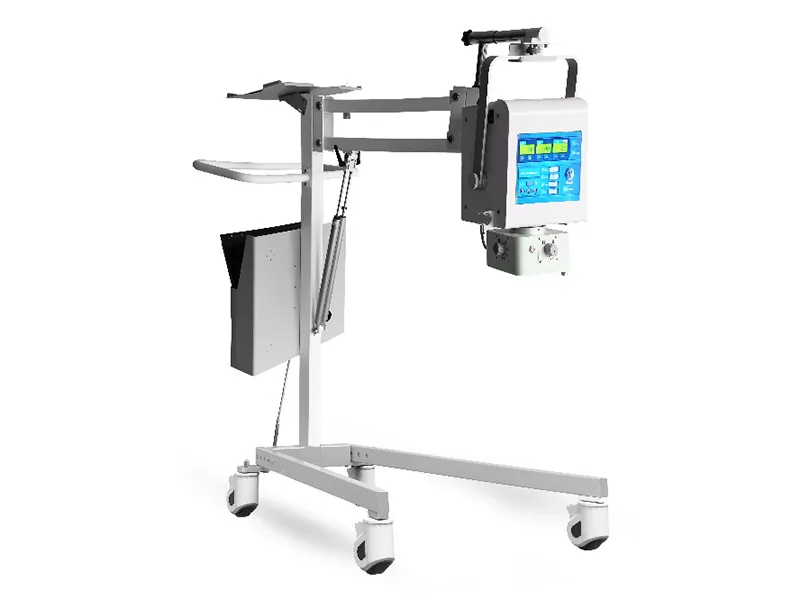

Our UPGRADED portable X-ray machine is a versatile portable radiographic equipment, offering 5kW, 5.6kW, and 8kW power options to meet your imaging needs. It features a 10.4-inch color touchscreen, an adjustable mobile trolley, a 17-inch × 17-inch wired flat panel detector (FPD), and a 15.6-inch Dell laptop for seamless operation.

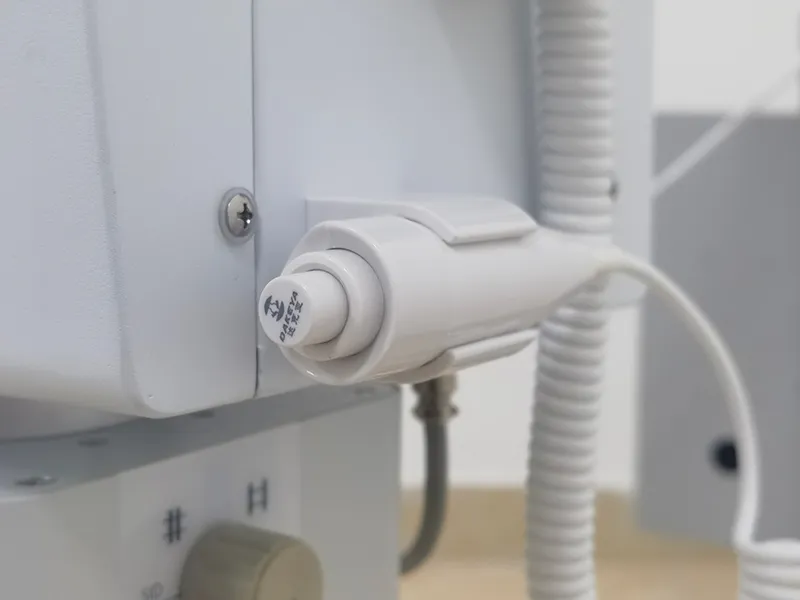

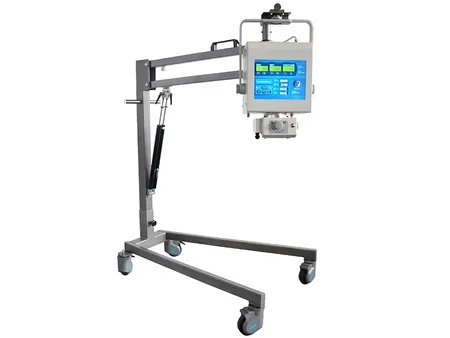

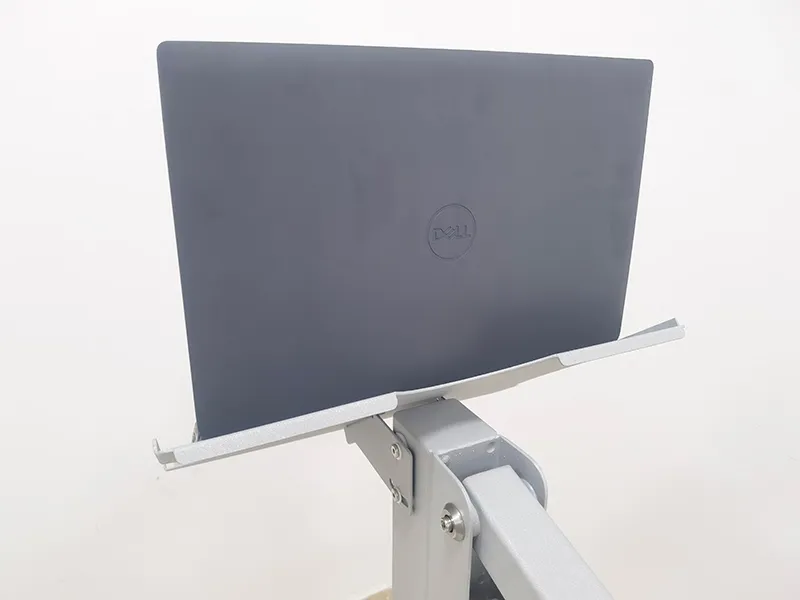

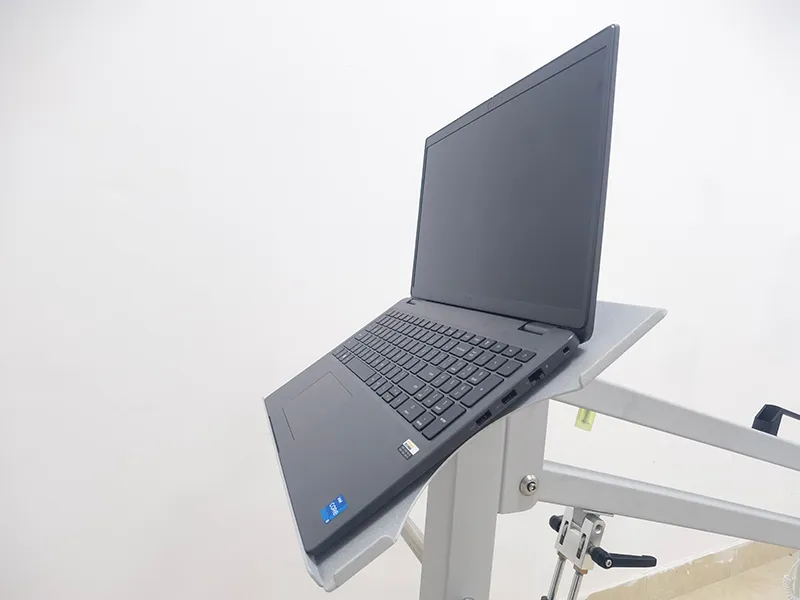

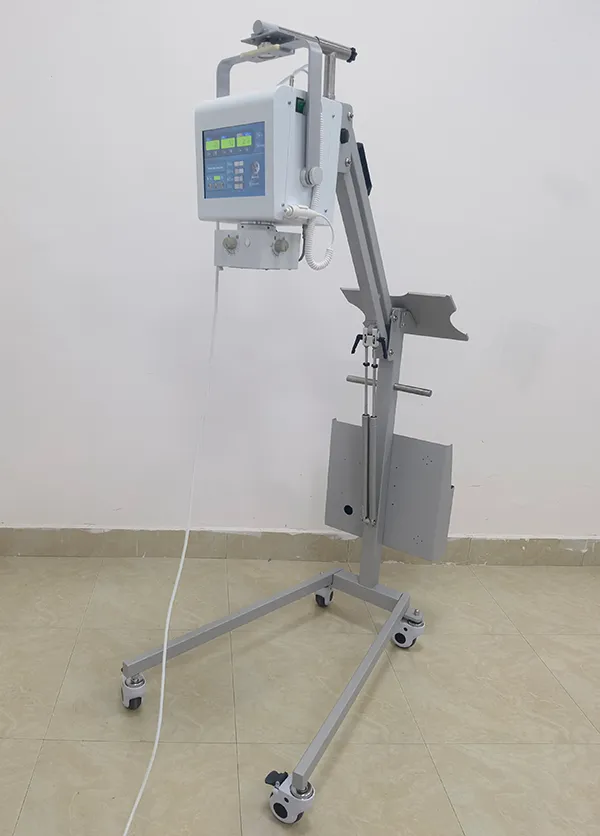

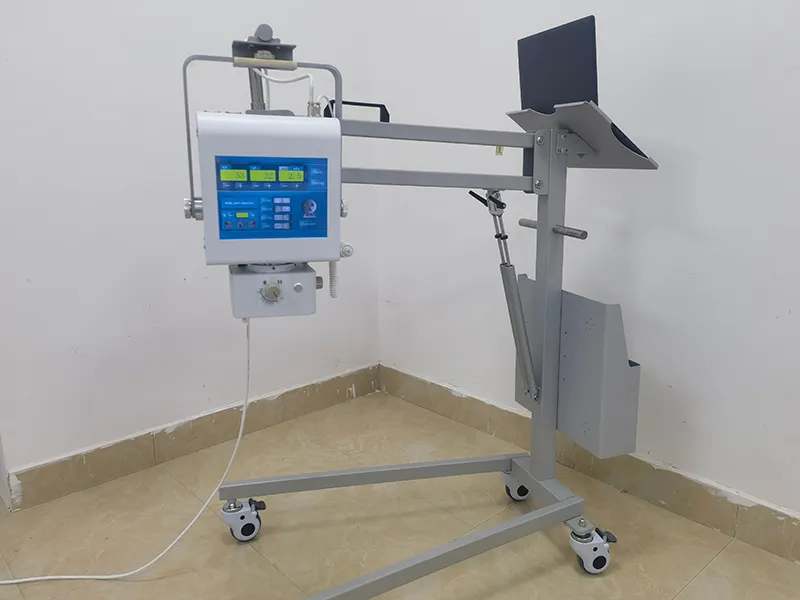

Like the BASIC X-ray apparatus, it allows easy exposure control through a wired hand switch, wireless remote, and on-screen exposure button. However, the UPGRADED X-ray apparatus stands out with its enhanced trolley design, which includes a dedicated storage compartment for the flat panel detector and a laptop stand, improving convenience and workflow.
| Model | | | |
| Power (kW) | 5 | 5.6(with battery) | 8 |
| High voltage Generator | |||
| kV Range (kV) | 40-110 | 40-125 | 40-125 |
| mAs range (mAs) | 0.2-200 | 0.1-200 | 0.1-200 |
| mA range (mA) | 20-100 | 10-100 | 10-100 |
| Working frequency | ≥40kHz | ||
| Communication mode | RS232 | ||
| Exposure time (s) | 0.01-4 | ||
| Exposure mode | Hand brake, wireless hand remote controller, touch screen button | ||
| X-ray tube | |||
| Anode heat storage | 56kHU | ||
| Focal spot (mm) | 1.8 | ||
| Anode Angle (°C) | 15 | ||

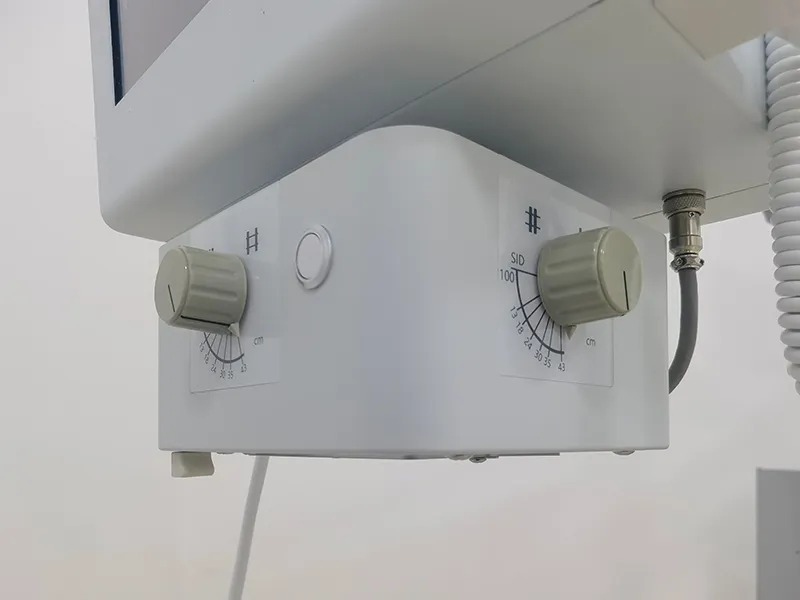

| Collimator | |||
| Power supply | AC/DC 24V±10% | ||
| Light type | LED 5W | ||
| Light delay time (s) | 30±2 | ||
| Illumination | ≥160 Lux | ||
| Inherent filtration | 1.2mmAL@75kV | ||
| Dimension | |||

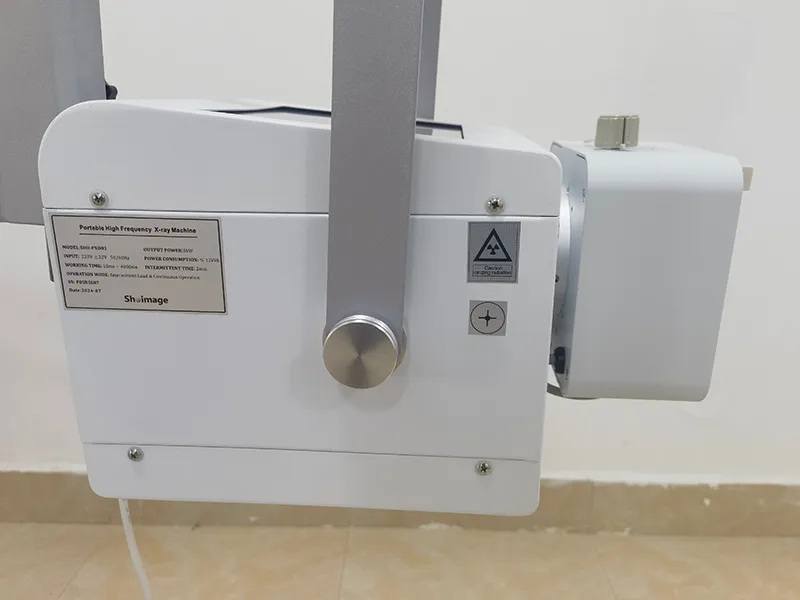

| Main head unit (L×W×H) (mm) | 290×265×230 | 425×240×220 | 425×240×220 |
| Net weight (kg) | 19 | 18 | 18 |

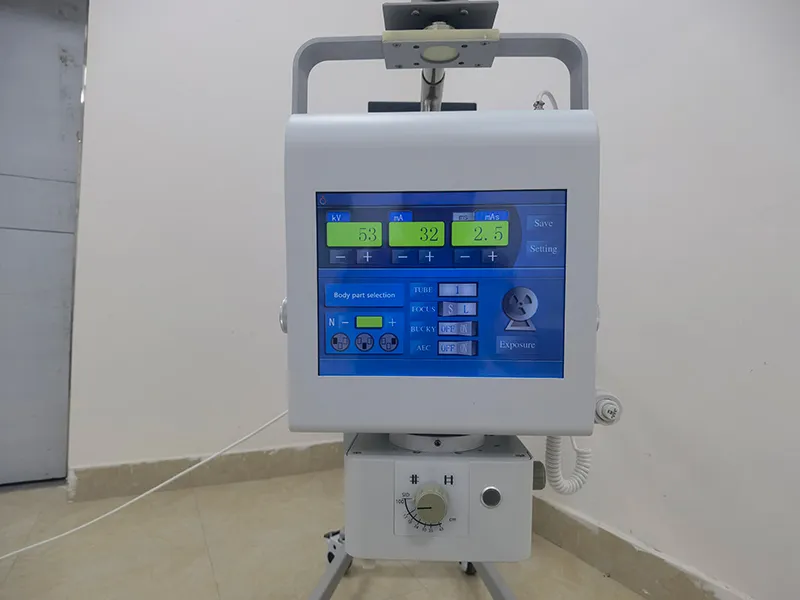

| Head screen | 10.4-inch LCD color touch screen | ||
| Trolley height adjustable range (mm) | 515-1810 (from spot to floor) | ||
The UPGRADED portable X-ray machine is utilized across various medical and veterinary fields, including:
Looking for an efficient and user-friendly portable X-ray solution? Contact us today for more details!
Please submit your information to take the first step in finding the radiography equipment solution you need to enhance productivity, adaptability, and patient satisfaction.
Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.
We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.
As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.
