SHO-PXF Medical Imaging

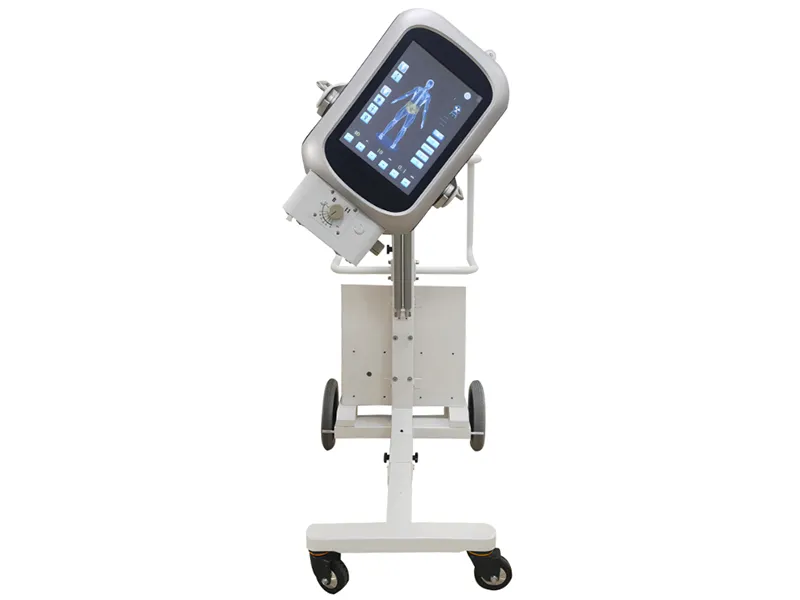

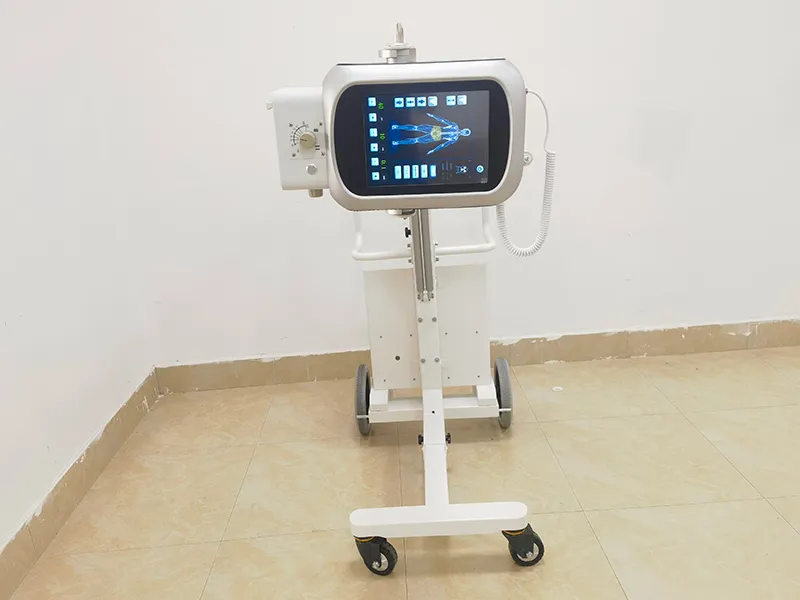

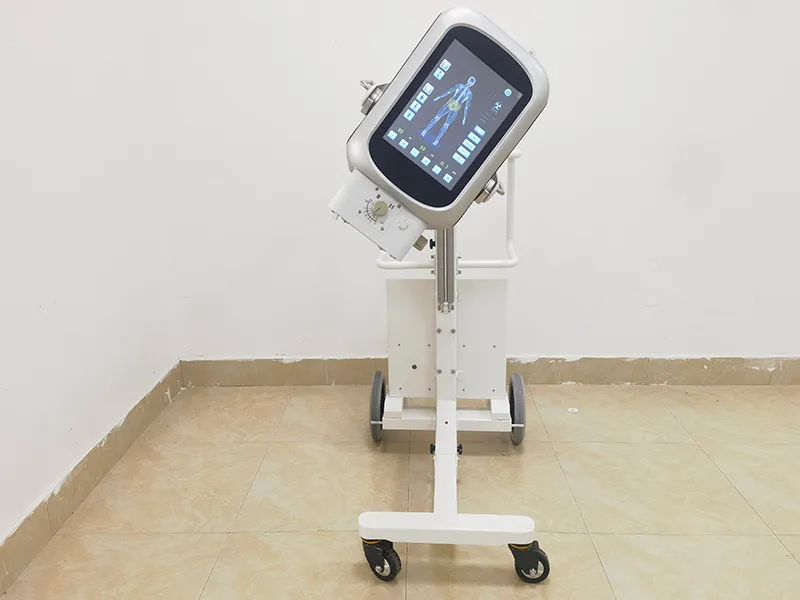

FANTASY Portable X-Ray Machine
Portable digital radiography unit with laser collimator and luxury mobile trolley
Request a Quote
-

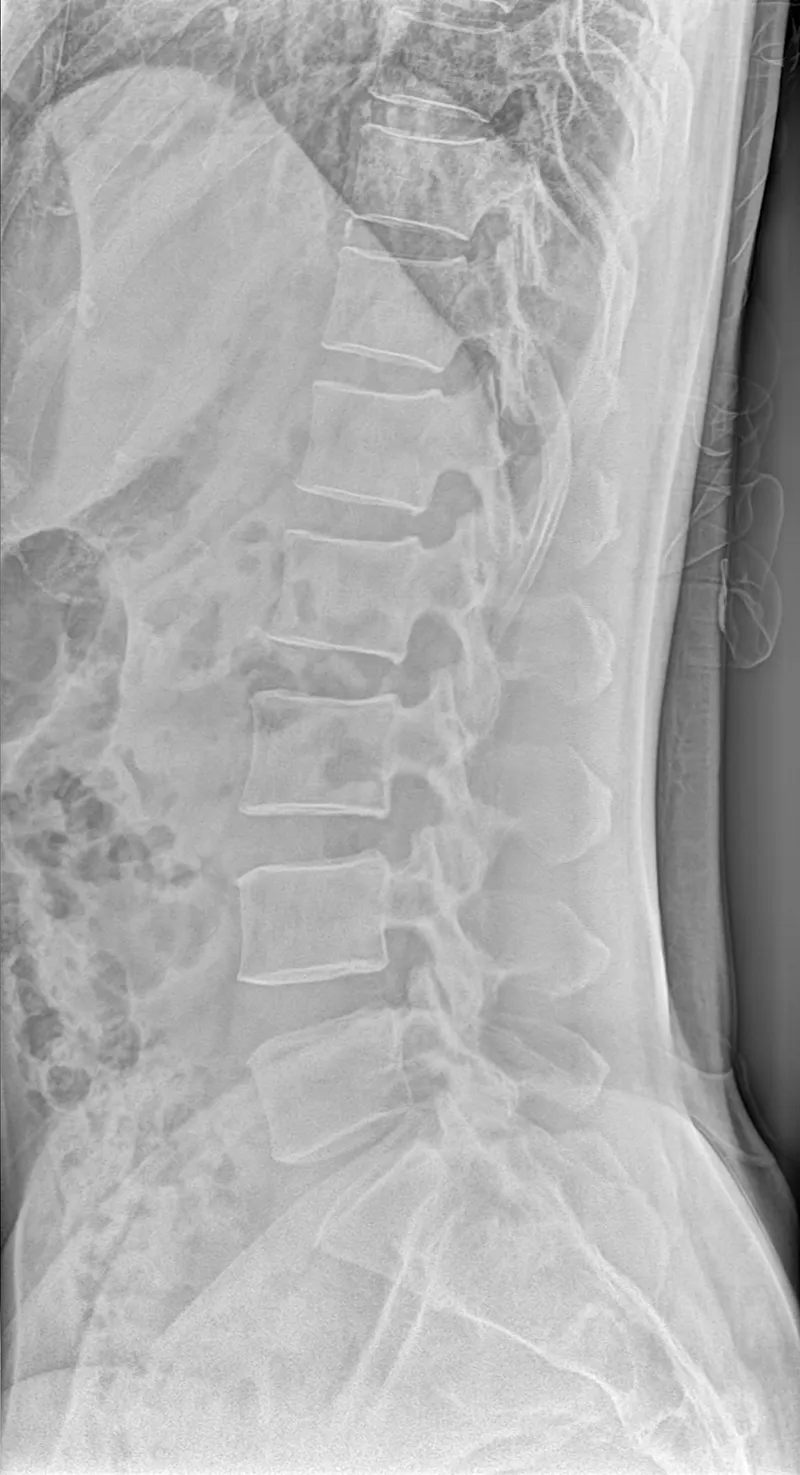

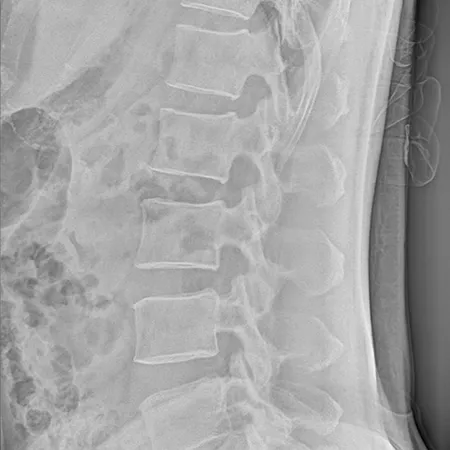

Designed for spinal and abdominal imaging, the FANTASY portable X-ray machine offers 8kW and 10kW power options. With a built-in laser collimator, it delivers exceptional image clarity, making it particularly effective for lumbar spine, abdomen, and other dense areas, even for patients over 200 kg.

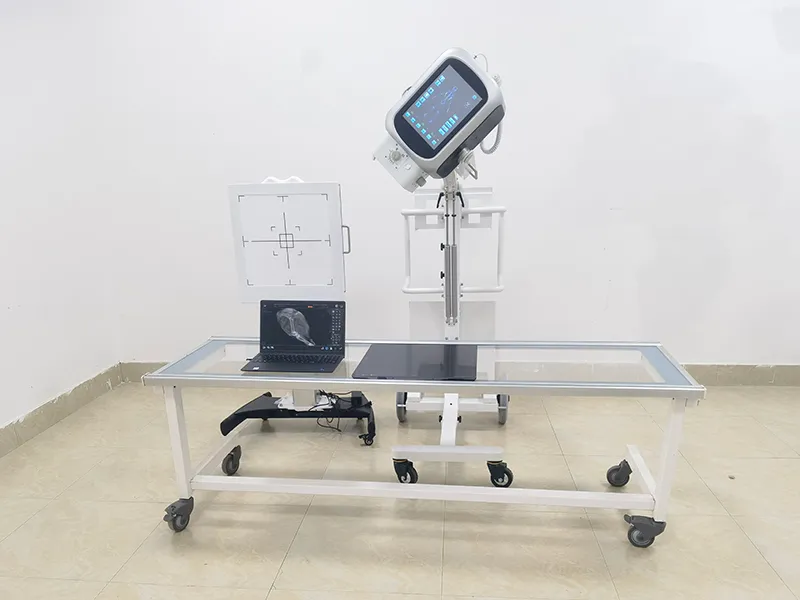

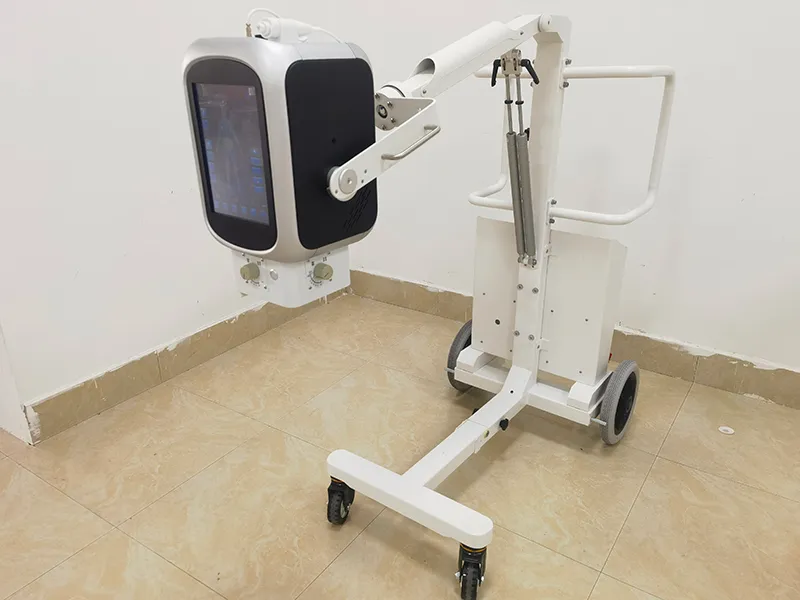

For ease of use and efficiency, this portable X-ray machine features a 10.4-inch color touchscreen, an adjustable trolley, and multiple exposure control options, including a wired hand switch, wireless remote, and on-screen exposure button. Additionally, it includes a 17-inch × 17-inch wired flat panel detector and a 15.6-inch Dell laptop, ensuring a smooth and efficient workflow.
| Model | | |
| Power (kW) | 8 (with battery) | 10 (with battery) |
| High voltage Generator | ||
| kV Range (kV) | 40-125 | 40-125 |
| mAs range (mAs) | 0.1-200 | 0.1-200 |
| mA range (mA) | 20-100 | 10-100 |
| Working frequency (kHz) | ≥40 | |
| Communication mode | RS232 | |
| Exposure time (s) | 0.01-4 | |
| Exposure mode | Hand brake, wireless hand remote controller, touch screen button | |
| X-ray tube | ||
| Anode heat storage (kHU) | 56 | |
| Focal spot (mm) | 1.8 | |
| Anode Angle (°C) | 15 | |
| Collimator | ||
| Power supply | AC/DC 24 V±10% | |
| Light type | Laser collimator | |
| Light delay time (s) | 30±2 | |
| Illumination | ≥160Lux | |
| Inherent filtration | 1.2mmAL@75 kV | |
| Dimension | ||

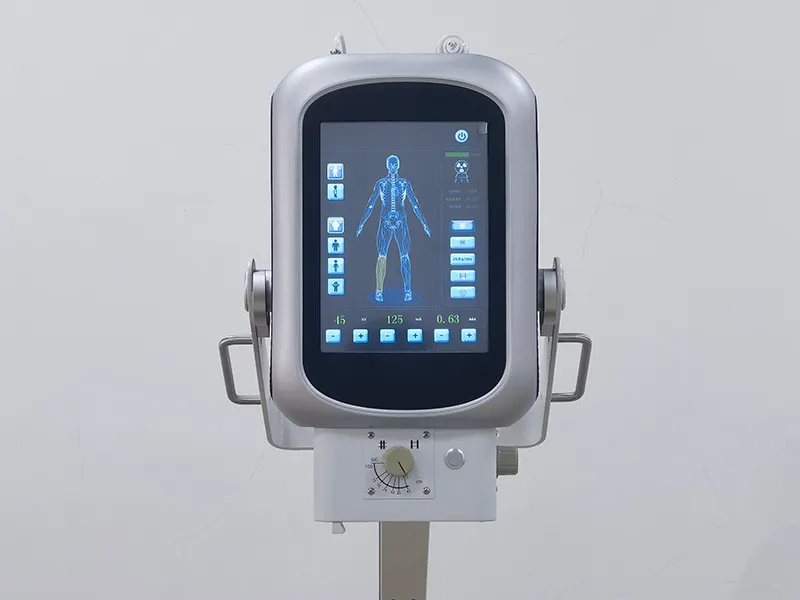

| Head screen | 10.4-inch LCD color touch screen | |
| Trolley height adjustable range | 515-1810 mm (from spot to floor) | |

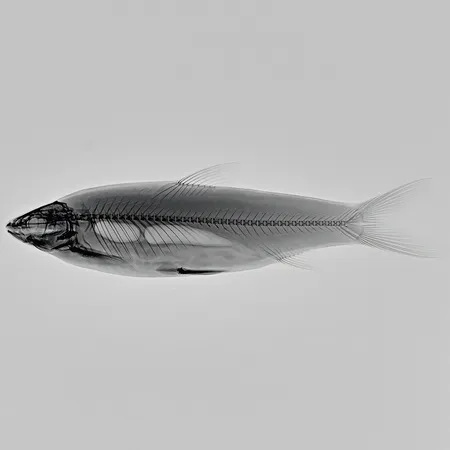

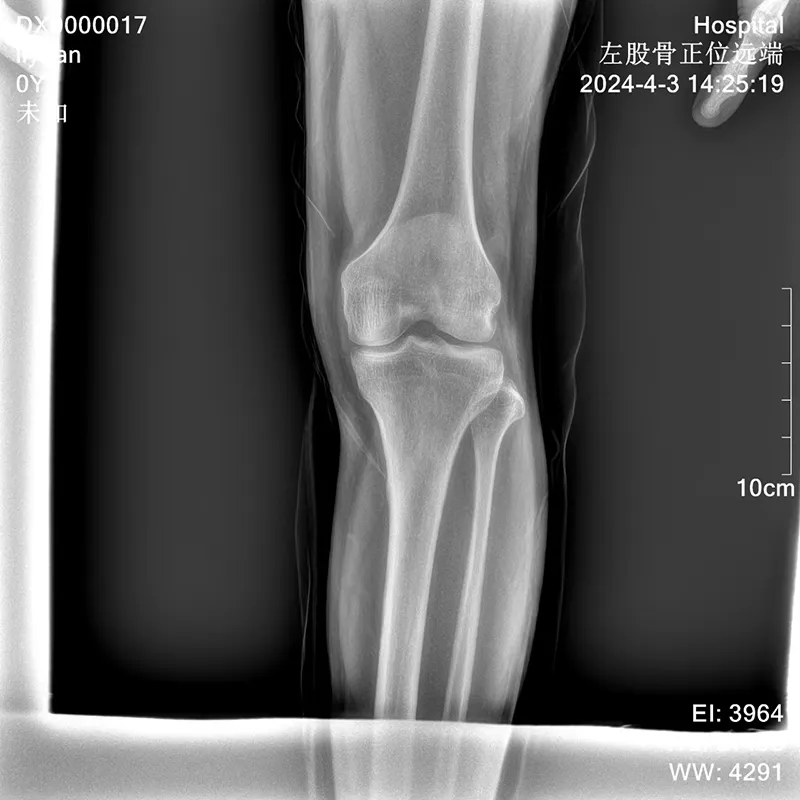

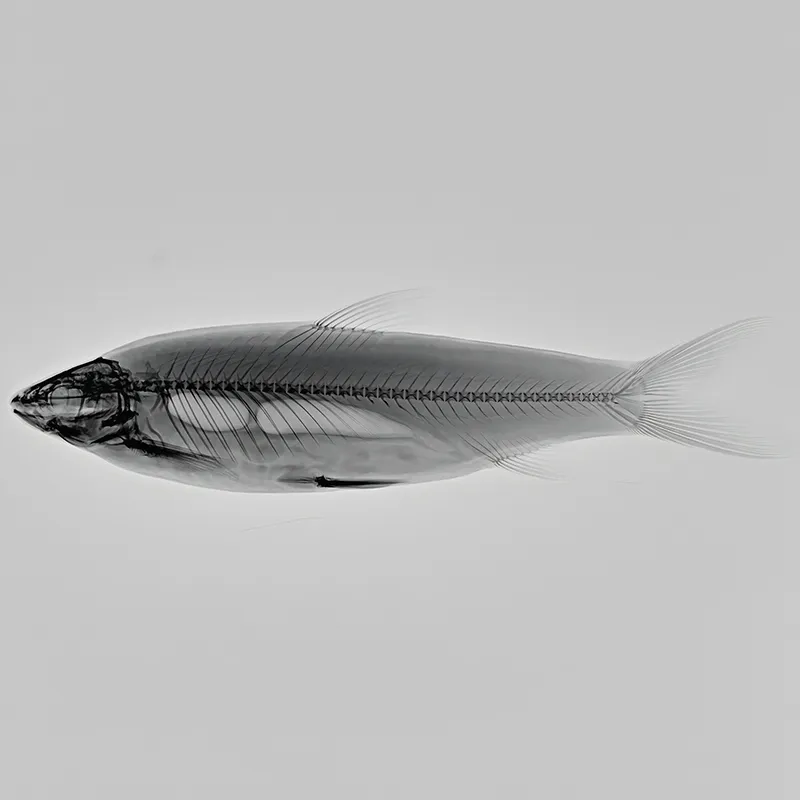

The following are the diverse applications of the FANTASY portable X-ray machine across various medical and veterinary fields:
Need a high-power portable X-ray machine for advanced imaging? Contact us today for more details!
Please submit your information to take the first step in finding the radiography equipment solution you need to enhance productivity, adaptability, and patient satisfaction.
Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.
We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.
As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.
