SHO-PXD Medical Imaging
DELUXE Portable X-Ray Machine
Portable digital radiography unit with large-diameter caster mobile trolley
Request a Quote
-

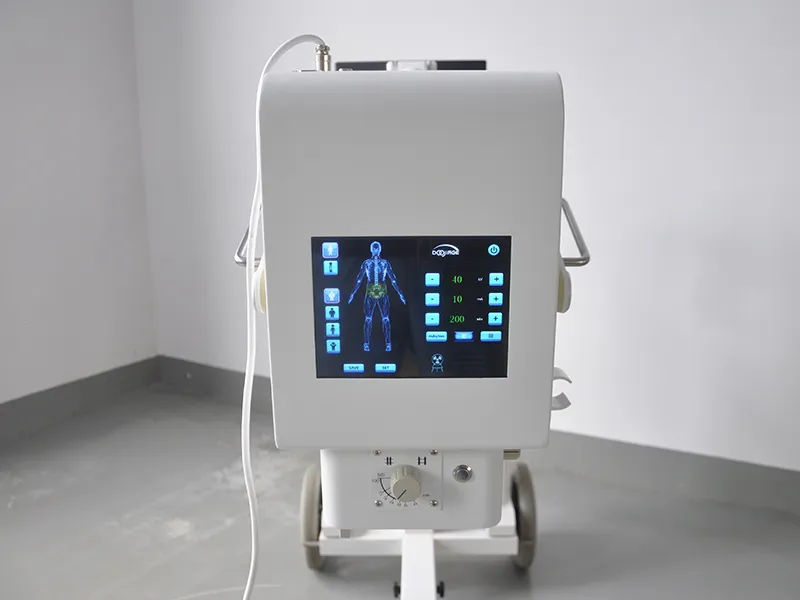

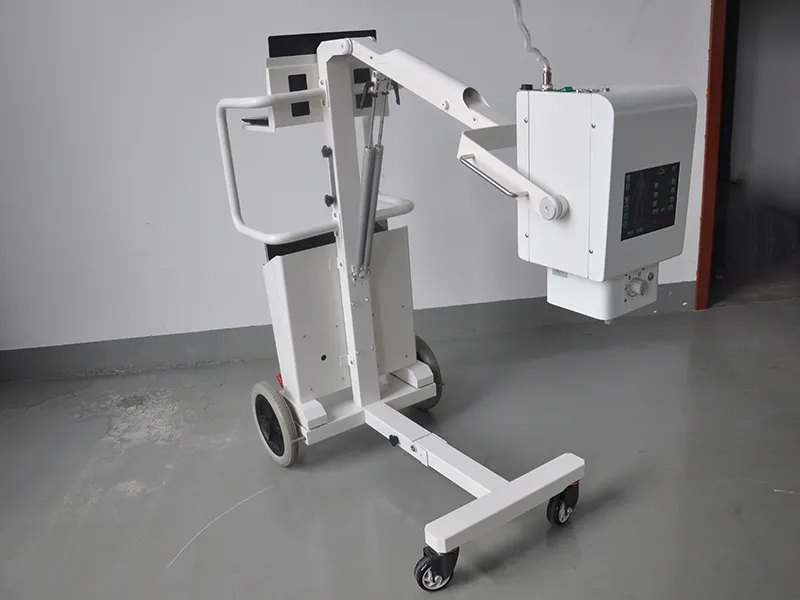

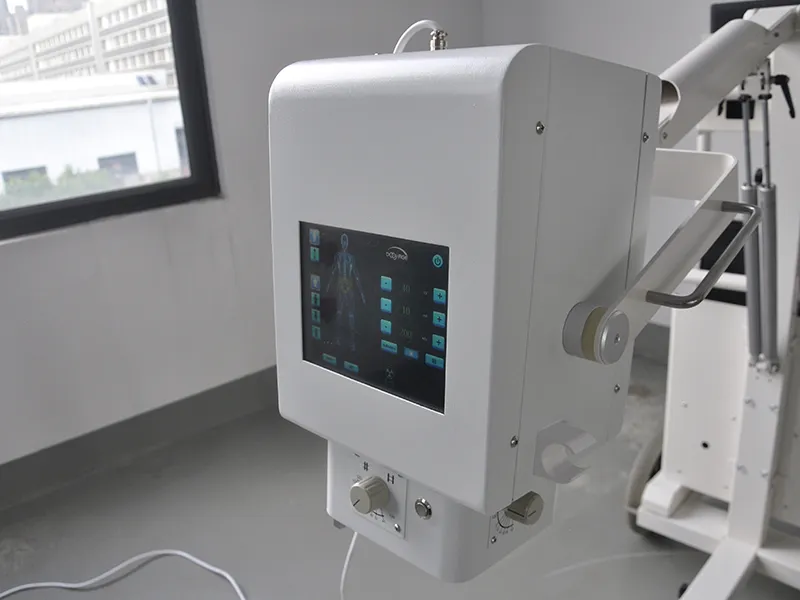

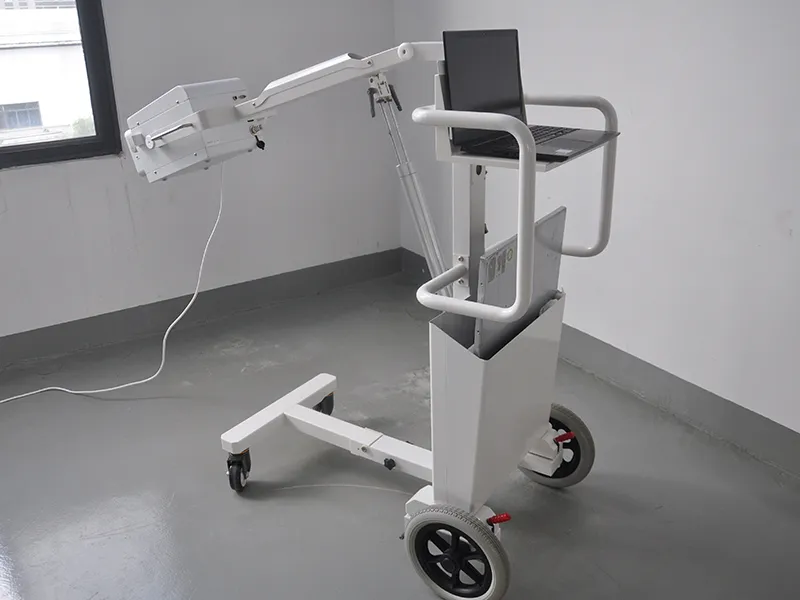

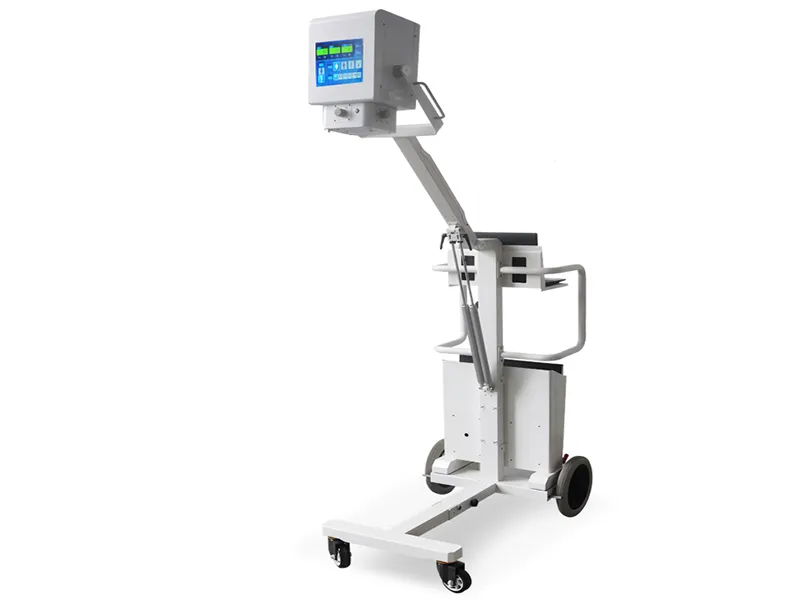

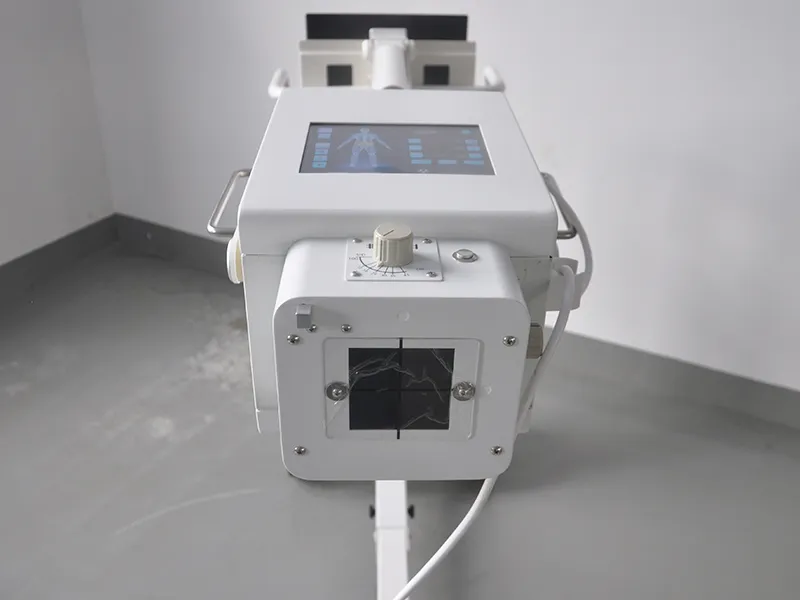

Designed as a trolley-mounted portable radiographic equipment, the DELUXE portable X-ray machine offers 5kW, 5.6kW, and 8kW power options to meet your imaging needs. It features a 10.4-inch color touchscreen, a 17-inch × 17-inch wired flat panel detector, and a 15.6-inch Dell laptop for smooth operation. Designed for enhanced mobility and durability, this portable X-ray machine comes with a premium adjustable trolley that includes a laptop stand and a flat panel detector storage compartment. Unlike the BASIC and UPGRADED X-ray machines, its reinforced large wheels ensure greater stability and easier movement, making it ideal for fast-paced clinical environments.
| Model | | | |
| Power (kW) | 5 | 5.6 (with battery) | 8 |
| High voltage Generator | |||
| kV Range (kV) | 40-110 | 40-125 | 40-125 |
| mAs range (mAs) | 0.2-200 | 0.1-200 | 0.1-200 |
| mA range (mA) | 20-100 | 10-100 | 10-100 |
| Working frequency (kHz) | ≥40 | ||
| Communication mode | RS232 | ||
| Exposure time (s) | 0.01-4 | ||
| Exposure mode | Hand brake, wireless hand remote controller, touch screen button | ||
| X-ray tube | |||
| Anode heat storage (kHU) | 56 | ||
| Focal spot (mm) | 1.8 | ||
| Anode Angle (°C) | 15 | ||
| Collimator | |||
| Power supply | AC/DC 24 V±10% | ||
| Light type | 5W LED | ||
| Light delay time (s) | 30±2 | ||
| Illumination | ≥160Lux | ||
| Inherent filtration | 1.2mmAL@75 kV | ||
| Dimension | |||
| Main head unit (L×W×H) (mm) | 290×265×230 | 425×240×220 | 425×240×220 |
| Net weight (kg) | 19 | 18 | 18 |
| Head screen | 10.4-inch LCD color touch screen | ||
| Trolley height adjustable range | 515-1810 mm (from spot to floor) | ||
The following are the diverse applications of the DELUXE portable X-ray machine across various medical and veterinary fields:
Looking for a portable X-ray machine with superior mobility and performance? Contact us today to learn more about our offer!
Please submit your information to take the first step in finding the radiography equipment solution you need to enhance productivity, adaptability, and patient satisfaction.
Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.
We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.
As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.
