SUPREME Portable X-Ray Machine
Portable digital radiography unit with luxury mobile trolley
Request a Quote
-

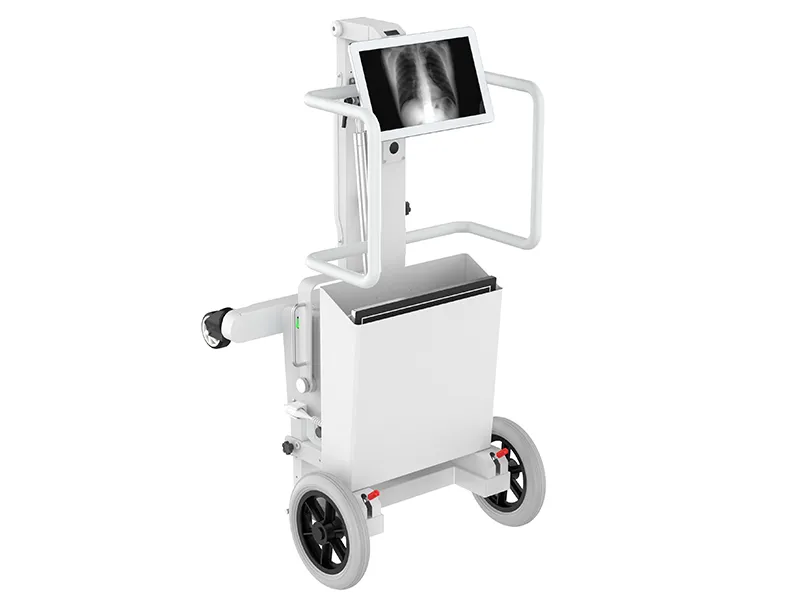

The SUPREME portable X-ray machine is our flagship radiographic equipment, designed for efficiency and ease of use. Offering 5kW, 5.6kW, and 8kW power options, it features an 18.5-inch large color touchscreen with an integrated computer, eliminating the need for a separate laptop for image display.
For enhanced convenience, this portable X-ray machine includes a luxury adjustable trolley with a flat panel detector storage compartment and a 17-inch × 17-inch wired flat panel detector. You can easily control exposures using the wired hand switch, wireless remote, or the touchscreen exposure button.
| Model | | | |
| Power (kW) | 5 | 5.6 (with battery) | 8 |
| High voltage Generator | |||
| kV Range (kV) | 40-110 | 40-125 | 40-125 |
| mAs range (mAs) | 0.2-200 | 0.1-200 | 0.1-200 |
| mA range (mA) | 20-100 | 10-100 | 10-100 |
| Working frequency (kHz) | ≥40 | ||
| Communication mode | RS232 | ||
| Exposure time (s) | 0.01-4 | ||
| Exposure mode | Hand brake, wireless hand remote controller, touch screen button | ||
| X-ray tube | |||
| Anode heat storage (kHU) | 56 | ||
| Focal spot (mm) | 1.8 | ||
| Anode Angle (°C) | 15 | ||
| Collimator | |||
| Power supply | AC/DC 24 V±10% | ||
| Light type | 5W LED | ||
| Light delay time (s) | 30±2 | ||
| Illumination | ≥160 Lux | ||
| Inherent filtration | 1.2mmAL@75 kV | ||
| Dimension | |||
| Main head unit (L×W×H)(mm) | 290×265×230 | 425×240×220 | 425×240×220 |
| Net weight(kg) | 19 | 18 | 18 |
| Head screen | 10.4-inch LCD color touch screen | ||
| Trolley height adjustable range | 515-1810 mm (from spot to floor) | ||
The SUPREME portable X-ray machine is utilized in a variety of medical and veterinary fields, including:
Looking for a high-performance portable X-ray machine with an all-in-one design? Contact us today!
Please submit your information to take the first step in finding the radiography equipment solution you need to enhance productivity, adaptability, and patient satisfaction.
Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.
We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.
As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.
