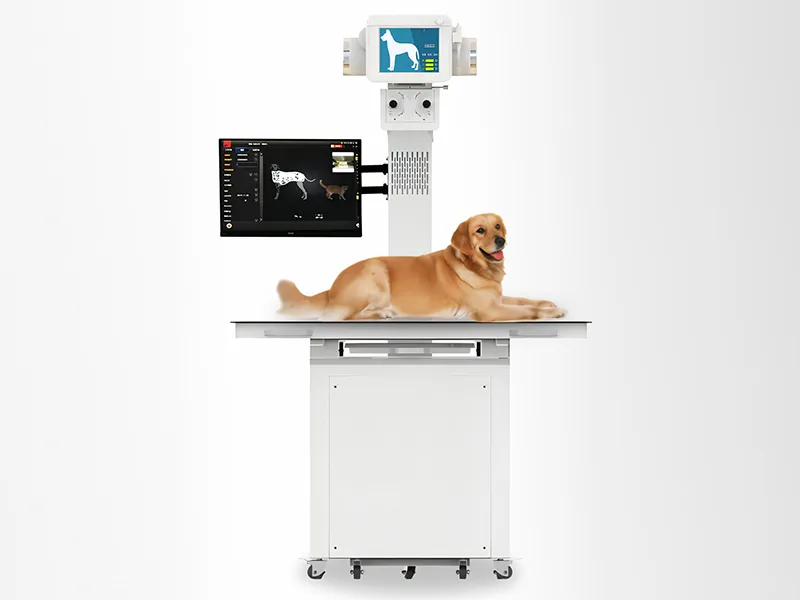

Veterinary X-Ray Machine
Digital radiography system with 23-inch display for stationary veterinary use
Request a Quote
-

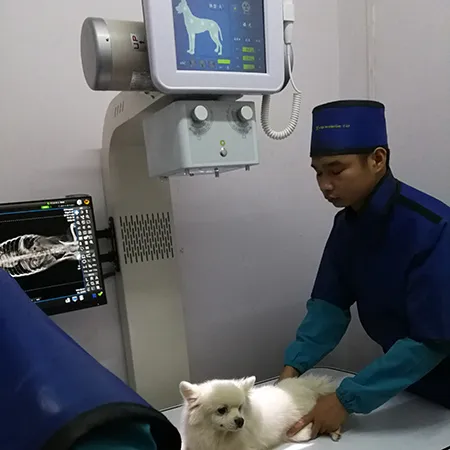

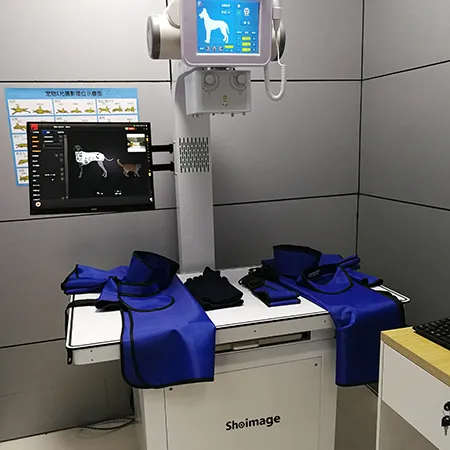

If you’re looking for a veterinary X-ray machine that delivers precision and efficiency, the SHO-MAX X-ray apparatus is designed for pet hospitals and veterinary clinics. With three power options, 20kW & 200mA, 20kW & 320mA, and 32kW & 400mA, you can choose the right level of performance for your practice.

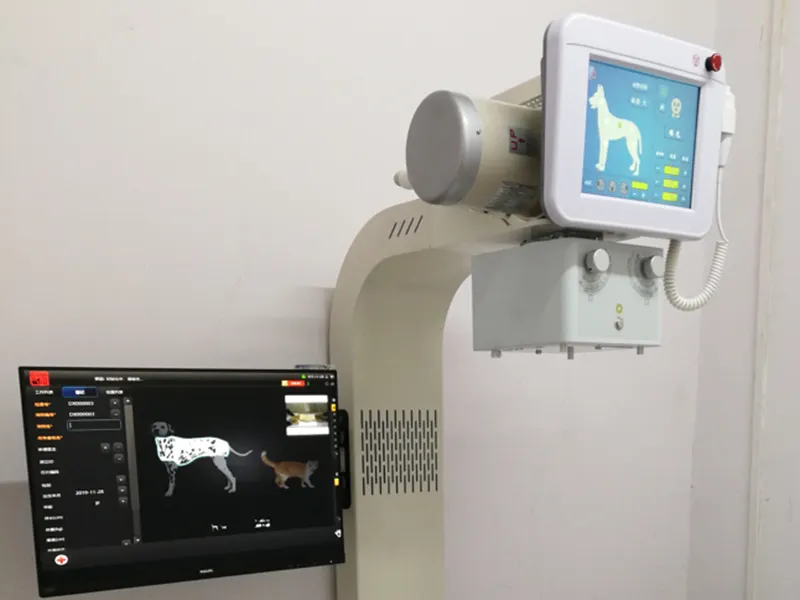

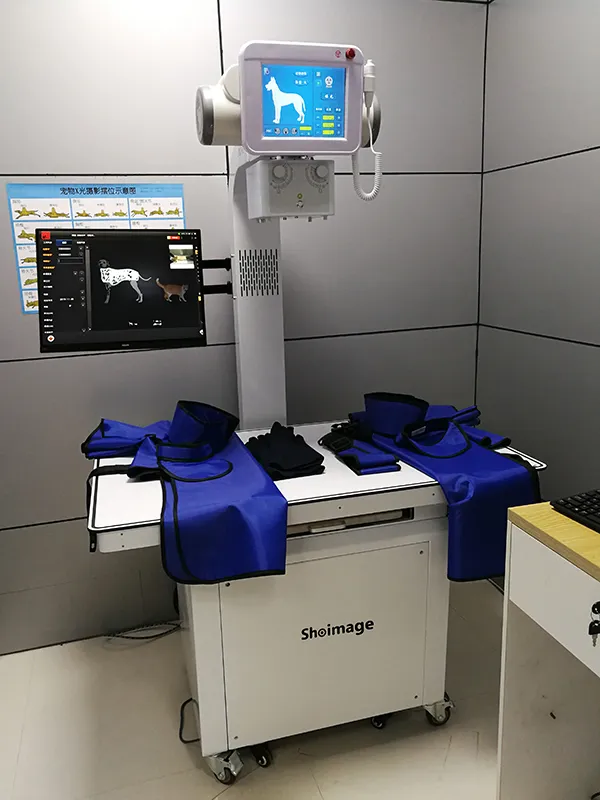

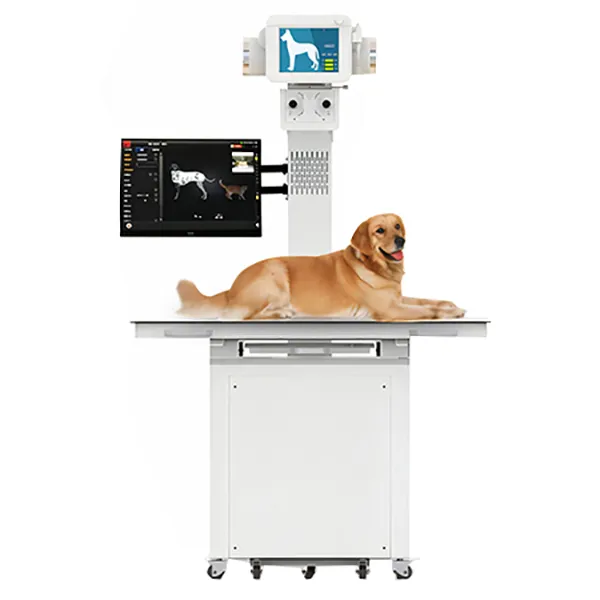

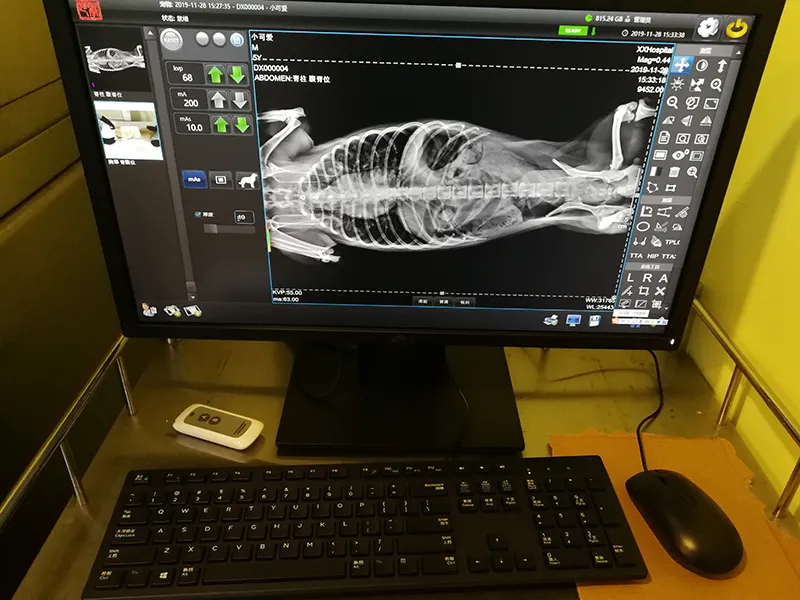

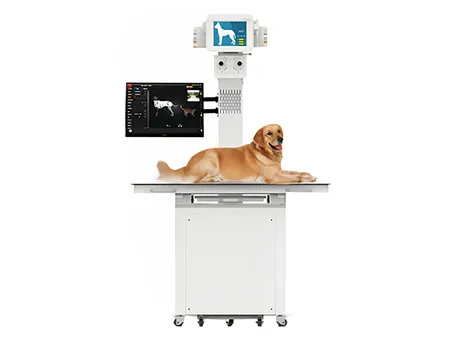

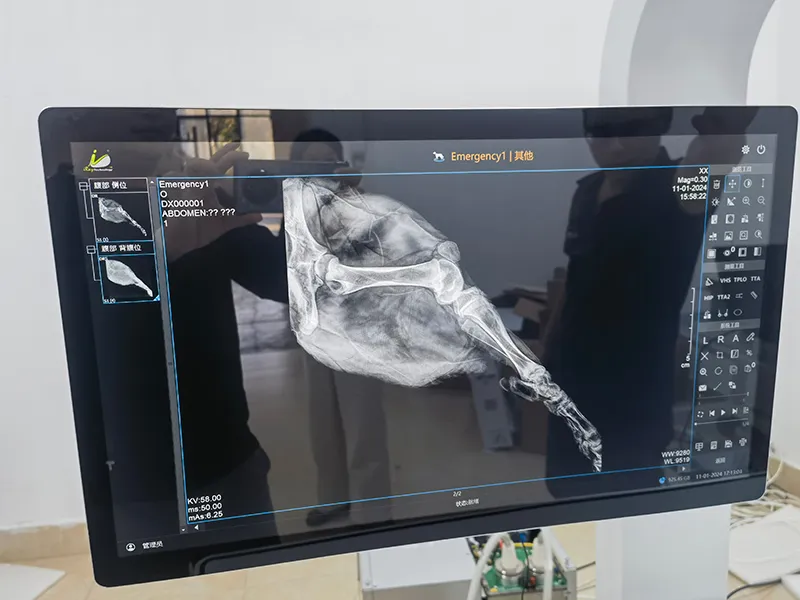

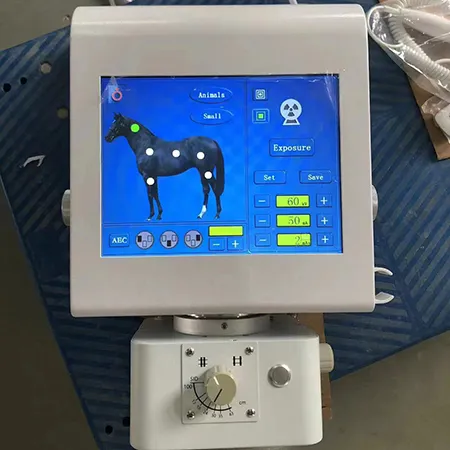

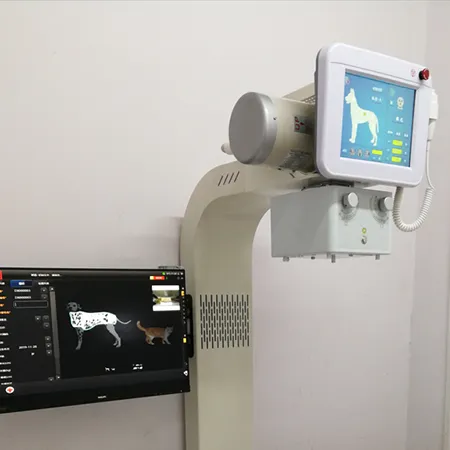

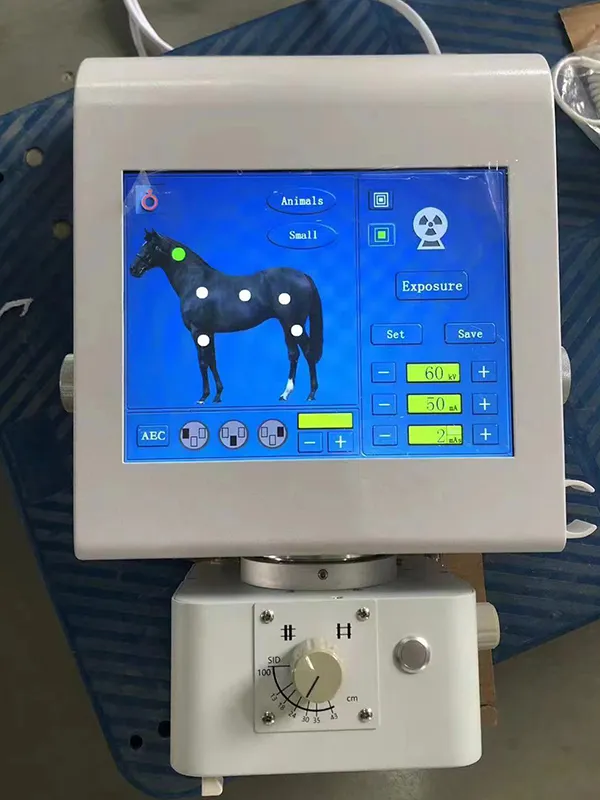

Equipped with an X-ray tube, X-ray generator, radiographic table, and a 17-inch × 17-inch wired flat panel detector, this system provides clear, high-quality imaging for accurate diagnostics. The 23-inch Dell desktop workstation and 23-inch adjustable side screen allow you to review images in real time, making examinations more efficient. For added convenience, you can control exposures using both the hand-brake and foot-pedal functions, ensuring flexibility in different veterinary settings.
| Model | | | |
| X-Ray Generator | |||
| Output Power (kW) | 20 | 20 | 32 |
| Power Voltage (V) | 220+22 | 220+22 | 220+22 |
| kV Range (kV) | 40-120 | 40-120 | 40-125 |
| mAs range (mAS) | 0.32-200 | 0.32-200 | 0.32-400 |
| mA range (mA) | 32-200 | 32-320 | 32-400 |
| Loading time (ms) | 10-4000 | 10-5000 | 10-5000 |
| X-Ray Tube | |||
| Small focus.1.0 | |||
| Large focus:2.0 | |||
| Anode speed:2800 r/min | |||
| Collimator | |||
| Inherent filtration 1.0 mm Al /75 kV | |||
| Light Source Super LED | |||
| Mechanic Table | |||
| SID (mm) | 1000 | ||
| Bearing (kg) | ≤150 | ||
| Top Table Size (mm) | 1220×700×830 | ||
| Floating Table Top Movements Four Ways | |||
Need a veterinary X-ray solution that enhances your workflow and patient care? Contact us today to find the perfect machine for your practice!
Please submit your information to take the first step in finding the radiography equipment solution you need to enhance productivity, adaptability, and patient satisfaction.
Includes TOSHIBA X-ray tubes, Iray flat panel detectors, and Iray image acquisition software for reliable performance and durability.
We offer quick delivery within 4-6 working days, ensuring you receive your equipment as soon as possible.
As a direct supplier, we provide a full two-year warranty, while most other suppliers offer only one-year warranty.
